Neurology & Special Senses Command Center

Master brainstem "Rule of 4s" stroke syndromes, cerebral vascular territories, intracranial hemorrhages, spinal cord transections, cranial nerve palsies, neuro-ophthalmology retinal emergencies, and cranial osteopathic integrations.

Drill Neuro Qbank

Interactive 2K Master Atlas Plate

Brainstem Cross-Sections & The Rule of 4s

Toggle between anatomical reference mode and active self-test quiz mode.

Mode:

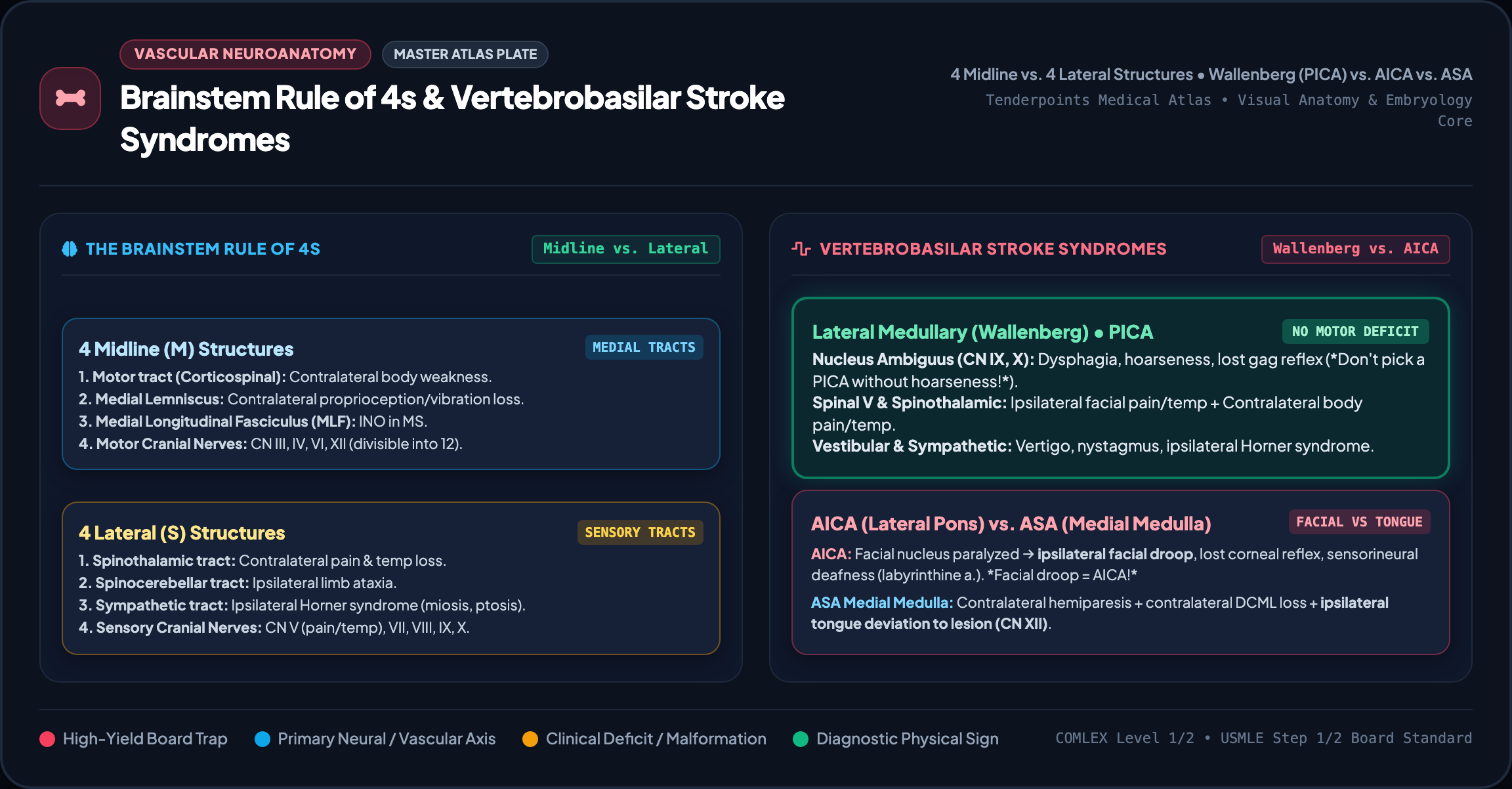

2K Master Plate of Brainstem Anatomy and Stroke Syndromes

Pro-Tip: Brainstem lesions produce crossed deficits: ipsilateral cranial nerve palsy paired with contralateral hemiparesis or hemi-sensory loss.

The Master "Rule of 4s" Architecture

4 Midline Structures (Begin with "M")

1. Motor Pathway (Corticospinal Tract): Contralateral hemiparesis of arm and leg.
2. Medial Lemniscus: Contralateral loss of vibration and proprioception in arm and leg.
3. Medial Longitudinal Fasciculus (MLF): Ipsilateral internuclear ophthalmoplegia (impaired adduction on horizontal gaze).
4. Motor Cranial Nerve Nuclei: Divisible into 12: CN III, IV, VI, XII (Ipsilateral flaccid paralysis).

4 Lateral Structures (Begin with "S")

1. Spinocerebellar Pathway / Peduncles: Ipsilateral limb ataxia and dysmetria.
2. Spinothalamic Tract: Contralateral loss of pain and temperature over body.
3. Sensory Nucleus of CN V (Spinal Trigeminal): Ipsilateral loss of pain and temperature on the face.
4. Sympathetic Pathway: Ipsilateral Horner syndrome (ptosis, miosis, anhidrosis).

4 Cranial Nerves per Brainstem Level

Above Pons (Midbrain & Above) CN I, II, III, IV

Pons CN V, VI, VII, VIII

Medulla CN IX, X, XI, XII

Syndrome	Arterial Supply	Key Nuclei / Structures Damaged	Clinical Presentation	High-Yield Board Clue
Lateral Medullary (Wallenberg)	PICA (Posterior Inferior Cerebellar)	Nucleus ambiguus (CN IX, X), Spinal trigeminal (V), STT, Sympathetics, ICP	Dysphagia, hoarseness, absent gag; ipsilateral facial pain/temp loss; contralateral body pain/temp loss; ipsilateral Horner syndrome; ataxia/vertigo	"Don't pick a (PICA) horse (hoarseness) that can't eat (dysphagia)"
Medial Medullary	Anterior Spinal Artery (ASA)	Corticospinal tract, Medial lemniscus, Hypoglossal nerve (CN XII)	Contralateral hemiparesis (arm & leg); contralateral loss of proprioception/vibration; ipsilateral tongue deviation TOWARD the lesion	Tongue points to the lesion side (LMN XII) + contralateral hemiparesis
Lateral Pontine	AICA (Anterior Inferior Cerebellar)	Facial nucleus (CN VII), Vestibulocochlear (CN VIII), Spinal trigeminal, STT, Sympathetics, MCP	Ipsilateral complete facial paralysis (Bell's type droop); sensorineural deafness & vertigo; ipsilateral facial sensory loss; contralateral body sensory loss; Horner syndrome	"Facial droop means AICA's pooped" (CN VII lesion distinguishes from PICA)
Medial Pontine	Basilar artery paramedian branches	Corticospinal tract, Medial lemniscus, Abducens nerve (CN VI)	Contralateral hemiparesis; contralateral proprioception loss; ipsilateral lateral rectus palsy (eye cannot abduct)	Inability to abduct ipsilateral eye + contralateral body hemiparesis
Weber Syndrome	PCA paramedian midbrain branches	Cerebral peduncle (Corticospinal & Corticobulbar), Oculomotor nerve (CN III)	Ipsilateral CN III palsy ("down and out" eye, ptosis, fixed dilated pupil) + contralateral spastic hemiparesis	Oculomotor (CN III) palsy paired with contralateral hemiplegia
Benedikt Syndrome	PCA branches	CN III fascicles, Red nucleus, Medial lemniscus	Ipsilateral CN III palsy + contralateral tremor, chorea, and ataxia	Red nucleus damage produces contralateral involuntary intention tremors

Non-Contrast Head CT Biconvex / Lenticular

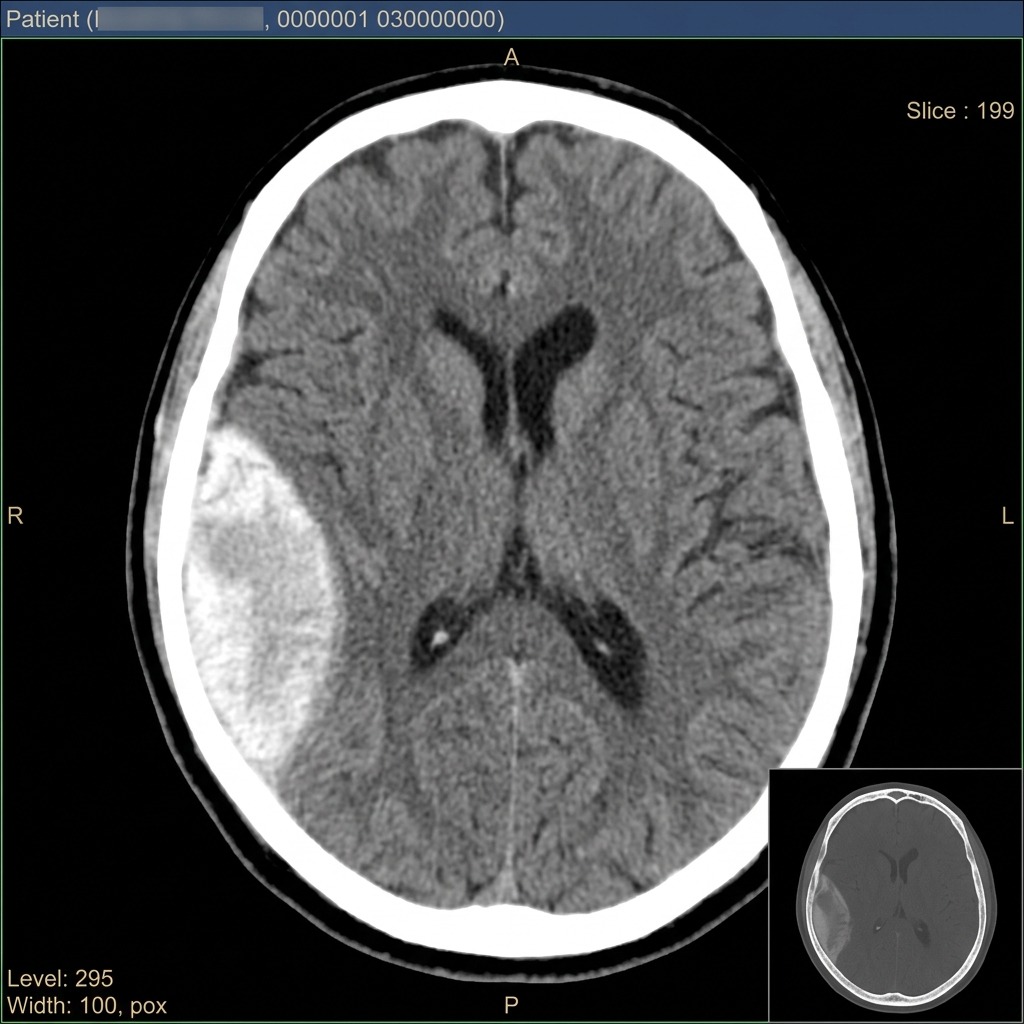

Non-contrast CT showing hyperdense biconvex epidural hematoma

Epidural Hematoma (EDH)

Rupture of the middle meningeal artery (branch of maxillary artery) secondary to pterion fracture. Hyperdense, lenticular (biconvex) collection limited by skull sutures; does not cross suture lines but can cross dural venous sinuses.

Classic Triad: Trauma → Brief loss of consciousness → Lucid interval → Rapid neurological decline (uncal herniation, ipsilateral blown pupil, contralateral hemiparesis). Urgent surgical craniotomy!

Non-Contrast Head CT Crescentic / Concave

Non-contrast CT showing crescentic subdural hematoma

Subdural Hematoma (SDH)

Tearing of the bridging cortical veins that cross the subdural space to drain into the superior sagittal sinus. Crescent-shaped concavity that crosses suture lines, bounded only by dural reflections (falx cerebri and tentorium).

High-Risk Groups: Elderly individuals and chronic alcoholics with cerebral atrophy (taut bridging veins prone to shear injury after minor trauma), and shaken baby syndrome in infants.

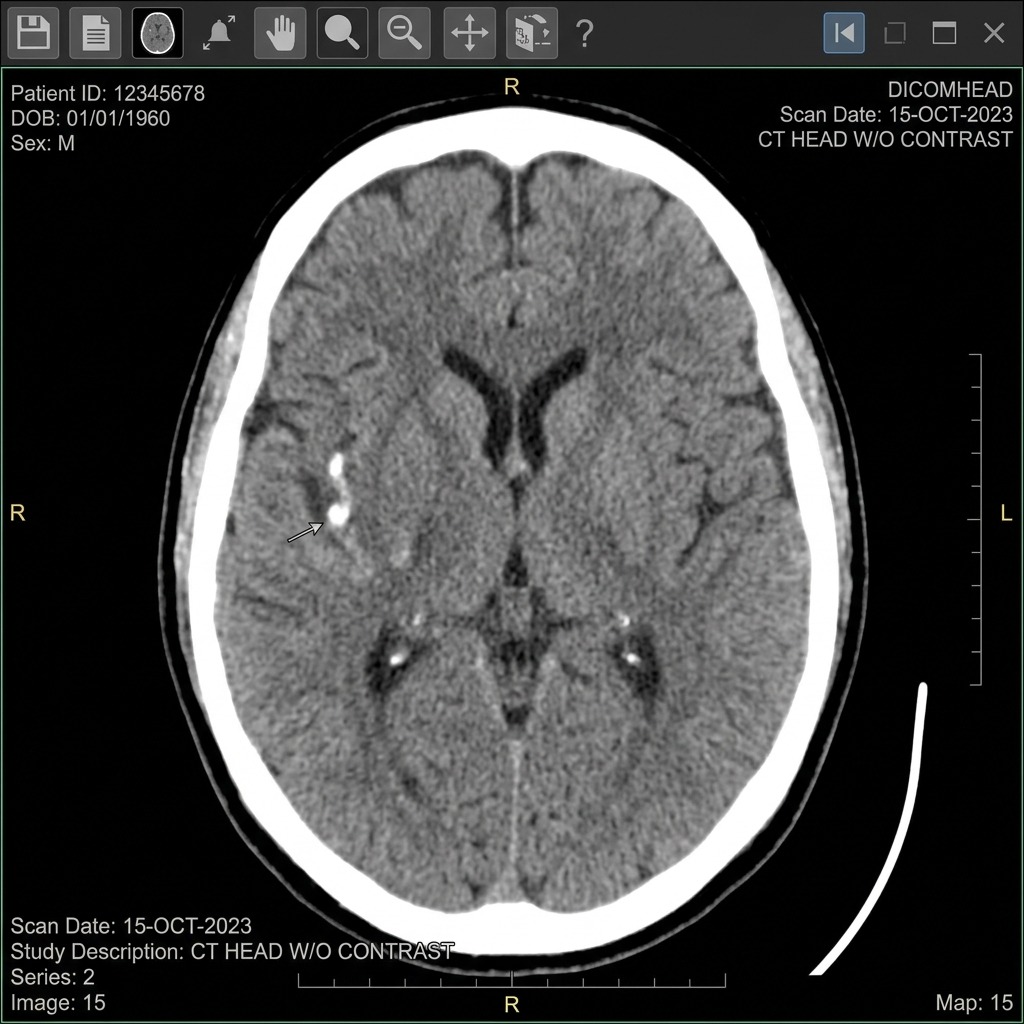

Dense MCA sign on head CT representing acute thromboembolism

Dense MCA Sign: Hyperattenuating acute thrombus inside the M1 segment of the middle cerebral artery prior to visible parenchymal hypodensity.

Cerebral Artery Territory Localization

Acute ischemic strokes are classified by vascular territory. Rapid non-contrast CT excludes hemorrhage. IV thrombolysis (Alteplase / Tenecteplase) within 4.5 hours and mechanical endovascular thrombectomy within 24 hours for large-vessel occlusions.

Middle Cerebral Artery (MCA)

Contralateral face and upper extremity weakness & sensory loss > lower extremity. Aphasia if dominant (left: Broca expressive vs Wernicke receptive). Hemineglect if non-dominant (right parietal). Conjugate eyes turn toward lesion side.

Anterior Cerebral Artery (ACA)

Contralateral lower extremity weakness & sensory loss > upper extremity. Urinary incontinence, abulia (lack of initiative), primitive frontal release reflexes (grasp, suck).

Posterior Cerebral Artery (PCA)

Contralateral homonymous hemianopia with macular sparing (dual collateral circulation from MCA to occipital pole). Alexia without agraphia (involvement of splenium of corpus callosum).

Lacunar Infarctions

Lipohyalinosis and microatheroma of deep penetrating lenticulostriate branches (HTN/DM). Pure motor (posterior limb of internal capsule), pure sensory (thalamus VPL/VPM), or clumsy hand-dysarthria (genu). No cortical signs (no aphasia, no agnosia).

Hemorrhage Type	Vessel Involved	CT Appearance	Suture / Dural Boundaries	Key Board Association
Epidural Hematoma	Middle meningeal artery	Biconvex / lenticular hyperdensity	Does NOT cross suture lines; can cross falx/tentorium	Lucid interval; pterion fracture; CN III compression
Subdural Hematoma	Bridging cortical veins	Crescentic / concave hyperdensity	CROSSES suture lines; limited by falx and tentorium	Cerebral atrophy (elderly, alcoholics); shaken baby
Subarachnoid Hemorrhage	Berry (saccular) aneurysm rupture	Hyperdensity in sulci, cisterns, & sylvian fissure	Subarachnoid space	"Worst headache of life"; xanthochromia; Nimodipine for vasospasm
Intracerebral Hemorrhage	Charcot-Bouchard microaneurysms	Focal hyperdensity in basal ganglia (putamen), thalamus, pons	Parenchymal	Chronic systemic hypertension (#1 etiology); amyloid angiopathy in elderly

Interactive 2K Master Atlas Plate

Spinal Cord Tracts, Radiculopathies & Transections

Toggle between anatomical reference mode and active self-test quiz mode.

Mode:

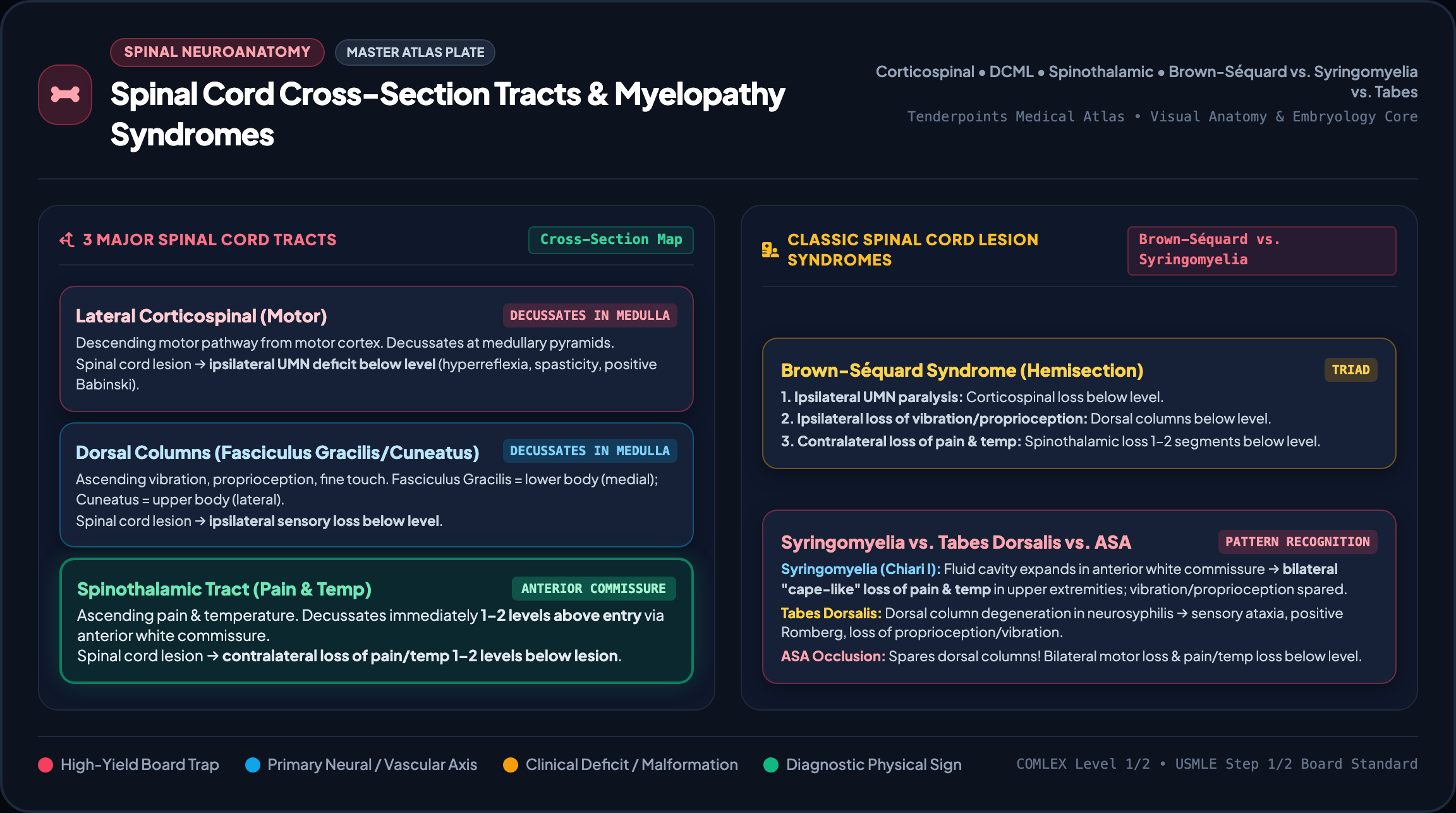

2K Master Plate of Spinal Cord Tracts and Radiculopathies

Pathology Tip: The spinothalamic tract decussates in the anterior white commissure 1–2 segments above entry; dorsal columns decussate in the medulla (internal arcuate fibers).

Histopathology of spinal cord showing demyelination of posterior and lateral columns

Subacute Combined Degeneration: Vacuolar degeneration and myelin loss in dorsal columns and lateral corticospinal tracts.

Subacute Combined Degeneration (SCD)

Caused by Vitamin B12 (cobalamin) deficiency (or copper deficiency). Deficiency leads to impaired myelin synthesis due to methylmalonyl-CoA accumulation. Affects three pathways:

• Dorsal Columns: Impaired proprioception, vibration sense, and sensory ataxia (positive Romberg test).
• Lateral Corticospinal Tracts: Spastic paresis, hyperreflexia, and bilateral positive Babinski signs.
• Spinocerebellar Tracts: Contributes to progressive ataxia and wide-based gait.

Biochemical Hallmarks: Elevated methylmalonic acid (MMA) and elevated homocysteine (folate deficiency has elevated homocysteine but NORMAL MMA and NO neurological symptoms).

Brown-Séquard Syndrome Hemisection

Penetrating trauma (knife/bullet wound) or lateral compression.

Ipsilateral motor: UMN flaccid at level, spastic paralysis below level (CST).
Ipsilateral dorsal column: Loss of vibration/proprioception below level.
Contralateral spinothalamic: Loss of pain & temperature starting 1–2 segments below level.
Horner syndrome: If lesion occurs above T1 (sympathetic interruption).

Anterior Spinal Artery (ASA) Anterior 2/3

Iatrogenic thoracic aortic aneurysm repair or severe hypotension (artery of Adamkiewicz).

Bilateral motor loss: Paraplegia/quadriplegia below lesion (CST).
Bilateral pain/temp loss: Spinothalamic tracts infarcted.
Dorsal columns PRESERVED: Vibration, light touch, and proprioception are completely intact!
Autonomic dysfunction: Loss of bowel and bladder sphincter control.

Syringomyelia Central Canal

Cystic fluid cavity (syrinx) in cervical cord; strongly associated with Chiari I malformation.

"Cape-like" sensory loss: Bilateral loss of pain and temperature across shoulders and arms (anterior white commissure compressed).
Late expansion: Anterior horn cells → LMN hand muscle weakness and atrophy.
Dorsal columns: Sparing of fine touch, vibration, and proprioception.

Amyotrophic Lateral Sclerosis UMN + LMN

Degeneration of anterior horn cells (LMN) and lateral corticospinal tracts (UMN). SOD1 gene.

Combined signs: Hyperreflexia & spasticity (UMN) with muscle atrophy & fasciculations (LMN).
Sensory & Sphincter spared: No sensory deficits, intact bowel/bladder, intact ocular motility.
Pharmacology: Riluzole (decreases glutamate excitotoxicity) and Edaravone.

Tabes Dorsalis Neurosyphilis

Tertiary syphilis demyelination of dorsal roots and posterior columns.

Sensory ataxia: Stamping gait, loss of proprioception/vibration, positive Romberg test.
Lancinating pains: Sudden sharp, shooting pains in lower extremities.
Argyll Robertson pupils: Bilateral small pupils that accommodate to near vision but do NOT react to light.

Cauda Equina vs. Conus Lumbosacral

Critical distinction in lumbosacral spine emergencies.

Conus Medullaris (L1–L2): Sudden onset, symmetric saddle anesthesia, early severe bowel/bladder incontinence, mixed UMN/LMN.
Cauda Equina (L2+ nerve roots): Gradual onset, asymmetric radicular pain and flaccid leg weakness (LMN), absent reflexes, late urinary retention.

Dilated Fundoscopic Exam Cherry-Red Spot

Fundoscopy showing diffuse retinal pallor with cherry red spot in central retinal artery occlusion

Central Retinal Artery Occlusion (CRAO)

Acute thromboembolic occlusion of the central retinal artery (branch of ophthalmic artery ← internal carotid). Causes sudden, painless, severe monocular vision loss.

Pathognomonic Finding: Diffuse ground-glass retinal pallor with a distinct "cherry-red spot" at the fovea (fovea lacks nerve fiber layer; red underlying choroid shines through). Urgent ocular emergency (ocular massage, hyperbaric oxygen).

Dilated Fundoscopic Exam Blood & Thunder

Fundoscopy showing diffuse flame hemorrhages and disc edema in central retinal vein occlusion

Central Retinal Vein Occlusion (CRVO)

Thrombosis of the central retinal vein leading to venous stasis, severe congestion, and diffuse extravasation. Causes variable, subacute or sudden painless vision loss.

Pathognomonic Finding: "Blood and thunder" fundus characterized by extensive flame-shaped retinal hemorrhages in all four quadrants, engorged tortuous veins, cotton-wool spots, and optic disc edema. Associated with HTN, glaucoma, and hypercoagulability.

High-Yield Cranial Nerve Palsies & Neuro-Ophthalmology

CN III (Oculomotor) Palsy Pupil Rule

"Down and out" eye position with severe ptosis (levator palpebrae superioris weakness).

Pupil-Sparing (Reactive pupil): Diabetic / hypertensive microvascular ischemia. Affects inner somatic motor fibers; outer superficial parasympathetics are spared.

Blown Pupil (Mydriasis / Non-reactive): External compressive lesion (Posterior Communicating Artery aneurysm or uncal herniation). Compresses superficial parasympathetic fibers first. Surgical emergency!

CN IV & CN VI Palsies

CN IV (Trochlear - Superior Oblique): Diplopia when looking down and inward (e.g., walking down stairs or reading). Patient tilts head AWAY from affected eye to compensate.
CN VI (Abducens - Lateral Rectus): Inability to abduct the affected eye; causes horizontal diplopia on lateral gaze. Long intracranial course makes it highly sensitive to elevated intracranial pressure (a "false localizing sign").

Horner Syndrome & MLF (INO)

Horner Syndrome Triad: Ptosis (superior tarsal muscle), Miosis (dilator pupillae), and Anhidrosis (sweat glands). Caused by sympathetic chain disruption (Pancoast apical lung tumor, carotid dissection, Wallenberg syndrome).
Internuclear Ophthalmoplegia (INO): MLF lesion uncouples CN VI and CN III. Ipsilateral eye fails to adduct; contralateral eye exhibits horizontal nystagmus during abduction. Convergence is PRESERVED. Bilateral INO is strongly suggestive of Multiple Sclerosis!

Lesion Location	Visual Field Defect	Common Etiology	Mnemonic / Key Mechanism
Optic Nerve	Monocular Anopia (complete blindness in one eye)	Optic neuritis, central retinal artery occlusion	Complete pre-chiasmatic interruption
Optic Chiasm	Bitemporal Hemianopsia (tunnel vision)	Pituitary adenoma, craniopharyngioma, Rathke cleft cyst	Decussating nasal fibers compressed
Optic Tract	Contralateral Homonymous Hemianopia	Anterior choroidal artery infarction, temporal tumor	Complete post-chiasmatic tract loss
Meyer Loop (Temporal Lobe)	Contralateral Upper Quadrantanopia	MCA inferior division stroke, temporal lobe lobectomy	"Pie in the sky" (Temporal = Top)
Baum Loop (Parietal Lobe)	Contralateral Lower Quadrantanopia	MCA superior division stroke, parietal trauma	"Pie on the floor" (Parietal = Pavement)
Primary Visual Cortex (Occipital)	Contralateral Homonymous Hemianopia with MACULAR SPARING	PCA occlusion / infarction	Macular area receives dual collateral supply from MCA

Demyelinating Neuropathies Matrix

Multiple Sclerosis (MS)

CNS Autoimmune

Autoimmune destruction of CNS myelin and oligodendrocytes. Young female (20–40yo) presenting with relapsing-remitting deficits separated in time and space.

• Optic neuritis: Painful vision loss, Marcus Gunn afferent pupil defect.
• Sensory signs: Lhermitte sign (electric shock down spine on neck flexion), Uhthoff phenomenon (worse in hot showers/heat).
• MRI Findings: Periventricular white matter plaques (Dawson fingers).
• CSF Analysis: Oligoclonal IgG bands and elevated myelin basic protein.
• Therapy: High-dose IV methylprednisolone for acute flares; Interferon-β, Glatiramer, or Natalizumab (risk of PML from JC virus).

Guillain-Barré Syndrome (AIDP)

PNS Molecular Mimicry

Autoimmune destruction of peripheral Schwann cell myelin triggered by molecular mimicry after Campylobacter jejuni enteritis, CMV, or influenza.

• Clinical Triad: Symmetrical ascending flaccid paralysis, hyporeflexia/areflexia, and autonomic instability.
• CSF Hall-mark: Albuminocytologic dissociation (markedly high CSF protein with normal white cell count).
• Critical Monitor: Forced vital capacity (FVC) & negative inspiratory force due to diaphragm failure risk.
• Treatment: IVIG or Plasmapheresis. NEVER give systemic steroids (ineffective/harmful).

Movement Disorders & Cognitive Decline

Parkinson Disease

Loss of dopaminergic neurons in substantia nigra pars compacta. Intracellular α-synuclein inclusions (Lewy bodies).

TRAP Triad: Tremor (asymmetric resting "pill-rolling"), Rigidity ("cogwheel"), Akinesia/bradykinesia, and Postural instability. Rx: Levodopa/Carbidopa, dopamine agonists (pramipexole), COMT inhibitors.

Huntington Disease

Autosomal dominant CAG trinucleotide repeat expansion on chromosome 4 (HTT gene). Demonstrates genetic anticipation (paternal).

Neurochemistry: Atrophy of caudate nucleus and putamen (striatum) with dilated lateral ventricles. Decreased GABA, decreased ACh, increased dopamine. Chorea, depression, aggression, and progressive dementia.

Alzheimer Disease vs. Normal Pressure Hydrocephalus (NPH)

Alzheimer: Extracellular amyloid-β plaques and intracellular hyperphosphorylated tau neurofibrillary tangles. Hippocampal atrophy. APOE ε4 risk.

NPH: "Wet, Wacky, Wobbly" triad: Urinary incontinence, Dementia, and Magnetic gait apraxia. Normal opening pressure on lumbar puncture; reversible with ventriculoperitoneal (VP) shunt.

Master Headache Differential & Emergency Protocols

Headache Type	Pain Quality & Location	Duration & Triggers	Associated Symptoms	First-Line Abortive & Prophylactic Rx
Migraine	Unilateral, throbbing / pulsating	4–72 hours; stress, foods, hormones	Photophobia, phonophobia, nausea, visual aura (scotoma)	Abortive: Triptans (5-HT1B/1D), NSAIDs. Prophylaxis: Propranolol, Topiramate, CGRP antagonists.
Cluster Headache	Severe unilateral periorbital / retro-orbital sharp boring pain	15–180 minutes; clusters for weeks; male > female	Ipsilateral lacrimation, rhinorrhea, Horner syndrome, conjunctival injection	Abortive: 100% High-Flow O2, sumatriptan SC. Prophylaxis: Verapamil.
Tension Headache	Bilateral "band-like" dull constricting pressure	30 min to days; sustained posture/stress	No photophobia, no nausea, pericranial muscle tenderness	Abortive: NSAIDs, acetaminophen. Prophylaxis: Amitriptyline.
Giant Cell (Temporal) Arteritis	Unilateral temporal headache with scalp tenderness	Subacute; elderly female (>50yo)	Jaw claudication, polymyalgia rheumatica, amaurosis fugax	Emergency: High-dose systemic steroids (Methylprednisolone/Prednisone) IMMEDIATELY to prevent irreversible blindness, then temporal artery biopsy.

Interactive Board Simulation & Case Solver

High-yield board vignettes testing stroke localization, spinal cord transections, cranial emergencies, and cranial osteopathic considerations.

Case Vignette 1 • Stroke Localization COMLEX / USMLE Item

A 62-year-old male with long-standing hypertension presents with sudden onset of severe vertigo, unsteadiness, difficulty swallowing, and hoarseness. Neurological examination reveals right-sided ptosis and miosis, loss of pinprick sensation on the right side of his face and the left arm and leg, and right-sided limb dysmetria. Uvula deviates to the left when he says "ah," and his gag reflex is absent on the right. Motor strength is 5/5 in all four extremities.

Which of the following arteries is most likely occluded?

A. Anterior spinal artery (ASA)
B. Posterior inferior cerebellar artery (PICA)
C. Anterior inferior cerebellar artery (AICA)
D. Superior cerebellar artery (SCA)
E. Middle cerebral artery (MCA)

Case Vignette 2 • Traumatic Brain Injury Emergency Medicine

A 21-year-old collegiate hockey player is checked into the boards and strikes his right temple. He experiences a brief loss of consciousness for approximately 30 seconds. On the bench, he awakens and insists he feels fine. Two hours later in the locker room, he develops an excruciating headache, vomits twice, and becomes progressively somnolent. On arrival to the ED, his right pupil is 6 mm and sluggishly reactive, while his left pupil is 3 mm and briskly reactive. He exhibits left-sided pronator drift and a positive left Babinski reflex.

What is the most likely finding on emergent non-contrast head CT?

A. Crescent-shaped hyperdensity crossing cranial suture lines
B. Biconvex, lens-shaped hyperdensity bounded by suture lines
C. Hyperdensity within the basal cisterns and sylvian fissure
D. Wedge-shaped cortical hypodensity with loss of gray-white differentiation
E. Bilateral petechial hemorrhages at the gray-white junction

Case Vignette 3 • Ophthalmology Emergency Special Senses

A 73-year-old female with a history of carotid stenosis and hyperlipidemia experiences sudden, painless loss of vision in her right eye while drinking her morning coffee. She describes it as "a black curtain descending instantly." Fundoscopic examination reveals a diffusely pale, opaque retina with attenuated arterioles and a bright red spot centered at the macula. Visual acuity is limited to light perception only in the right eye.

What is the most likely diagnosis?

A. Retinal detachment with macula-off tear
B. Central retinal vein occlusion (CRVO)
C. Central retinal artery occlusion (CRAO)
D. Wet age-related macular degeneration (AMD)
E. Open-angle glaucoma crisis

Case Vignette 4 • Spinal Cord Localization Spinal Pathology

A 34-year-old male with neck stiffness following a motor vehicle collision undergoes cervical spine MRI, which incidentally identifies an expanding cystic cavity within the central canal extending from C5 to T1. On physical examination, he demonstrates bilateral loss of pain and temperature sensation across both shoulders and down both upper extremities in a shawl-like distribution. Light touch, vibration, and joint position sensation in both upper and lower extremities are completely normal.

Which neural structure was primarily damaged to cause this sensory pattern?

A. Fasciculus cuneatus
B. Anterior white commissure
C. Lateral corticospinal tract
D. Dorsal root ganglion
E. Substantia gelatinosa

Case Vignette 5 • Neuro-Immunology & Cranial OMM Demyelinating Disease

A 29-year-old female presents with a 4-day history of painful right eye movements and progressive blurred vision. Physical exam reveals an afferent pupillary defect in the right eye (Marcus Gunn pupil). On horizontal gaze to the left, her right eye fails to adduct past the midline, while her left eye displays coarse horizontal nystagmus. However, when she is asked to focus on her finger held 6 inches from her nose, both eyes adduct briskly and symmetrically.

What is the anatomical structure involved in her ocular motility deficit?

A. Right oculomotor nerve (CN III) in cavernous sinus
B. Left abducens nucleus (CN VI) in dorsal pons
C. Right medial longitudinal fasciculus (MLF) in brainstem
D. Left frontal eye field (Brodmann area 8)
E. Edinger-Westphal nucleus
