Renal & Acid-Base Medicine Command Center
High-yield nephrology board preparation, complete nephritic vs. nephrotic syndrome biopsy profiles, Winter's formula and acid-base nomograms, prerenal vs. intrinsic AKI differentiation, urinary cast microscopy, and diuretic nephron site dynamics.
The Nephritic Syndrome Master Spectrum
Immune complex deposition or direct antibody binding activates complement → recruitment of neutrophils and monocytes → breaks in glomerular basement membrane (GBM).
- • Dysmorphic RBCs & RBC Casts: Pathognomonic for glomerular bleeding.
- • Oliguria & Azotemia: GFR drops due to inflammatory capillary occlusion.
- • Hypertension & Periorbital Edema: Secondary to renal sodium and water retention.
- • Sub-nephrotic Proteinuria: Typically < 3.5 g/24 hours.

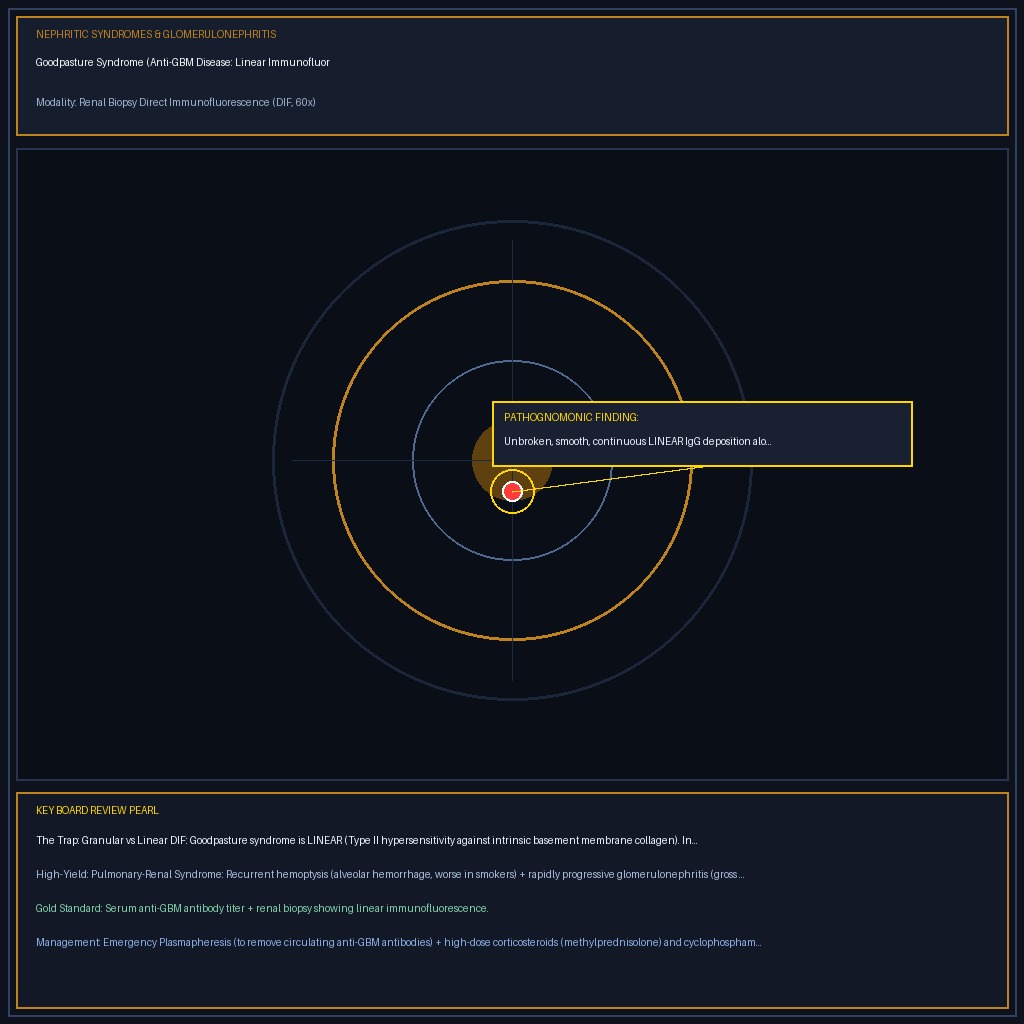

Goodpasture Syndrome: Linear Anti-GBM
Molecular Target: Autoantibodies directed against the α3 chain of Type IV collagen in glomerular and alveolar basement membranes.
Clinical Presentation: Pulmonary-renal syndrome with hemoptysis (alveolar hemorrhage) and rapidly progressive glomerulonephritis (hematuria, oliguria, acute renal failure).
Biopsy Key: Smooth, ribbon-like linear IgG and C3 deposition on direct immunofluorescence (DIF). Rapidly forms cellular crescents (RPGN); treat urgently with plasmapheresis + corticosteroids + cyclophosphamide.
RPGN: Cellular Crescents
Crescent Composition: Proliferating parietal epithelial cells, macrophages, and fibrin deposition within Bowman's space.
The 3 RPGN Immunofluorescence Types:
- • Type I (Linear): Anti-GBM / Goodpasture syndrome.
- • Type II (Granular): Immune complex (Lupus nephritis Class IV diffuse proliferative, PSGN).
- • Type III (Pauci-Immune): ANCA-positive vasculitides (Granulomatosis with Polyangiitis c-ANCA/PR3; Microscopic Polyangiitis p-ANCA/MPO). Negative IF staining!
The Nephrotic Syndrome Master Spectrum
| Disease Entity | Light Microscopy (LM) | Immunofluorescence (IF) | Electron Microscopy (EM) | Associations & Key Features |
|---|---|---|---|---|
| Minimal Change Disease (MCD) | Normal glomeruli; lipid accumulation in PCT cells ("lipoid nephrosis"). | Negative (No immune deposits). | Diffuse effacement of podocyte foot processes. | #1 cause in children; triggered by URI/immunization or Hodgkin lymphoma; selective albuminuria; dramatic response to Corticosteroids! |
| Focal Segmental (FSGS) | Focal (<50% glomeruli) and segmental (portion of tuft) sclerosis and hyalinosis. | Negative or non-specific IgM/C3 in sclerotic areas. | Diffuse podocyte foot process effacement. | #1 cause in African Americans & Hispanics; HIV infection (collapsing variant), heroin abuse, massive obesity, sickle cell, interferon; poor response to steroids → ESRD. |
| Membranous Nephropathy | Diffuse capillary loop and GBM thickening without hypercellularity. | Granular IgG and C3 along capillary walls. | "Spike and dome" appearance of subepithelial deposits. | #1 cause in Caucasian adults; primary is autoimmune against phospholipase A2 receptor (anti-PLA2R); secondary to HBV, HCV, solid tumors (lung, colon), SLE, NSAIDs, penicillamine; high risk of renal vein thrombosis! |
| Diabetic Nephropathy | Mesangial expansion, GBM thickening, and nodular glomerulosclerosis (Kimmelstiel-Wilson lesions). | Negative. | Marked uniform thickening of the GBM. | Non-enzymatic glycation of efferent arterioles → efferent arteriolar hyalinosis → high intraglomerular pressure → hyperfiltration and microalbuminuria; ACE inhibitors / ARBs are renoprotective! |
| Renal Amyloidosis | Amorphous eosinophilic expansion in mesangium and vessel walls. | Negative or AL/AA staining. | Randomly arranged non-branching 10 nm fibrils. | Congo red stain demonstrates pathognomonic apple-green birefringence under polarized light. AL amyloid (multiple myeloma / light chain) vs. AA amyloid (chronic RA, osteomyelitis). |
Membranous Nephropathy: Spike and Dome
Silver Methenamine Stain: Subepithelial immune deposits do not take up silver stain, whereas new basement membrane matrix laid down between deposits stains dark black, creating the classic "spike and dome" pattern.
Hypercoagulability Pearl: Loss of antithrombin III in the urine puts membranous nephropathy patients at highest risk for renal vein thrombosis (sudden flank pain, gross hematuria, and acute decline in GFR).
Renal Amyloidosis: Apple-Green Birefringence
Biophysical Property: Cross-beta pleated sheet secondary protein structure binds Congo red dye molecules in an aligned orientation; under cross-polarized light, this produces striking apple-green birefringence.
Associated Findings: Macroglossia, periorbital purpura ("raccoon eyes"), restrictive cardiomyopathy, carpal tunnel syndrome, hepatomegaly.
Winter's Formula & Anion Gap Mechanics
Winter's Formula Decision Tree
Whenever primary metabolic acidosis is identified (pH < 7.35 and HCO3- < 22), you MUST apply Winter's formula to evaluate respiratory compensation:
- • Actual PaCO2 = Expected: Simple metabolic acidosis with appropriate respiratory compensation.
- • Actual PaCO2 > Expected: Concomitant Respiratory Acidosis (e.g., respiratory depression, severe hypoventilation, CNS depression).
- • Actual PaCO2 < Expected: Concomitant Respiratory Alkalosis (e.g., early salicylate toxicity, sepsis, pain/anxiety).
Serum Anion Gap & Delta-Delta
Anion Gap = [Na+] - ([Cl-] + [HCO3-]) • Normal: 8–12 mEq/L
High Anion Gap (> 12): MUDPILES
M: Methanol (formic acid, optic disc edema/blindness)
U: Uremia (advanced renal failure, phosphate/sulfate retention)
D: DKA / Alcoholic ketoacidosis (beta-hydroxybutyrate)
P: Propylene glycol (IV lorazepam infusions)
I: Isoniazid / Iron
L: Lactic acidosis (shock, sepsis, metformin, bowel ischemia)
E: Ethylene glycol (oxalic acid, envelope crystals, acute tubular necrosis)
S: Salicylates (mixed respiratory alkalosis + high AG metabolic acidosis)
Renal Countercurrent Multiplication & Tubular Acid-Base Transport
Inability of α-intercalated cells to secrete H+ → urine pH > 5.5 despite systemic metabolic acidosis. Associated with hypokalemia, autoimmune disease (Sjögren), amphotericin B, and bilateral calcium phosphate nephrolithiasis / nephrocalcinosis (alkaline urine precipitates phosphate).
Defect in proximal tubular HCO3- reabsorption → early HCO3- wasting, but distal tubule can still acidify urine once serum bicarbonate drops → urine pH < 5.5. Associated with hypokalemia and Fanconi syndrome (glucosuria, aminoaciduria, phosphaturia, tenofovir/multiple myeloma).
Hypoaldosteronism or aldosterone resistance → HYPERKALEMIA (the ONLY hyperkalemic RTA!). Hyperkalemia impairs renal ammoniagenesis in PCT → ↓ NH4+ buffer excretion → metabolic acidosis with urine pH < 5.5. Classic in diabetic nephropathy (hyporeninemic hypoaldosteronism) and ACEi/ARBs/spironolactone.
Acute Kidney Injury (AKI) Diagnostic Matrix
| Diagnostic Parameter | Prerenal Azotemia | Intrinsic AKI (Acute Tubular Necrosis) | Postrenal (Urinary Obstruction) | Physiological Pivot Point |
|---|---|---|---|---|
| BUN / Serum Creatinine Ratio | > 20 : 1 | < 15 : 1 | Variable (>20 early → <15 late) | High aldosterone & slow tubular flow maximize passive urea reabsorption in PCT, spiking BUN out of proportion to creatinine in prerenal states! |
| Fractional Excretion of Sodium (FeNa) | < 1% (Intact tubular reabsorption) | > 2% (Tubular epithelial necrosis) | Variable (>2% if chronic obstruction) | FeNa = (U_Na × S_Cr) / (S_Na × U_Cr) × 100. < 1% means tubular cells are alive and avidly conserving sodium! |
| Fractional Excretion of Urea (FeUrea) | < 35% | > 50% | Variable | Gold standard test if patient is on loop diuretics! (Diuretics falsely elevate FeNa, but FeUrea remains accurate). |
| Urine Sodium (U_Na) | < 20 mEq/L | > 40 mEq/L | > 40 mEq/L | Dead necrotic tubular cells cannot reabsorb sodium, causing salt wasting into the urine in ATN. |
| Urine Osmolality | > 500 mOsm/kg (Concentrated) | < 350 mOsm/kg (Isosthenuria) | < 350 mOsm/kg | Isosthenuria (~300 mOsm/kg, identical to plasma) indicates loss of the medullary hypertonic gradient in ATN. |
| Urine Sediment Microscopy | Hyaline casts or bland sediment | "Muddy brown" granular casts | Normal or crystals / hematuria | Sloughed necrotic proximal tubular and thick ascending limb cells form pigmented granular casts in ATN. |
High-Yield Urinalysis Cast Gallery
Diagnostic For: Acute Tubular Necrosis (ATN).
Etiologies: Ischemic (shock, sepsis) targeting straight PCT and thick ascending limb (medulla receives lowest blood supply); Nephrotoxic (aminoglycosides, iodinated IV contrast, cisplatin, myoglobin in rhabdomyolysis).
Diagnostic For: Glomerulonephritis (Nephritic Syndrome).
Etiologies: Post-streptococcal GN, IgA nephropathy, Goodpasture syndrome, Granulomatosis with polyangiitis (GPA), Lupus nephritis. Establishes that hematuria is of GLOMERULAR origin (rules out bladder/ureteral bleeding!).
Diagnostic For: Acute Pyelonephritis & AIN.
Distinguishes upper tract infection (Acute Pyelonephritis with flank pain and fever) from lower tract cystitis (which has WBCs but NO casts!). Also seen in Acute Interstitial Nephritis (AIN) triggered by NSAIDs, PPIs, penicillins (with urine eosinophils).
Nephron Tubular Transporters & Diuretic Master Matrix
| Diuretic Class | Anatomical Site | Target Transporter | Urinary Electrolyte Changes | Classic Board Toxicity & Indications |
|---|---|---|---|---|
| Carbonic Anhydrase Inhibitors (Acetazolamide) | Proximal Convoluted Tubule (PCT) | Carbonic Anhydrase (CA) | ↑ HCO3-, ↑ Na+, ↑ K+; ↓ H+ | Altitude sickness (stimulates ventilation via metabolic acidosis), glaucoma, idiopathic intracranial hypertension (pseudotumor cerebri); toxicity: Hyperchloremic metabolic acidosis, calcium phosphate stones. |
| Loop Diuretics (Furosemide, Bumetanide, Torsemide) | Thick Ascending Limb (TAL) of Henle | Na+/K+/2Cl- Cotransporter (NKCC2) | ↑↑ Na+, ↑↑ Cl-, ↑ K+, ↑ Ca2+ (Hypocalcemia), ↑ Mg2+ | Abolishes medullary hypertonicity; #1 for acute pulmonary edema & heart failure; toxicity: Ototoxicity, Hypokalemia, Hypomagnesemia, Hypocalcemia ("Loops Lose Calcium"), Hyperuricemia, sulfa allergy (use Ethacrynic acid if sulfa allergic!). |
| Thiazide Diuretics (HCTZ, Chlorthalidone) | Early Distal Convoluted Tubule (DCT) | Na+/Cl- Cotransporter (NCCT) | ↑ Na+, ↑ Cl-, ↑ K+; ↓ Ca2+ (Hypercalcemia) | #1 for essential hypertension & recurrent calcium oxalate kidney stones (decreases urinary Ca2+ wasting); toxicity: HyperGLUC (Glucose, Lipids, Uric acid / gout, Calcium), Hyponatremia, Hypokalemic metabolic alkalosis. |
| K+-Sparing: Aldosterone Antagonists (Spironolactone, Eplerenone) | Cortical Collecting Duct (Principal Cells) | Mineralocorticoid Receptor | ↑ Na+; ↓ K+, ↓ H+ | Heart failure GDMT (reduces mortality), Conn syndrome, cirrhosis ascites; toxicity: Hyperkalemia, normal AG metabolic acidosis; Spironolactone causes gynecomastia (switch to Eplerenone, a selective antagonist). |
| K+-Sparing: ENaC Blockers (Amiloride, Triamterene) | Cortical Collecting Duct (Principal Cells) | Epithelial Na+ Channel (ENaC) | ↑ Na+; ↓ K+, ↓ H+ | Used in Liddle syndrome (constitutively active ENaC causing HTN and hypokalemia) and Lithium-induced nephrogenic DI (Amiloride blocks lithium entry into principal cells!). |
| SGLT2 Inhibitors (Empagliflozin, Dapagliflozin) | Early Proximal Convoluted Tubule (PCT) | Sodium-Glucose Cotransporter 2 | ↑ Glucose, ↑ Na+ (Osmotic diuresis) | First-line in diabetic kidney disease & HFrEF (delays CKD progression and reduces HF hospitalizations); toxicity: Mycotic genital infections (candidiasis), UTIs, euglycemic DKA. |
Kidney Stone Crystal Morphology & Pathophysiology
| Stone Type | Crystal Morphology | Radiopacity | Urine pH | Etiologies & Board Pearls |
|---|---|---|---|---|
| Calcium Oxalate (75–80%) | Envelope or Dumbbell shape | Radiopaque (Visible on X-ray) | Acidic or Normal (< 6.5) | #1 overall stone. Idiopathic hypercalciuria (with normocalcemia); Crohn disease / malabsorption (fat saponifies Ca2+, freeing unabsorbed oxalate for hyperabsorption); ethylene glycol toxicity; treat with Thiazides and dietary citrate. |
| Calcium Phosphate (10%) | Wedge-shaped prism / rosette | Radiopaque (Visible on X-ray) | Alkaline (> 6.5) | Classic association: Type 1 Renal Tubular Acidosis (Distal RTA) and Primary Hyperparathyroidism. |
| Struvite (Mg-NH4-PO4) (10–15%) | "Coffin-lid" prism | Radiopaque | Alkaline (> 7.0) | Caused by urease-positive bacteria (Proteus mirabilis, Klebsiella, Serratia); urease hydrolyzes urea to ammonia, spiking urine pH → precipitates into massive Staghorn calculi filling renal pelvis and calyces; requires surgical percutaneous nephrolithotomy. |
| Uric Acid (5%) | Rhomboid or rosette | Radiolucent (INDEPENDENT of X-ray!) | Acidic (< 5.5) | Invisible on plain KUB abdominal X-ray (visible only on CT or US); gout, leukemia / tumor lysis syndrome; alkalinize urine with Potassium Citrate and treat with Allopurinol. |
| Cystine (1%) | Hexagonal crystals ("6 sides") | Faintly Radiopaque (Ground-glass) | Acidic (< 5.5) | Autosomal recessive defect in renal proximal tubule transporter for COLA (Cystine, Ornithine, Lysine, Arginine); presents in children; positive Sodium Cyanide-Nitroprusside test (purple color); treat with urine alkalinization and penicillamine. |
Autosomal Dominant Polycystic Kidney Disease (ADPKD)
Genetics: Autosomal dominant mutations in PKD1 (85%, chromosome 16) encoding polycystin-1, or PKD2 (15%, chromosome 4) encoding polycystin-2.
Presentation: Adult (age 30–50) with bilateral palpable flank masses, flank pain, hematuria, hypertension (cyst expansion compresses intrarenal vasculature → local ischemia → RAAS activation), and progressive renal failure.
Extrarenal Complications: Berry aneurysms in Circle of Willis (subarachnoid hemorrhage risk), hepatic cysts, mitral valve prolapse (MVP), and colonic diverticulosis.
Horseshoe Kidney: IMA Entrapment
Embryological Arrest: Conjoined lower poles of metanephroi fail to ascend past the root of the Inferior Mesenteric Artery (IMA) at vertebral level L3.
Associated Conditions: Turner syndrome (45,XO), Trisomies 13, 18, and 21. Normal renal function, but prone to ureteropelvic junction (UPJ) obstruction, hydronephrosis, and recurrent nephrolithiasis.
High-Yield Renal & Acid-Base Board Challenges
A 21-year-old female with type 1 diabetes is brought to the emergency department obtunded with deep, rapid respirations (Kussmaul breathing) and fruity breath. Point-of-care fingerstick glucose is 520 mg/dL. Arterial blood gas reveals: pH 7.15, PaCO2 24 mmHg, and HCO3- 8 mEq/L. Serum chemistry shows: Na+ 134 mEq/L, K+ 5.2 mEq/L, and Cl- 96 mEq/L. Evaluate her respiratory compensation using Winter's formula and calculate her serum anion gap.
Winter's Formula Calculation:
Expected PaCO2 = 1.5 × [HCO3-] + 8 ± 2 = 1.5 × (8) + 8 ± 2 = 12 + 8 ± 2 = 20 ± 2 mmHg (Range: 18–22 mmHg).
Interpretation:
Actual PaCO2 is 24 mmHg, which is higher than the expected range (18–22). This establishes a mixed disorder: High Anion Gap Metabolic Acidosis PLUS Concomitant Respiratory Acidosis (indicating impending respiratory fatigue/failure despite hyperventilation!).
Anion Gap:
AG = Na+ - (Cl- + HCO3-) = 134 - (96 + 8) = 134 - 104 = 30 mEq/L (Markedly elevated, consistent with DKA ketoacids).
A 4-year-old boy is brought to the clinic by his parents because of progressive swelling around his eyes every morning and abdominal distension for the past week. Urinalysis shows 4+ protein, negative blood, and no cells or casts. 24-hour urine protein quantification is 4.8 g. Serum albumin is 1.8 g/dL and total cholesterol is 340 mg/dL. Renal ultrasound is unremarkable. What is the expected ultrastructural finding on electron microscopy, and what is the primary initial therapy?
Ultrastructural Finding: Diffuse Effacement (Flattening/Fusion) of Visceral Epithelial Podocyte Foot Processes on electron microscopy.
Diagnosis & Management: Minimal Change Disease (MCD). Light microscopy would show completely normal glomeruli, and direct immunofluorescence is negative. First-line therapy is oral corticosteroids (Prednisone), which yields rapid complete remission in > 90% of pediatric patients.
A 9-year-old boy presents with "tea-colored" urine, puffiness around his eyes, and a blood pressure of 138/88 mmHg. His mother notes he had a severe sore throat with cervical lymphadenopathy that resolved 3 weeks ago. Urinalysis shows dysmorphic red blood cells, RBC casts, and 1+ proteinuria. Serum complement testing reveals a markedly depressed C3 level with normal C4. What characteristic deposition pattern is expected on electron microscopy?
Electron Microscopy Finding: Large, Dome-Shaped Subepithelial Electron-Dense Immune Complex "Humps".
Diagnosis & Discriminators: Post-Streptococcal Glomerulonephritis (PSGN).
Key board discriminators versus IgA nephropathy:
1. Latent period: 2–4 weeks post-pharyngitis (PSGN) vs. 1–2 days concurrent pharyngitis (IgA nephropathy).
2. Serum C3: Markedly low due to alternative complement pathway activation (PSGN) vs. normal complement (IgA nephropathy).
3. IF pattern: Granular "starry sky" IgG and C3 in mesangium and capillary loops.
A 68-year-old male admitted for acute decompensated heart failure is vigorously diuresed with IV furosemide over 48 hours. His serum creatinine rises from 1.0 to 2.4 mg/dL. He is lightheaded with a blood pressure of 96/60 mmHg. Urine studies show: urinary sodium 48 mEq/L, fractional excretion of sodium (FeNa) 2.4%, and fractional excretion of urea (FeUrea) 28%. Urine microscopy reveals hyaline casts and no cellular casts. Does this patient have prerenal azotemia or acute tubular necrosis?
Diagnosis: Prerenal Azotemia (Volume Contraction from Overdiuresis).
Board Trap Breakdown:
Loop diuretics inhibit the Na+/K+/2Cl- cotransporter, forcing sodium into the urine and falsely elevating the FeNa to > 2%, mimicking ATN. In patients taking diuretics, the Fractional Excretion of Urea (FeUrea) is the accurate test because urea transport in the proximal tubule is independent of loop diuretic action. An FeUrea < 35% (here 28%) definitively confirms prerenal azotemia with intact tubular function.
A 42-year-old female with paraplegia secondary to a spinal cord injury and an indwelling Foley catheter presents with recurrent fever, flank pain, and foul-smelling urine. Urinalysis reveals pH 8.2, positive leukocyte esterase, positive nitrites, and "coffin-lid" prismatic crystals on microscopy. A plain abdominal radiograph (KUB) demonstrates a large, dense branching radiopaque calculus occupying the entire renal pelvis and all major calyces. What is the chemical composition of this calculus and what bacterial virulence factor drives its formation?
Chemical Composition: Magnesium Ammonium Phosphate (Struvite / Triple Phosphate), forming a classic Staghorn Calculus.
Bacterial Virulence Factor: Urease Production by urease-positive bacteria (most commonly Proteus mirabilis, characterized by swarming motility on agar, or Klebsiella pneumoniae).
Urease catalyzes: Urea + H2O → 2 NH3 + CO2. Ammonia buffers hydrogen ions into ammonium (NH4+), driving the urinary pH up into the highly alkaline range (> 7.5–8.0), which precipitates magnesium, ammonium, and phosphate into massive calculi.
