Lymphatic System Anatomy, Transverse Diaphragms & Treatment Protocols

Empties into the junction of the right internal jugular and right subclavian veins. Drains roughly 25% of the body:

• Right upper extremity
• Right hemicranium, right face, and right neck
• Right hemithorax and right breast
• THE ENTIRE HEART & PERICARDIUM (Mandatory Board Rule!)
• BOTH LUNGS (All lobes) EXCEPT the Left Upper Lung Lobe. (The right lung entirely, plus the left lower lobe, drain into the Right Lymphatic Duct!).

Drains roughly 75% of total body lymph, originating in the retroperitoneum at the Cisterna Chyli (located anterior to L1–L2 bodies):

• Entire body below the thoracoabdominal diaphragm (both lower extremities, pelvis, abdomen, and GI tract)
• Left upper extremity, left hemicranium, left face, and left neck
• Left hemithorax and left breast
• LEFT UPPER LUNG LOBE ONLY
• Empties into the left venous angle (junction of left internal jugular and left subclavian veins).

1. Tentorium Cerebelli: Transverse dural fold separating the cerebrum from cerebellum. Directs intracranial venous and glymphatic flow into the jugular foramen.
2. Thoracic Inlet (Sibson's Fascia / Cervicothoracic Diaphragm): Formed by T1 vertebra, bilateral 1st ribs, and manubrium sterni, crossed by suprapleural membrane. Both the thoracic duct and right lymphatic duct must traverse this inlet to reach the central veins!

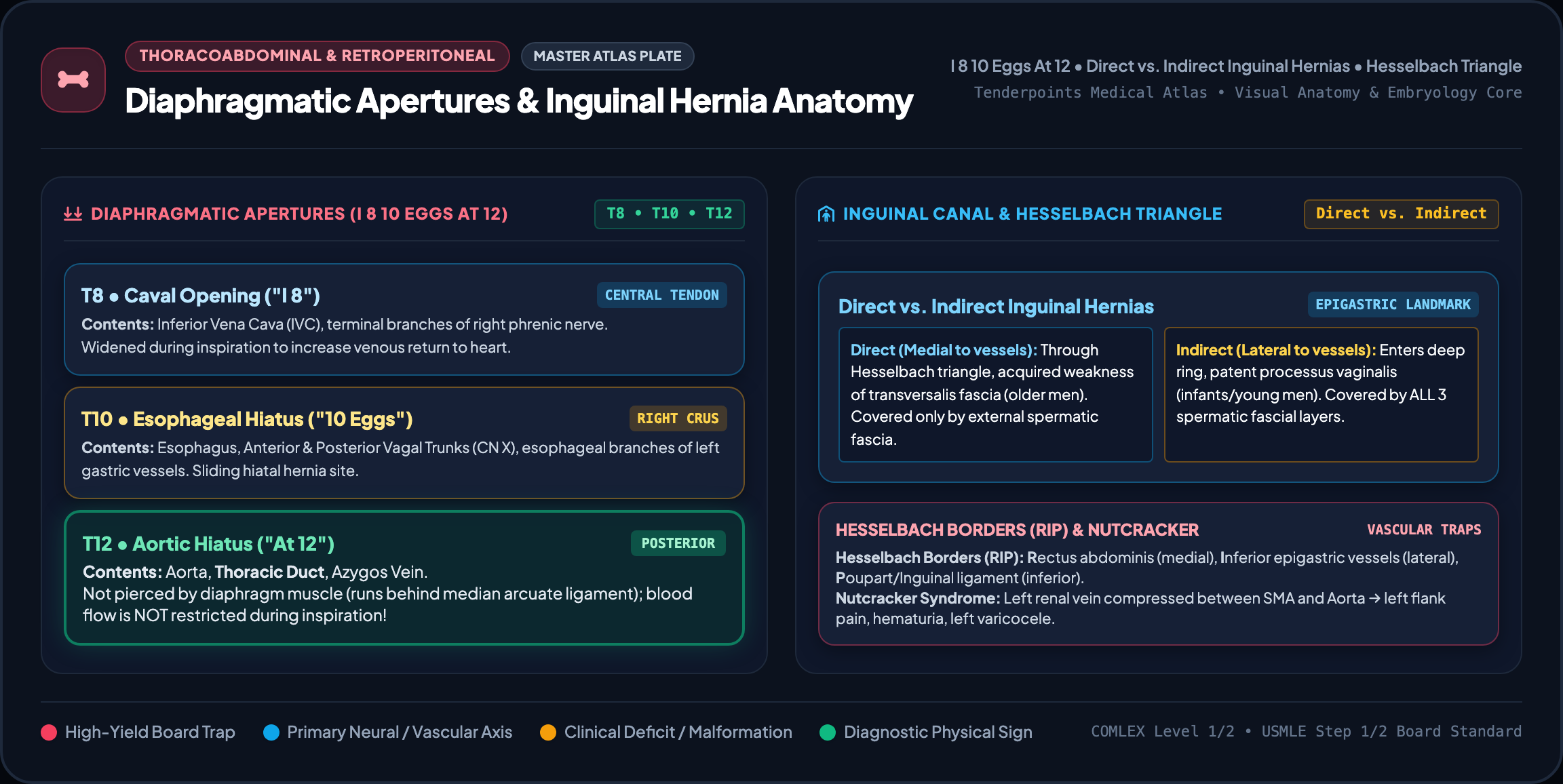

3. Thoracoabdominal Diaphragm: The primary motor of respiratory-circulatory pressure differentials. Crossed by three major apertures:
   • Caval Foramen (T8): Inferior Vena Cava and right phrenic nerve.
   • Esophageal Hiatus (T10): Esophagus and Vagus Nerves (CN X).
   • Aortic Hiatus (T12): Descending Aorta, Thoracic Duct, and Azygos vein. (Mnemonic: I 8 10 Eggs At 12).
4. Pelvic Diaphragm: Formed by the levator ani and coccygeus muscles. Supports pelvic viscera and regulates perineal lymphatic pressures.

• Virchow's Node (Left Supraclavicular Lymph Node): Because the thoracic duct collects lymph from the entire abdomen, gastrointestinal tract, pelvis, retroperitoneum, and bilateral lower extremities before draining into the junction of the left internal jugular and left subclavian veins, metastatic tumor emboli from abdominal/pelvic malignancies (most classically gastric adenocarcinoma, as well as pancreatic, ovarian, testicular, and renal carcinomas) ascend via the thoracic duct and lodge in the left supraclavicular node. A firm, enlarged, non-tender left supraclavicular node is known clinically as Troisier's sign.
• Right Supraclavicular Lymph Node: Drains the right thorax, mid-esophagus, and lower lobes of the lungs via the right lymphatic duct (associated with bronchogenic carcinoma or esophageal cancer).
• Gonadal vs. Scrotal/Pelvic Lymphatic Drainage:
  • Testes & Ovaries: Drain directly to the para-aortic (lumbar) lymph nodes at L1–L2 (following their embryologic descent with the gonadal vessels).
  • Scrotum, Distal Vagina (below hymen), Vulva, & Anal Canal (below pectinate line): Drain to the superficial inguinal lymph nodes.
  • Glans Penis, Clitoris, & Deep Perineum: Drain to the deep inguinal lymph nodes.

Collecting lymphatic vessels contain smooth muscle layers with intrinsic pacemaker activity (lymphangions) that are densely innervated by sympathetic alpha-adrenergic nerve fibers. Acute illness, post-operative pain, or pneumonia induces a hypersympathetic state (T1–L2), causing lymphatic smooth muscle spasm and impaired fluid clearance:

1. Step 1 — Open the Terminal Sink (Thoracic Inlet / Sibson's Fascia MFR): Always open the myofascial restriction at the thoracic inlet first so mobilized lymph does not back up against a closed venous junction.
2. Step 2 — Normalize Sympathetic Tone (Rib Raising T1–L2): Reduces sympathetic alpha-adrenergic tone, relaxing lymphatic duct smooth muscle vasospasm and improving chest wall compliance.
3. Step 3 — Maximize the Thoracoabdominal Pump (Doming the Diaphragm): Relieves crural restriction around the T12 aortic/thoracic duct hiatus and maximizes the intrathoracic-intraabdominal pressure gradient.
4. Step 4 — Mobilize Lymph & Leukocytes (Thoracic or Dalrymple Pedal Pump): Generates rhythmic oscillatory fluid waves that flush the cisterna chyli and gut-associated lymphoid tissue (GALT), significantly increasing thoracic duct lymph flow, circulating B- and T-lymphocyte counts, secretory IgA levels, and serum antibody responses following vaccination.
