Exhaustive brachial and lumbosacral plexus nerve lesion locators, rotator cuff biomechanics, cranial nerve skull base foramina pathways, visual field defect decoders, comprehensive germ layer and organ embryology, thoracoabdominal cross-sections, and osteopathic structural correlates.

16 Traumatic Nerve Lesions

12 Cranial Foramina Paths

6 Organ Tracks Embryology & Teratogens

8 Verified Radiology Slides

Clinical Anatomy & Embryology Question Engine COMLEX • USMLE • COMAT

Authentic board questions covering plexus trauma, dermatomes, congenital anomalies, cranial neuropathies, and osteopathic structural correlates.

Launch Quick Anatomy Drill Browse All Anatomy Items

Dual-Asset Active Recall Atlas 16 Master 2K Plates

Toggle between labeled 2K study atlas plates and zero-spoiler quiz recall diagrams with interactive Prometric Workstation inspection.

Atlas Mode:

Upper Extremity & Brachial Plexus Injuries

Classic fracture sites, compression syndromes, motor deficits, and sensory loss patterns.

C5-T1 • Posterior Cord Wrist Drop

Radial Nerve

Runs in radial spiral groove of humerus with deep brachial (profunda brachii) artery.

Mechanism: Midshaft humerus fracture, compression in axilla ("Saturday night palsy" falling asleep with arm over chair, crutch palsy).

Motor Loss: Loss of elbow, wrist, and finger extension (BEST: Brachioradialis, Extensors of wrist/fingers, Supinator, Triceps).

Sensory Loss: Posterior arm and forearm; dorsal surface of hand (1st-3rd digits and webspace).

Triceps Reflex (C7): Intact if lesion is at spiral groove; absent only if injured high in the axilla!

C5-T1 • Med/Lat Cords Ape Hand / Pope's Blessing

Median Nerve

Runs with brachial artery in cubital fossa, between FDS and FDP, passes through carpal tunnel.

Proximal Lesion (Supracondylar Fracture): Loss of wrist flexion, pronation, flexion of lateral digits. "Pope's blessing" (hand of benediction) when attempting to MAKE A FIST.

Distal Lesion (Carpal Tunnel / Lunate Dislocation): Thenar muscle atrophy (loss of thumb opposition → Ape Hand). Sensation lost over palmar aspects of thumb, index, middle, and radial half of ring finger.

Carpal Tunnel Contents: 9 flexor tendons (4 Flexor Digitorum Superficialis, 4 Flexor Digitorum Profundus, 1 Flexor Pollicis Longus) + Median Nerve under the Transverse Carpal Ligament (Flexor Retinaculum).

Recurrent Motor Branch ("Million Dollar Nerve"): Arises just distal to retinaculum to supply thenar muscles (OAF: Opponens pollicis, Abductor pollicis brevis, Flexor pollicis brevis superficial head); severed by superficial palmar cuts → ape hand.

Thenar Sensation Spared: Palmar cutaneous branch passes superficial to flexor retinaculum; thenar sensation is preserved in carpal tunnel syndrome!

C8-T1 • Medial Cord Ulnar Claw

Ulnar Nerve

Passes posterior to medial epicondyle ("funny bone") and through Guyon canal at wrist.

Mechanism: Medial epicondyle fracture (proximal) or hook of hamate fracture / cyclist handlebar neuropathy (distal Guyon canal).

Motor Loss: Hypothenar muscles, medial 2 lumbricals, all interossei (PAD/DAB: Palmar adduction, Dorsal abduction), adductor pollicis.

Clinical Signs: Froment Sign: Compensatory thumb IP flexion via FPL when gripping paper. Ulnar Paradox: Clawing is LESS severe with proximal lesions because FDP 4-5 are also paralyzed!

Claw vs Blessing: Ulnar claw is visible at REST when patient tries to EXTEND fingers. Pope's blessing is seen when patient tries to FLEX fingers!

C5-C6 Roots

Axillary & Musculocutaneous

Axillary Nerve (C5-C6, Post Cord): Fracture of surgical neck of humerus or anterior shoulder dislocation. Loss of arm abduction beyond 15° (deltoid) and external rotation (teres minor). Numbness over lateral deltoid ("sergeant's patch").

Musculocutaneous Nerve (C5-C7, Lat Cord): Penetrating anterior shoulder trauma. Pierces coracobrachialis. Loss of forearm flexion and supination (biceps, brachialis). Sensory loss on lateral forearm.

Brachial Plexus Trunks

Erb-Duchenne vs Klumpke

Erb Palsy (Upper Trunk C5-C6): Lateral stretch between neck and shoulder (shoulder dystocia in delivery or motorcycle fall). Arm hangs medially rotated, adducted, and pronated: "Waiter's tip" posture.

Klumpke Palsy (Lower Trunk C8-T1): Upward traction on abducted arm (catching tree branch while falling, breech delivery). Paralysis of intrinsic hand muscles → total claw hand. Concomitant Horner syndrome if sympathetic T1 fibers disrupted!

C5-C7 Roots

Long Thoracic & Suprascapular

Long Thoracic Nerve (C5-C7 Roots): Courses superficially along lateral thoracic wall to innervate Serratus anterior. Injured during axillary lymph node dissection (mastectomy) or chest tube placement. Inability to abduct arm above 90°; Winged Scapula.

Suprascapular Nerve (C5-C6 Upper Trunk): Passes through suprascapular notch beneath superior transverse scapular ligament. Innervates supraspinatus (initiates 0-15° abduction) and infraspinatus (external rotation). Compressed in heavy backpack carriage.

Palmar & Dorsal Cutaneous OAF Thenar Innervation

Hand Neurovascular Topography & Cutaneous Maps

Complete palmar and dorsal sensory territories, median nerve palmar cutaneous branch carpal tunnel sparing, recurrent thenar motor branch, and ulnar claw vs benediction sign.

Board Pearl: Palmar cutaneous branch of median nerve arises PROXIMAL to carpal tunnel → thenar eminence sensation is SPARED in carpal tunnel syndrome!

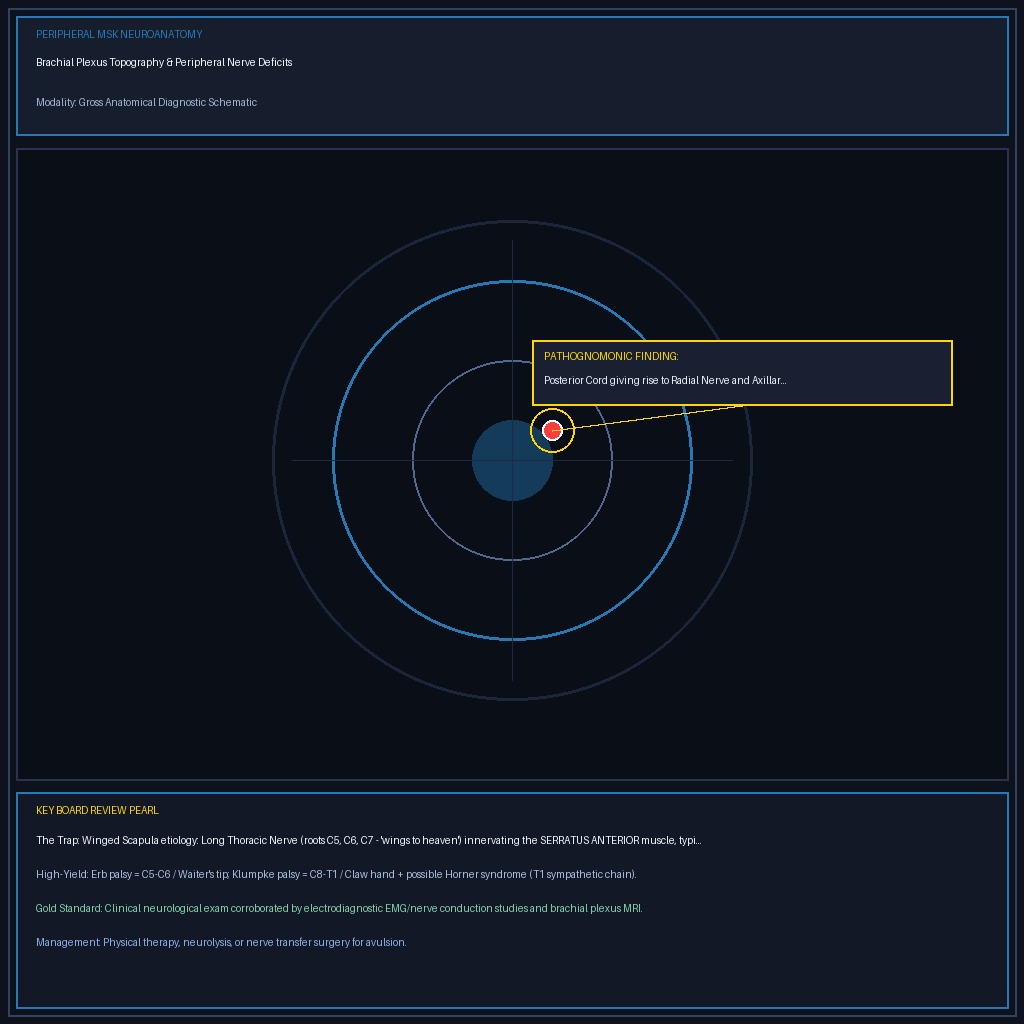

C5–T1 Topography Trunks, Cords & Branches

Brachial Plexus Root-to-Terminal Topography

Complete root-to-terminal architecture, 3 cords relative to the axillary artery, Erb-Duchenne palsy (C5–C6), Klumpke claw hand (C8–T1), and winged scapula from long thoracic nerve injury.

Board Pearl: Serratus anterior (Long Thoracic C5–C7) rotates scapula upward to abduct arm ABOVE 90°. Axillary nerve deltoid abducts 15°–90°; Supraspinatus initiates 0°–15°.

Lower Extremity & Lumbosacral Plexus Injuries

Common peroneal foot drop, femoral nerve reflex loss, obturator adduction weakness, and Trendelenburg gait.

L4-S2 Foot Drop

Common Peroneal (Fibular)

Wraps superficially around the neck of the fibula; most common lower extremity nerve injury.

Injury: Fibular head/neck fracture, tight lower leg plaster cast, or prolonged leg crossing.

Motor Deficit: Deep fibular branch → loss of ankle dorsiflexion (Foot Drop, high-stepping steppage gait). Superficial fibular → loss of eversion.

Sensory Deficit: Anterolateral lower leg and dorsum of foot (webbed space between 1st & 2nd toe = deep fibular).

Mnemonic PED / TIP: PED = Peroneal Everts and Dorsiflexes (lesion = foot drops). TIP = Tibial Inverts and Plantarflexes (lesion = cannot tip-toe).

L4-S3 Inability to Point Toes

Tibial Nerve

Courses through popliteal fossa and tarsal tunnel posterior to medial malleolus.

Injury: Knee trauma, Baker cyst in popliteal fossa, or compression under flexor retinaculum in tarsal tunnel.

Motor Deficit: Loss of foot plantarflexion (gastrocnemius, soleus), foot inversion (tibialis posterior), and toe flexion. Absent Achilles reflex (S1-S2).

Sensory Deficit: Loss of sensation on the sole (plantar surface) of the foot.

Tarsal Tunnel Contents: Tom, Dick, And Nervous Harry: Tibialis posterior, flexor Digitorum longus, posterior tibial Artery, tibial Nerve, flexor Hallucis longus.

L2-L4 Knee Buckling

Femoral Nerve

Descends under inguinal ligament lateral to femoral artery within femoral triangle (outside femoral sheath!).

Injury: Pelvic fracture, psoas hematoma/abscess, or vascular access hematoma following femoral catheterization.

Motor Deficit: Loss of knee extension (quadriceps femoris) and weakened hip flexion (iliopsoas, pectineus, sartorius). Difficulty climbing stairs, frequent knee buckling.

Sensory & Reflex: Numbness of anterior thigh and medial leg (saphenous branch). Absent patellar tendon reflex (L3-L4).

Femoral Triangle & Sheath Architecture (NAVEL):

From Lateral to Medial: Nerve → Artery → Vein → Empty space (femoral canal) → Lymphatics (deep node of Cloquet).

Crucial Board Fact: The Femoral Nerve is OUTSIDE the femoral sheath! The sheath encloses only the femoral artery, femoral vein, and femoral canal. Femoral hernias protrude into the femoral canal medial to the vein.

L2-L4 Adduction Deficit

Obturator Nerve

Passes through obturator foramen to supply medial thigh compartment.

Injury: Pelvic ring fracture, anterior hip replacement surgery, or compression by an obturator hernia (Howship-Romberg sign).

Motor Deficit: Weakness of thigh adduction (adductor longus, brevis, and magnus; gracilis). Difficulty crossing legs while sitting.

Sensory Deficit: Small sensory patch over medial mid-thigh.

L4-S1 Trendelenburg Gait

Superior Gluteal Nerve

Exits greater sciatic foramen superior to piriformis muscle.

Innervation: Gluteus medius, gluteus minimus, and tensor fasciae latae (hip abductors and pelvic stabilizers).

Mechanism: Intramuscular injections into superomedial quadrant of buttock or posterior hip dislocation.

Trendelenburg Rule: When standing on the affected (weak) limb, the pelvis DROPS on the CONTRALATERAL (opposite) side! IM injections must be placed in the superolateral quadrant (ventrogluteal site).

L5-S2 Roots

Inferior Gluteal & Meralgia

Inferior Gluteal Nerve (L5-S2): Exits below piriformis. Supplies Gluteus maximus (primary hip extensor). Injury causes severe difficulty rising from a seated position or climbing steep stairs.

Lateral Femoral Cutaneous (L2-L3): Passes under lateral inguinal ligament. Compressed by obesity, pregnancy, or tight tool belts (Meralgia Paresthetica). Produces burning pain and paresthesias over anterolateral thigh with ZERO motor deficit!

Master Peripheral Nerve Traumatology Matrix

Peripheral Nerve	Spinal Roots	High-Yield Anatomic Vulnerability	Motor Deficit / Presentation	Sensory Loss Distribution
Radial Nerve	C5–T1	Midshaft humerus fracture, crutch pressure in axilla	Wrist drop, loss of finger and elbow extension (BEST muscles)	Posterior arm/forearm, dorsal webspace between thumb and index
Median Nerve	C5–T1	Supracondylar fracture (proximal), carpal tunnel (distal)	Pope's blessing when making fist (proximal); Ape hand thenar atrophy (distal)	Palmar digits 1–3 and radial half of digit 4 (thenar palm spared in carpal tunnel)
Ulnar Nerve	C8–T1	Medial epicondyle fracture, hook of hamate fracture / Guyon canal	Ulnar claw on finger extension, Froment sign (thumb IP flexion)	Medial 1.5 digits (little finger and ulnar half of ring finger)
Axillary Nerve	C5–C6	Surgical neck humerus fracture, anterior glenohumeral dislocation	Impaired abduction >15° (deltoid) and external rotation (teres minor)	Sergeant's patch over lateral deltoid insertion
Common Peroneal (Fibular)	L4–S2	Fibular head/neck fracture, tight plaster cast compression	Foot drop (loss of dorsiflexion), loss of foot eversion, steppage gait	Anterolateral leg, foot dorsum, 1st interdigital webspace (deep fibular)
Tibial Nerve	L4–S3	Knee dislocation, Baker cyst in popliteal fossa, tarsal tunnel	Inability to stand on tiptoes (loss of plantarflexion), loss of inversion, lost ankle jerk	Sole (plantar surface) and heel of foot
Superior Gluteal Nerve	L4–S1	Superomedial buttock injection, posterior hip surgery	Trendelenburg gait (contralateral pelvis drops when standing on affected leg)	None (purely motor nerve)
Femoral Nerve	L2–L4	Psoas abscess/hematoma, femoral artery catheterization hematoma	Knee extension paralysis (quadriceps), knee buckling, lost patellar reflex	Anterior thigh, medial lower leg down to medial malleolus (saphenous)

Posterior Abdominal Wall Topography

Lumbar Plexus Roots, Course & Clinical Entrapments

T12–L4 Distribution • Cremasteric • Meralgia Paresthetica

The lumbar plexus forms within the substance of the psoas major muscle from the ventral primary rami of L1–L4 (with contribution from T12). Recognition of each nerve's trajectory relative to the psoas border is essential for surgical navigation (inguinal hernia repairs, appendectomy, retroperitoneal dissection) and neurological localization.

Nerve	Root	Psoas Relation & Trajectory	Motor Innervation	Sensory Field	High-Yield Board Entrapment / Injury
Subcostal	T12	Runs inferior to 12th rib across quadratus lumborum	External/internal obliques, transversus abdominis, rectus	Skin over iliac crest and lower hypogastric region	Injured in flank incisions for nephrectomy or retroperitoneal lymphadenectomy.
Iliohypogastric	L1	Lateral border of psoas, pierces transversus abdominis near ASIS	Internal oblique & transversus abdominis	Skin over lateral gluteal area and suprapubic / hypogastric zone	Injured during appendectomy (McBurney incision) or lower quadrant trocars → suprapubic numbness.
Ilioinguinal	L1	Traverses superficial inguinal ring (does not enter deep ring!)	Internal oblique & transversus abdominis	Anterior scrotum / labia majora, root of penis, mons pubis	Most commonly injured nerve during open inguinal herniorrhaphy or Pfannenstiel incision → burning groin pain and scrotal numbness.
Genitofemoral	L1–L2	Pierces anterior surface of psoas major, divides into 2 branches	Genital branch: Cremaster muscle (L1–L2 efferent limb)	Femoral branch: upper anterior thigh; Genital branch: scrotal/labial skin	Lost cremasteric reflex in testicular torsion, L1–L2 radiculopathy, or retroperitoneal hematoma.
Lateral Femoral Cutaneous	L2–L3	Lateral border of psoas, passes under inguinal ligament medial to ASIS	None (purely sensory)	Skin of anterolateral thigh down to knee	Meralgia Paresthetica: Entrapped by tight belts, obesity, or pregnancy under inguinal ligament. Burning, stinging anterolateral thigh pain with normal motor exam.
Femoral	L2–L4	Lateral border of psoas, under inguinal ligament lateral to femoral sheath	Iliopsoas, pectineus, sartorius, quadriceps femoris (knee extension)	Anterior thigh, medial lower leg & foot via saphenous nerve	Psoas abscess/hematoma, femoral artery catheterization complication → loss of knee extension, absent patellar reflex, knee buckling.
Obturator	L2–L4	Medial border of psoas, descends through obturator foramen canal	Thigh adductors (adductor longus, brevis, magnus, gracilis)	Small cutaneous patch on distal medial thigh	Injured in pelvic lymphadenectomy (prostate/cervical cancer), obturator hernia (Howship-Romberg sign), or pelvic ring fracture → adduction failure.

Femoral Triangle Neurovascular Stratigraphy (Lateral to Medial: NAVL):

Nerve (Femoral nerve sits outside femoral sheath) • Artery (Femoral artery) • Vein (Femoral vein) • Lymphatics (Femoral canal / deep inguinal lymph nodes of Cloquet inside sheath). Femoral hernias protrude medial to the vein into the femoral canal.

Cremasteric Reflex Neural Arc (L1–L2):

Stroking the medial upper thigh stimulates the femoral branch of the genitofemoral nerve (and ilioinguinal nerve) as the afferent limb. Action potentials synapse in L1–L2 spinal cord, sending motor impulses via the genital branch of the genitofemoral nerve (efferent limb) to contract the cremaster muscle, retracting the ipsilateral testis.

Lumbosacral Plexus Common Fibular (PED) vs. Tibial (TIP)

Lower Extremity Nerves, Compartments & Gait Pathologies

Complete root origins, motor innervation, sensory distribution, and classic board presentations for Common Fibular (PED / foot drop), Tibial (TIP), Femoral, Obturator, and Superior Gluteal (Trendelenburg sign) nerves.

Board Pearl: Mnemonic: PED = Peroneal Everts & Dorsiflexes (foot drop if injured at fibular neck); TIP = Tibial Inverts & Plantarflexes (cannot walk on tiptoes).

Mediastinal Neurovascular Trajectories

Phrenic vs. Vagus Mediastinal Courses & Recurrent Laryngeal Loops

Ortner Syndrome & Hilum Landmarks

Phrenic Nerve (C3, C4, C5)

Anterior to Hilum

Course & Relations: Arises from C3–C5 ("C3, 4, 5 keeps the diaphragm alive"). Descends on the ANTERIOR surface of the Anterior Scalene muscle beneath the prevertebral fascia.

Thoracic Hilum Landmark: Passes ANTERIOR to the root (hilum) of the lung (sandwiched between parietal pericardium and mediastinal pleura with the pericardiacophrenic vessels).

Sensory Distribution: Transmits somatic sensory pain from central diaphragm, pericardium, and mediastinal pleura → referred pain to ipsilateral shoulder and neck tip (C3–C5 dermatome) via supraclavicular nerves.

Hemidiaphragm Paralysis: Iatrogenic injury (interscalene brachial plexus block, mediastinal surgery) causes elevated hemidiaphragm on chest X-ray and paradoxical upward elevation on fluoroscopic "sniff test".

Vagus Nerve (Cranial Nerve X)

Posterior to Hilum

Course & Relations: Exits the jugular foramen, descends in the posterior groove of the Carotid Sheath between the internal jugular vein (lateral) and common/internal carotid artery (medial).

Thoracic Hilum Landmark: Passes POSTERIOR to the root (hilum) of the lung, breaking up into pulmonary and esophageal plexuses.

Diaphragmatic Hiatus: Reconstitutes as anterior (left vagus) and posterior (right vagus) vagal trunks: "LARP" (Left Anterior, Right Posterior) to traverse the esophageal hiatus at T10.

High-Yield Distinction: Phrenic = ANTERIOR to lung hilum; Vagus = POSTERIOR to lung hilum!

Recurrent Laryngeal Nerves

Asymmetric Loops

Branches of CN X providing motor supply to all intrinsic muscles of larynx EXCEPT cricothyroid (innervated by external branch of superior laryngeal nerve).

Left Recurrent Laryngeal: Loops under the Aortic Arch (lateral to ligamentum arteriosum) before ascending in the tracheoesophageal groove.

Right Recurrent Laryngeal: Loops under the Right Subclavian Artery at the root of the neck.

Ortner Syndrome (Cardiovocal Syndrome): Massive Left Atrial Enlargement (mitral stenosis) or Thoracic Aortic Aneurysm compresses the Left Recurrent Laryngeal Nerve against the pulmonary artery/aorta → left vocal cord paralysis and progressive hoarseness without primary laryngeal disease!

Musculoskeletal & Orthopedics

Upper & Lower Extremity Joints, Rotator Cuff & Ligaments

High-yield joint stabilizers, rotator cuff impingement tests, compartment borders, pediatric subluxations, and knee/ankle sports trauma.

Glenohumeral Joint Dynamic Stabilizers

Rotator Cuff (SITS) Master Functional Anatomy

Most Common Tear: Supraspinatus

Abduction (0–15°) Suprascapular N. (C5–C6)

Supraspinatus

Insertion: Superior facet of greater tubercle of humerus.

Action: Initiates arm abduction (first 0–15°) before deltoid (axillary nerve, 15–90°) and trapezius/serratus anterior (>90°).

Board Exam Clue: Most common rotator cuff tear and impingement tendinopathy (compressed under acromion). Tested via "Empty Can" (Jobe) test, Hawkins-Kennedy, and Neer impingement signs.

External Rotation Suprascapular N. (C5–C6)

Infraspinatus

Insertion: Middle facet of greater tubercle of humerus.

Action: External rotation of the humerus at the glenohumeral joint; dynamic posterior glenohumeral stabilization.

Board Exam Clue: Pitchers and overhead athletes with posterosuperior impingement. Tested by resisting external rotation with elbows adducted at 90° flexion (External Rotation Lag Sign).

External Rotation & Adduction Axillary N. (C5–C6)

Teres Minor

Insertion: Inferior facet of greater tubercle of humerus.

Action: External rotation and adduction of humerus; forms superior border of triangular interval and inferior border of quadrangular space.

Board Exam Clue: Innervated by the Axillary Nerve (unlike supraspinatus/infraspinatus). Injured in anterior shoulder dislocations or surgical neck humeral fractures. Hornblower sign positive.

Internal Rotation Upper & Lower Subscapular (C5–C6)

Subscapularis

Insertion: Lesser tubercle of humerus (only SITS muscle inserting on lesser tubercle!).

Action: Internal (medial) rotation and adduction of humerus; dynamic anterior glenohumeral stabilization.

Board Exam Clue: Tested by Lift-Off (Gerber) test (inability to push hand off lower back) and Belly-Press (Napoleon) test. Innervated by upper and lower subscapular nerves.

Dynamic Stabilizers & Spaces SITS Kinematics • Quadrangular / Triangular Spaces

Rotator Cuff (SITS) Kinematics & Posterior Scapular Spaces

Complete supraspinatus initiation (0–15°), external rotators (infraspinatus, teres minor), internal rotator (subscapularis on lesser tubercle), and neurovascular conduits: Quadrangular space (Axillary n., post. circumflex humeral a.), Triangular space (circumflex scapular a.), and Triangular interval (Radial n., profunda brachii a.).

Board Pearl: Subscapularis is the ONLY rotator cuff muscle inserting onto the lesser tubercle (internally rotates). Supraspinatus, infraspinatus, and teres minor insert onto the greater tubercle.

Posterior Shoulder Anatomic Spaces

Vascular and neural conduits traversing between the axilla, scapular region, and posterior arm.

Quadrangular Space

Axillary N. + Post. Circumflex Humeral A.

Borders: Superior: Teres minor (or subscapularis anteriorly); Inferior: Teres major; Medial: Long head of triceps; Lateral: Surgical neck of humerus.

Pathology: Quadrangular space syndrome (fibrous band compression) causes deltoid/teres minor weakness and lateral shoulder numbness.

Triangular Space

Scapular Circumflex Artery

Borders: Superior: Teres minor; Inferior: Teres major; Lateral: Long head of triceps.

Pathology: Key anastomotic branch of subscapular artery forming scapular collateral network around infraspinous fossa.

Triangular Interval

Radial N. + Profunda Brachii A.

Borders: Superior: Teres major; Medial: Long head of triceps; Lateral: Shaft of humerus / lateral head of triceps.

Pathology: Conduit into radial (spiral) groove of humerus; vulnerable to midshaft humeral fractures.

Elbow & Wrist Traumatology Matrix

Classical sports and pediatric injuries tested heavily on board vignettes.

Nursemaid's Elbow (Radial Head Subluxation)

Pediatric 1–4 yrs

Mechanism: Sudden axial traction on an extended, pronated arm (e.g., pulling toddler up by wrist). The annular ligament slips over the head of the radius and becomes trapped in the radiohumeral joint.

Presentation & Reduction: Child holds arm flexed and pronated against body, refusing to move it. Reduction: Flexion with supination (or hyperpronation).

Epicondylitis: Lateral (Tennis) vs. Medial (Golfer's)

Repetitive Strain

Lateral Epicondylitis (Tennis): Tendinopathy of common extensor origin, specifically Extensor Carpi Radialis Brevis (ECRB); pain on resisted wrist extension and middle finger extension.

Medial Epicondylitis (Golfer's): Tendinopathy of common flexor origin (Pronator Teres & Flexor Carpi Radialis); pain on resisted wrist flexion and pronation.

Scaphoid Fracture & Lunate Dislocation

FOOSH Injury

Scaphoid: Anatomic snuffbox tenderness (bounded by EPL medially, EPB/APL laterally). Retrograde blood flow from dorsal scaphoid branch of radial artery → high risk of avascular necrosis and nonunion. Initial radiographs often normal; immobilize and re-image in 10–14 days.

Lunate Dislocation: Anterior displacement compresses the carpal tunnel → acute median nerve compression. Lateral X-ray shows "spilled teacup" sign.

Joint Biomechanics & Sports ACL / PCL • Unhappy Triad • ATFL Inversion

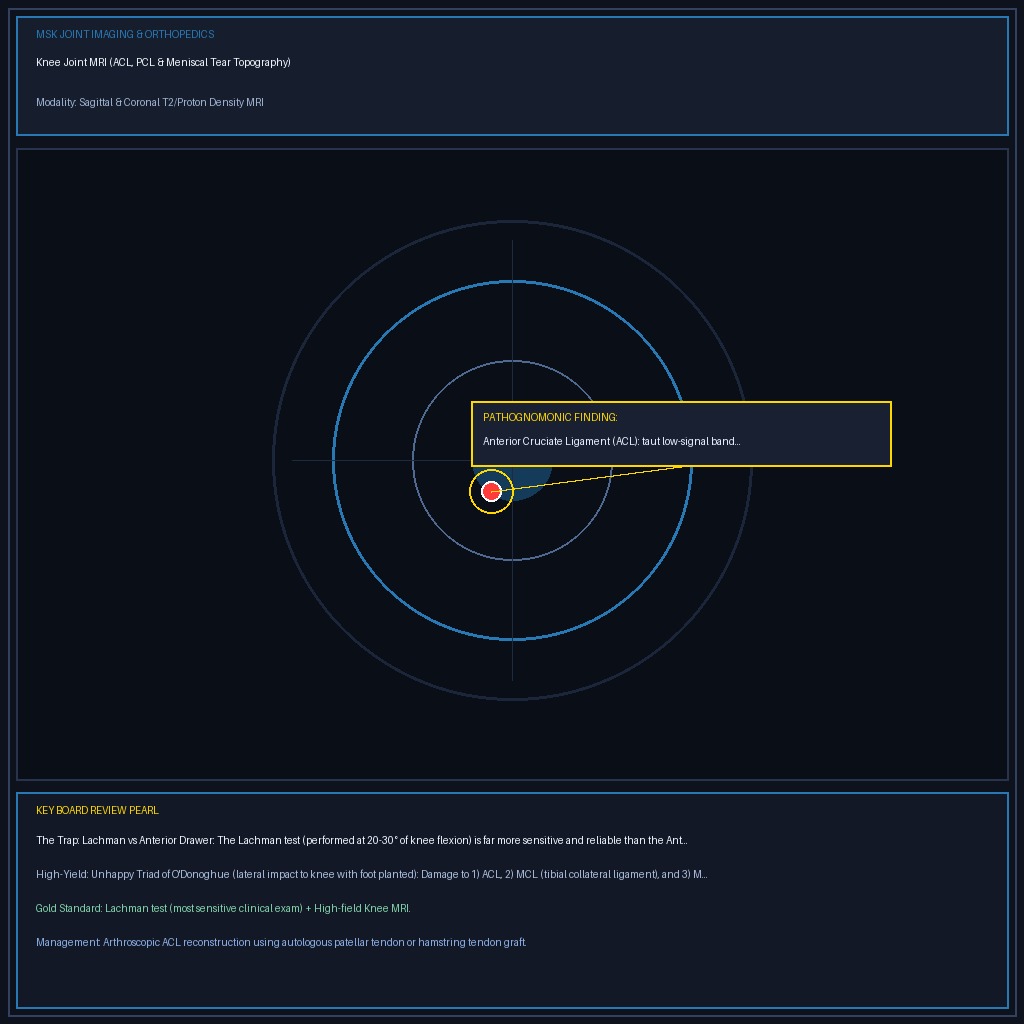

Knee Ligaments, Menisci, Unhappy Triad & Ankle Sprain Topography

Complete anterior vs posterior translation (ACL Lachman vs PCL drawer), C-shaped medial vs O-shaped lateral meniscus, O'Donoghue unhappy triad mechanism, and inversion ankle sprain ligament hierarchy (ATFL "Always Tears First" → CFL → PTFL).

Board Pearl: The Lachman test (performed at 20–30° flexion) is substantially MORE sensitive than the anterior drawer test for ACL rupture. In inversion ankle sprains, the ATFL tears first ("Always Tears First Ligament").

Lower Extremity Orthopedics

Hip, Knee & Ankle Ligamentous Pathology

Board Favorites: Lachman, ATFL, Thompson

Structure / Injury	Anatomic Mechanism	Clinical Exam Signs	High-Yield Board Concept
Anterior Cruciate Ligament (ACL)	Non-contact pivot/deceleration with knee valgus stress and hyperextension; loud "pop" with rapid hemarthrosis	Lachman test (most sensitive, 30° flexion), Anterior drawer test, Pivot shift test	Originates on lateral femoral condyle, inserts on anterior intercondylar tibia (APEX: Anterior-Posterior, External-Internal). Prevents anterior tibial translation.
Posterior Cruciate Ligament (PCL)	Direct posterior blow to proximal tibia on flexed knee ("dashboard injury" in MVA) or severe hyperflexion	Posterior sag test (Godfrey sign), Posterior drawer test	Thicker and stronger than ACL. Originates on medial femoral condyle, inserts on posterior intercondylar tibia. Prevents posterior tibial translation.
Medial Collateral Ligament (MCL)	Lateral (valgus) force applied to the knee with foot planted (e.g., clipped on outside of knee in football)	Valgus stress test at 30° knee flexion demonstrates medial joint line laxity and pain	Deep fibers intimately attached to the medial meniscus. Isolated MCL tears managed conservatively; triad involvement requires surgery.
Unhappy Triad (O'Donoghue Triad)	Lateral valgus impact on extended or slightly flexed planted foot with twisting rotation	Immediate hemarthrosis, severe instability, positive Lachman, positive valgus stress, joint line tenderness	Classical triad: ACL + MCL + Medial Meniscus. Modern MRI literature shows lateral meniscus is torn more acutely, but board exams still test medial meniscus!
Meniscal Tears (Medial vs. Lateral)	Rotational/twisting force on a weight-bearing knee. Degenerative tears occur with minimal trauma in elderly	Joint-line tenderness, mechanical locking/catching, McMurray test (external rotation = medial; internal = lateral)	Outer 1/3 (red zone) has vascular supply and heals; inner 2/3 (white zone) is avascular and requires partial meniscectomy. Medial meniscus is C-shaped and less mobile.
Anterior Talofibular Ligament (ATFL)	Inversion injury of plantarflexed foot (e.g., stepping off curb or landing on opponent's shoe)	Anterior drawer test of ankle demonstrates anterior talar translation; swelling/ecchymosis over lateral malleolus	Most commonly injured ligament in ankle sprains ("Always Tears First Ligament"). Severe sprains also tear Calcaneofibular Ligament (CFL). Eversion sprains injure Deltoid Ligament.
Achilles Tendon Rupture	Sudden forceful plantarflexion (push-off) or unexpected dorsiflexion; fluoroquinolone (ciprofloxacin) use, elderly runners	Palpable gap in posterior heel, Thompson (Simmonds) test (squeezing calf fails to produce passive plantarflexion)	Formed by gastrocnemius and soleus tendons inserting onto calcaneus. Plantarflexion is severely weakened, but deep flexors (FHL, FDL, TP) allow weak toe flexion.
Femoral Neck Fracture vs. Posterior Hip Dislocation	Neck Fracture: Low-energy fall in osteoporotic elderly. Posterior Dislocation: High-speed head-on MVA dashboard impact	Neck Fracture: Shortened, EXTERNALLY rotated leg. Posterior Dislocation: FLEXED, ADDUCTED, INTERNALLY rotated leg	Neck fracture disrupts medial circumflex femoral artery → avascular necrosis of femoral head. Posterior hip dislocation compresses sciatic nerve.

Connective Tissue Organization

Fascial Architecture, Compartments & Retinacular Biomechanics

Compartment Syndrome Surgical Planes

Hypodermis / Subcutaneous Panniculus Adiposus

Superficial Fascia

Composition: Loose areolar connective tissue and variable adipose tissue directly underlying the dermis. Contains cutaneous nerves, superficial veins (great/small saphenous, cephalic/basilic), and superficial lymphatic channels.

Functional Significance: Acts as a mechanical cushion, thermal insulator, and conduit for neurovascular structures prior to piercing deep fascia. Allows skin to glide freely over underlying muscles.

Deep Fascia Layer 1 Epimysium Integration

Investing Deep Fascia

Composition: Dense, organized connective tissue devoid of fat that surrounds individual muscles and neurovascular bundles. In the neck, forms the investing layer of deep cervical fascia enveloping trapezius and sternocleidomastoid.

Venous Pump Mechanism: Resists muscular expansion during contraction, compressing intramuscular deep veins against non-yielding deep fascia to drive venous return back to the heart against gravity.

Compartmentalization Bone Anchors

Intermuscular Septa

Composition: Thick fascial sheets projecting inward from the deep investing fascia to anchor securely onto the periosteum of limb bones (e.g., humerus, femur, tibia/fibula).

Compartment Syndrome: Separates limb muscles with similar innervation/function into rigid fascial compartments (e.g., anterior leg compartment). Intracompartmental swelling (ΔP > 30 mmHg or tissue pressure > 30 mmHg) causes microvascular ischemia requiring emergent fasciotomy.

Tendon Pulleys Bowstring Prevention

Retinacula

Composition: Marked transverse thickenings of deep fascia spanning bony prominences at joints (flexor/extensor retinacula of the wrist and ankle, peroneal retinacula).

Mechanical Leverage: Acts as anatomical pulleys holding tendons snug against the bone during joint flexion and extension, preventing tendon "bowstringing" and maximizing joint torque efficiency.

Cervical Fascial Architecture

Deep Cervical Fascia Layers, Spaces & Mediastinitis Pathways

Alar Fascia • Danger Space (Space 4) • Retropharyngeal Abscess

Layer 1 Superficial Collar

Investing Layer

Encloses the entire neck like a collar. Splits to envelop the trapezius and sternocleidomastoid (SCM) muscles, as well as the submandibular and parotid salivary glands. Attaches to the mandible, hyoid, clavicle, and manubrium.

Layer 2 Visceral / Muscular

Pretracheal Layer

Consists of a muscular part (enclosing infrahyoid strap muscles) and a visceral part (enveloping the thyroid gland, trachea, and esophagus). Continuous posteriorly with the buccopharyngeal fascia covering the pharyngeal constrictor muscles.

Layer 3 Neurovascular

Carotid Sheath

Tubular condensation of deep fascia extending from base of skull to root of neck. Contents: Common/Internal Carotid Artery (medial), Internal Jugular Vein (lateral), and Vagus Nerve (CN X) (posterior groove). Ansa cervicalis lies embedded on anterior surface.

Layer 4 Axial Support

Prevertebral Layer

Cylindrical sheath enclosing cervical vertebral column, prevertebral muscles (longus colli/capitis), and scalenes. Surrounds cervical sympathetic trunk and phrenic nerve. Extends laterally as the axillary sheath around the brachial plexus and subclavian artery.

High-Yield Infection Conduit: Retropharyngeal Space vs. The "Danger Space" (Space 4)

True Retropharyngeal Space:

Lies between the buccopharyngeal fascia (anteriorly) and the alar fascia (posteriorly). Extends from the base of the skull inferiorly only to the superior mediastinum (T1–T2), where the alar fascia fuses with the visceral fascia.

The "Danger Space" (Space 4):

Lies between the alar fascia (anteriorly) and the prevertebral fascia (posteriorly). Because there is no inferior anatomic barrier, this potential space extends from the base of the skull straight down through the entire posterior mediastinum to the level of the diaphragm (T12)!

Clinical Vignette Pattern: A child or young adult with an odontogenic abscess, peritonsillar abscess (quinsy), or retropharyngeal cellulitis develops high fever, neck stiffness, dysphagia, and sudden severe pleuritic chest pain with dyspnea. CT scan demonstrates air and fluid tracking down into the posterior mediastinum (→ acute necrotizing mediastinitis, requiring emergent surgical drainage).

Arthrology & Structural Kinesiology

Joint Classification Master Matrix (Fibrous, Cartilaginous & Synovial)

Structural vs. Functional Categories

Class & Subtype	Structural Material	Mobility Degree	Anatomical Examples	High-Yield Clinical & Board Correlation
Fibrous: Sutures	Dense collagenous sutural ligament	Synarthrosis (Immobile)	Coronal, sagittal, lambdoid sutures of calvaria	Premature closure produces craniosynostosis (scaphocephaly, oxycephaly). Later ossify into synostoses in adulthood.
Fibrous: Syndesmosis	Interosseous membrane or ligamentous cord	Amphiarthrosis (Slight)	Middle radioulnar, middle tibiofibular, inferior tibiofibular joint	Disruption of inferior tibiofibular syndesmosis = "High ankle sprain" (external rotation mechanism; Squeeze test positive).
Fibrous: Gomphosis	Periodontal ligament (Sharpey fibers)	Synarthrosis (Immobile)	Dentoalveolar syndesmosis (tooth root in bony socket)	Scurvy (Vitamin C deficiency) impairs prolyl/lysyl hydroxylase → defective collagen → periodontal breakdown and loose teeth.
Cartilaginous: Primary (Synchondrosis)	Hyaline cartilage	Synarthrosis (Immobile)	Epiphyseal growth plates, spheno-occipital synchondrosis, 1st costochondral joint	Temporary developmental joints that allow bone growth, subsequently undergoing synostosis (fusion). Salter-Harris fractures involve the epiphyseal plate.
Cartilaginous: Secondary (Symphysis)	Fibrocartilage disc overlying thin hyaline cartilage plates	Amphiarthrosis (Slight movement)	Pubic symphysis, intervertebral discs, manubriosternal joint	All symphyses reside in the anatomical midline. Designed for high strength and shock absorption. Relaxin softens pubic symphysis during late pregnancy.
Synovial: Plane (Gliding)	Articular capsule, synovial fluid, hyaline surfaces	Diarthrosis (Gliding)	Acromioclavicular (AC), intercarpal, zygapophyseal (facet) joints	AC joint separation from direct blow to tip of shoulder (piano key sign). Facet joint tropism causes mechanical axial back pain.
Synovial: Hinge (Ginglymus)	Uniaxial cylinder in trough with collateral ligaments	Diarthrosis (Uniaxial Flex/Ext)	Humeroulnar (elbow), talocrural (ankle), interphalangeal (DIP/PIP)	Strong collateral ligaments prevent sideways motion. DIP Heberden nodes and PIP Bouchard nodes in osteoarthritis.
Synovial: Pivot (Trochoid)	Central bony pivot enclosed in osteofibrous ring	Diarthrosis (Uniaxial Rotation)	Median atlantoaxial joint (C1–C2 dens), proximal & distal radioulnar joints	C1–C2 allows "no" head rotation. Annular ligament subluxation = Nursemaid's elbow (radial head slips out of pivot ring).
Synovial: Condyloid (Ellipsoid)	Oval convex condyle fitting into elliptical concavity	Diarthrosis (Biaxial)	Metacarpophalangeal (MCP 2–5), radiocarpal joint (wrist), atlanto-occipital (C0–C1)	Permits flexion/extension and abduction/adduction (and circumduction), but NO axial rotation. Atlanto-occipital allows "yes" head nodding.
Synovial: Saddle (Sellar)	Opposing reciprocal concavo-convex articular surfaces	Diarthrosis (Biaxial + Circumduction)	1st Carpometacarpal joint (trapeziometacarpal of thumb), sternoclavicular (SC) joint	Provides thumb with unique capability for opposition (grasping and fine motor precision). Common site of basal thumb osteoarthritis.
Synovial: Ball-and-Socket (Spheroid)	Spherical head in cup-like socket	Diarthrosis (Multiaxial / 3 DOF)	Glenohumeral joint (shoulder), acetabulofemoral joint (hip)	Highest mobility at expense of stability. Glenohumeral socket is shallow (dependent on rotator cuff/labrum); hip socket is deep (acetabular labrum).

Craniofacial Arthrology

Temporomandibular Joint (TMJ) Compartmental Biomechanics & Dislocation

Two Distinct Functional Cavities

Articular Disc & Dual-Compartment Architecture

Biconcave Fibrocartilage

The TMJ is a modified hinge / bilateral synovial joint between the mandibular condyle (head) and the mandibular fossa/articular tubercle of the temporal bone. A dense fibrocartilaginous articular disc divides the synovial cavity into two separate functional spaces:

Lower Compartment (Infradiscal): Between mandibular condyle and inferior disc surface. Operates as a hinge joint (pure rotation) responsible for the initial 20–25 mm of mouth opening.

Upper Compartment (Supradiscal): Between temporal bone and superior disc surface. Operates as a gliding/plane joint (translation) where the condyle and disc translate anteriorly onto the articular tubercle for wide opening (>25 mm).

Muscles of Mastication: Functional Vectors

Lateral Pterygoid: ONLY muscle that opens (depresses) the jaw. Inferior head protrudes mandible; superior head guides disc return during mouth closure. (Innervated by V3).

Temporalis: Elevates (closes) jaw; posterior horizontal fibers retract (retrude) the mandible. (Innervated by V3).

Masseter & Med. Pterygoid: Power elevators (close jaw). Form a functional sling around the ramus/angle of the mandible. Medial pterygoid also assists in protrusion and side-to-side chewing. (Innervated by V3).

Anterior TMJ Dislocation Mechanism & Manual Reduction

Lockjaw Emergent Reduction

Pathophysiology: During excessive yawning or forceful dental extraction, the mandibular condyle translates anteriorly over the articular eminence and slips into the infratemporal fossa. Once displaced, powerful spasm of the masseter, temporalis, and medial pterygoid muscles locks the mandible anterior to the articular tubercle, preventing spontaneous closure.

Clinical Triad: Inability to close the mouth (open lock), mandibular prominence, and preauricular depression (empty glenoid fossa palpated anterior to tragus).

Reduction Technique: Place gloved thumbs on the inferior mandibular molars with fingers wrapped externally under the chin. Apply steady DOWNWARD pressure (to overcome masseter/pterygoid spasm and clear the articular eminence) followed by POSTERIOR translation into the mandibular fossa.

Auriculotemporal Nerve Vulnerability: Branch of CN V3 traveling behind the neck of the mandible. Transmits sensory fibers from TMJ capsule, anterior external auditory canal, and posterior temple. Chronic TMJ internal derangement produces referred pain to the temporal fossa and ear canal mimicking otitis externa.

Cranial Vault & Brainstem

Cranial Nerves (I–XII), Skull Base Foramina & Reflex Arcs

Master nucleus origins, skull base exit foramina, functional components, brainstem Rule of 4s, and classic neurologic reflex loops.

Functional Brainstem Anatomy

Cranial Nerves I–XII Master Compendium

12 Nerves • All Nuclei & Foramina

Nerve	Skull Base Exit	Brainstem Nuclei / Function	Motor & Autonomic Innervation	Sensory & Special Sensation	Clinical Deficit & Board Pearl
CN I: Olfactory	Cribriform plate (Ethmoid)	Telencephalon / Olfactory bulb; Special Visceral Afferent (SVA)	None	Olfaction (smell) from olfactory neuroepithelium	Anosmia from cribriform plate fracture (head trauma with CSF rhinorrhea). Associated with Kallmann syndrome (hypogonadotropic hypogonadism + anosmia).
CN II: Optic	Optic canal (Lesser wing sphenoid)	Diencephalon / Retinal ganglion cells → LGN; Special Somatic Afferent (SSA)	None (Afferent limb of pupillary light reflex)	Vision from retina	Optic neuritis (MS), papilledema, bitemporal hemianopia at chiasm (pituitary tumor). Covered by oligodendrocytes & meninges (vulnerable in MS; elevated ICP transmits along sheath).
CN III: Oculomotor	Superior orbital fissure (Sphenoid)	Midbrain (at superior colliculus level); GSE, GVE (parasympathetic)	SR, IR, MR, IO; Levator palpebrae superioris; Pupillary sphincter & ciliary muscle (Edinger-Westphal → ciliary ganglion)	None	Compression (PCom aneurysm / uncal herniation): Blown, dilated pupil FIRST (outer parasympathetic fibers compressed). Microvascular Ischemia (Diabetic): "Pupil-sparing" motor palsy (down-and-out eye, ptosis) because central core fibers are ischemic while outer parasympathetics have pial collateral flow!
CN IV: Trochlear	Superior orbital fissure (Sphenoid)	Midbrain (inferior colliculus level); GSE. Only CN that exits DORSALLY and DECUSSATES!	Superior Oblique muscle (depresses eye in adduction, intorts)	None	Vertical diplopia, worse walking down stairs or reading. Patient tilts head AWAY from affected side to compensate for lost intorsion.
CN V: Trigeminal (V1, V2, V3)	V1: Sup. Orbital Fissure V2: Foramen Rotundum V3: Foramen Ovale	Pons (chief sensory, spinal trigeminal, mesencephalic, motor nucleus); GSA, SVE	V3 only: Muscles of mastication (masseter, temporalis, medial/lateral pterygoid), mylohyoid, anterior digastric, tensor tympani, tensor veli palatini	V1: Forehead, cornea (corneal reflex afferent). V2: Mid-face, maxillary teeth. V3: Lower face, mandibular teeth, anterior 2/3 tongue somatic sensation	Trigeminal neuralgia (shooting shock-like pain triggered by touch/chewing; treat with carbamazepine). On jaw opening, mandible deviates TOWARDS side of lesion (unopposed pterygoid). Absent corneal reflex afferent.
CN VI: Abducens	Superior orbital fissure (Sphenoid)	Pons (facial colliculus floor of 4th ventricle); GSE	Lateral Rectus muscle (abducts eye)	None	Medial strabismus & horizontal diplopia on looking toward affected side. Longest intracranial subarachnoid course; highly sensitive to elevated ICP ("false localizing sign"). Floats free within cavernous sinus (injured earliest in cavernous sinus thrombosis).
CN VII: Facial	Internal acoustic meatus → Stylomastoid foramen	Pons (facial nucleus, superior salivatory, solitary tract); SVE, GVE, SVA, GSA	Muscles of facial expression, stapedius (dampens sound), stylohyoid, posterior digastric. Parasympathetics: Submandibular, sublingual, and lacrimal glands	Taste to anterior 2/3 of tongue (chorda tympani); sensation to external auditory meatus & pinna	UMN (Stroke): Contralateral lower face paralysis with forehead SPARING (bilateral upper face cortical input). LMN (Bell Palsy): Complete ipsilateral paralysis INCLUDING FOREHEAD, hyperacusis (paralyzed stapedius), dry eyes/mouth, lost anterior taste. Corneal reflex efferent limb.
CN VIII: Vestibulocochlear	Internal acoustic meatus (Temporal)	Pontomedullary junction; SSA	None	Hearing (cochlear nerve / organ of Corti); Balance & acceleration (vestibular nerve / semicircular canals & otoliths)	Sensorineural hearing loss, vertigo, nystagmus, tinnitus. Vestibular schwannoma (Acoustic Neuroma) at cerebellopontine angle compresses CN VIII, VII, and V; bilateral in Neurofibromatosis type 2 (NF2).
CN IX: Glossopharyngeal	Jugular foramen (Temporal/Occipital)	Medulla (nucleus ambiguus, inferior salivatory, solitary tract); SVE, GVE, GVA, GSA, SVA	Stylopharyngeus (elevates pharynx during swallowing). Parasympathetic: Parotid gland (lesser petrosal → otic ganglion → auriculotemporal)	Taste & general sensation to posterior 1/3 of tongue; oropharynx, middle ear cavity; Carotid body & sinus chemo/baroreceptors (Hering nerve)	Loss of gag reflex afferent limb. Glossopharyngeal neuralgia (excruciating lancinating pain in throat/tonsillar bed on swallowing). Carotid sinus hypersensitivity syncope.
CN X: Vagus	Jugular foramen (Temporal/Occipital)	Medulla (nucleus ambiguus, dorsal motor nucleus, solitary tract); SVE, GVE, GVA, GSA, SVA	Pharyngeal constrictors, intrinsic laryngeal muscles, levator veli palatini. Parasympathetics to heart, lungs, and GI tract down to splenic flexure	Taste from epiglottis; sensation from larynx, external acoustic meatus (Arnold nerve); aortic arch baroreceptors/chemoreceptors	Uvula deviates AWAY (contralateral) from lesion; hoarseness (recurrent laryngeal nerve injury during thyroidectomy or PDA ligation); dysphagia, lost gag efferent limb. Arnold reflex: ear canal cleaning triggers cough via vagal branch.
CN XI: Spinal Accessory	Jugular foramen (Ascends through Foramen Magnum, exits Jugular)	Cervical spinal cord (C1–C5/C6 anterior horns); GSE	Sternocleidomastoid (SCM) and Trapezius muscles	None (purely motor)	Weakness turning head to CONTRALATERAL side (SCM turns head away). Ipsilateral shoulder drooping, impaired shoulder shrugging, and inability to abduct arm above horizontal. Most injured nerve during posterior neck triangle lymph node biopsy!
CN XII: Hypoglossal	Hypoglossal canal (Occipital bone)	Medulla (hypoglossal nucleus near midline floor of 4th ventricle); GSE	All intrinsic and extrinsic muscles of tongue EXCEPT Palatoglossus (innervated by CN X!)	None (purely motor)	LMN lesion: Tongue protrudes and deviates TOWARDS the side of the lesion ("lick your wounds") with ipsilateral fasciculations and muscle atrophy. UMN lesion: Tongue deviates contralateral. Injured during carotid endarterectomy.

Cranial Osteology & Neurovascular Portals

Complete Skull Base Foramina & Transmitted Neurovascular Structures

Cribriform to Foramen Magnum • Standing Room Only

Cranial Fossa / Bone	Skull Base Foramen	Transmitted Cranial Nerves	Transmitted Vessels & Other Structures	High-Yield Clinical Scenario
Anterior Fossa (Ethmoid)	Cribriform Plate	CN I (Olfactory nerve bundles)	Anterior ethmoidal artery	Anterior skull base trauma causes cribriform fracture → anosmia and CSF rhinorrhea (halo sign on filter paper; beta-2 transferrin confirms CSF).
Middle Fossa (Sphenoid)	Optic Canal	CN II (Optic nerve)	Ophthalmic artery, central retinal vein	Optic nerve meningioma, ophthalmic artery aneurysm; monocular vision loss.
Middle Fossa (Sphenoid)	Superior Orbital Fissure	CN III, IV, V1 (lacrimal, frontal, nasociliary), VI	Superior ophthalmic vein, sympathetic fibers	Superior Orbital Fissure Syndrome: Complete ophthalmoplegia (CN III, IV, VI) + forehead sensory loss (V1) + proptosis. Spares optic canal vision!
Middle Fossa (Sphenoid)	Foramen Rotundum	CN V2 (Maxillary nerve)	Emissary veins	Leads into pterygopalatine fossa; middle third facial trauma causes cheek and upper teeth numbness.
Middle Fossa (Sphenoid)	Foramen Ovale	CN V3 (Mandibular nerve), Lesser petrosal nerve	Accessory meningeal artery, emissary veins	Mnemonic OVALE: Otic ganglion (just below), V3, Accessory meningeal, Lesser petrosal, Emissary veins.
Middle Fossa (Sphenoid)	Foramen Spinosum	Meningeal branch of CN V3 (nervus spinosus)	Middle meningeal artery and vein	Pterion fracture tears middle meningeal artery → rapid arterial expansion of Epidural Hematoma.
Middle Fossa (Temporal)	Carotid Canal	Internal carotid sympathetic nerve plexus	Internal Carotid Artery (ICA)	Carotid artery dissection causes Horner syndrome (compression of periarterial sympathetic plexus) + pulsatile tinnitus.
Posterior Fossa (Temporal)	Internal Acoustic Meatus	CN VII (Facial), CN VIII (Vestibulocochlear)	Labyrinthine artery (internal auditory a.)	Vestibular Schwannoma (Acoustic Neuroma): Compresses IAM → sensorineural hearing loss, tinnitus, vertigo → late ipsilateral facial droop (CN VII). Bilateral in NF-2!
Posterior Fossa (Temporal/Occipital)	Jugular Foramen	CN IX (Glossopharyngeal), CN X (Vagus), CN XI (Accessory)	Internal Jugular Vein, Inferior petrosal sinus, Posterior meningeal artery	Jugular Foramen (Vernet) Syndrome: Glomus jugulare tumor causes loss of gag reflex (IX/X), dysphagia, hoarseness, uvula deviation away, and trapezius/SCM weakness (XI).
Posterior Fossa (Occipital)	Hypoglossal Canal	CN XII (Hypoglossal nerve)	Meningeal branch of ascending pharyngeal artery	Lesion causes tongue protrusion deviating TOWARD side of lesion ("licks the lesion").
Posterior Fossa (Occipital)	Foramen Magnum	Spinal roots of CN XI (ascend from C1–C5 to enter skull)	Medulla oblongata, Vertebral arteries, Anterior & posterior spinal arteries, Dural veins	Tonsillar herniation (Chiari I/II or mass effect) compresses medulla → respiratory arrest and death.

Craniofacial Organogenesis & Cervical Fascia

Palate & Face Fusions, Tongue Innervation & Surgical Airway Triangles

Cleft Lip vs. Palate • Tongue Dual Wiring • Cricothyrotomy vs. Tracheostomy

Primary Palate Defect Cleft Lip

Failure of Maxillary & Medial Nasal Prominence Fusion

Failure of the Maxillary Prominence to fuse with the Medial Nasal Prominence (Intermaxillary Segment). Can be unilateral (75%) or bilateral. Results in notch or gap in upper lip and primary palate anterior to incisive foramen.

Board Trap: Cleft lip and cleft palate have distinct embryologic origins and genetic etiologies, though they frequently co-occur!

Secondary Palate Defect Cleft Palate

Failure of Lateral Palatine Shelves Fusion

Failure of the Lateral Palatine Processes (Palatine Shelves) to elevate, swing horizontally, and fuse in the midline with each other, with the nasal septum, and with the primary palate posterior to the incisive foramen.

Pierre Robin Sequence: Micrognathia → Glossoptosis (posterior tongue displacement) → U-shaped cleft palate → upper airway obstruction.

Tongue Anatomical & Embryological Tripartite Innervation Matrix

Anterior 2/3 (Arches 1 & 2)

General Sensation: CN V3 (Lingual nerve) — touch, pain, temperature.
Special Sensation (Taste): CN VII (Chorda tympani) — hitchhikes on lingual nerve.

Posterior 1/3 (Arch 3)

General Sensation: CN IX (Glossopharyngeal) — primary sensory limb for gag reflex.
Special Sensation (Taste): CN IX (Glossopharyngeal) — vallate & foliate papillae.

Root & Motor Supply

Root / Epiglottis: CN X (Superior laryngeal nerve) for taste and touch.
Motor Supply: CN XII (Hypoglossal) for all muscles EXCEPT Palatoglossus (CN X pharyngeal plexus!)

Retropharyngeal "Danger Space" & Mediastinitis

The Retropharyngeal Space lies between buccopharyngeal fascia and alar fascia. Immediately posterior is the "Danger Space" (between alar and prevertebral fascia), which extends freely from the skull base directly into the posterior mediastinum down to the diaphragm!

Clinical Sequela: Severe odontogenic abscess, peritonsillar abscess (Quinsy), or retropharyngeal abscess tracks downward into the chest, producing acute necrotizing mediastinitis (high fever, severe chest pain, widened mediastinum; surgical emergency).

Emergency Cricothyrotomy vs. Elective Tracheostomy

Emergency Cricothyrotomy: Performed through the Cricothyroid Membrane (between thyroid cartilage superiorly and cricoid cartilage inferiorly). Quickest emergency surgical airway; enters an avascular, superficial plane below vocal cords; avoids thyroid gland.

Elective Tracheostomy: Performed between tracheal rings 2–3 or 3–4 below the cricoid cartilage. Requires retraction or division of the thyroid isthmus. High risk of torrential hemorrhage from inferior thyroid veins or anomalous Thyroid Ima Artery (~10% prevalence!).

Skull Base Neuroanatomy Sphenoid S-R-O • Jugular Foramen • Pterion

Skull Base Foramina & Neurovascular Transmissions

Complete sphenoid foramina (Superior orbital fissure, Rotundum, Ovale "Standing Room Only"), Middle meningeal artery through Foramen Spinosum (epidural hematoma at pterion), Jugular foramen (CN IX, X, XI, Vernet syndrome), and Hypoglossal canal.

Board Pearl: Mnemonic: "Standing Room Only" → Superior orbital fissure (V1), Rotundum (V2), Ovale (V3). Foramen spinosum transmits the middle meningeal artery deep to the pterion!

Coronal Topography Lumen: ICA & CN VI • Wall: CN III, IV, V1, V2

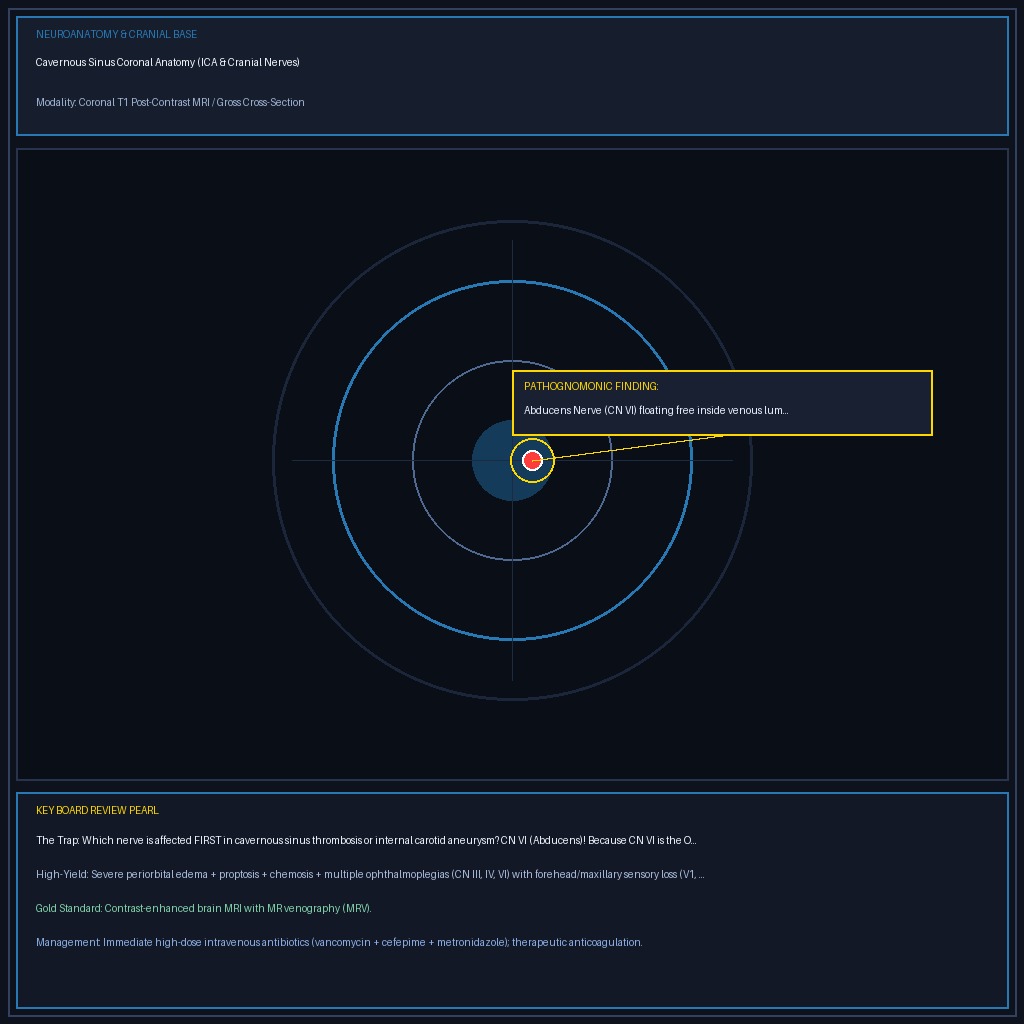

Cavernous Sinus Coronal Anatomy & Orbital Syndromes

Complete coronal cross-section around sella turcica, distinguishing free-floating internal lumen structures (ICA and CN VI) from fibrous lateral wall cranial nerves (CN III, IV, V1, V2), with danger triangle septic thrombosis mechanisms.

Board Pearl: In cavernous sinus thrombosis or enlarging ICA aneurysm, CN VI is damaged FIRST because it runs freely inside the lumen next to the carotid!

High-Yield Cranial Nerve Reflex Arcs

Clinical neurologic reflexes testing afferent/efferent loop integrity.

Corneal Reflex

Touching cornea triggers bilateral eye blink

Afferent: CN V1 (Nasociliary)
Efferent: CN VII (Orbicularis oculi)

Pupillary Light Reflex

Light in one eye triggers bilateral pupillary constriction

Afferent: CN II (Pretectal nucleus)
Efferent: CN III (Bilateral Edinger-Westphal)

Gag Reflex

Touching posterior pharyngeal wall triggers pharyngeal elevation

Afferent: CN IX (Glossopharyngeal)
Efferent: CN X (Nucleus ambiguus)

Jaw Jerk Reflex

Downward tap on chin triggers masseter contraction

Afferent: CN V3 (Mesencephalic nucleus)
Efferent: CN V3 (Motor masseter)

Carotid Sinus Baroreflex

Carotid sinus stretch triggers bradycardia & vasodilation

Afferent: CN IX (Sinus n. to NTS)
Efferent: CN X (Dorsal motor nucleus & SA node)

Vestibulo-Ocular Reflex (Doll's Eyes)

Head rotation triggers compensatory conjugate eye movement opposite

Afferent: CN VIII (Semicircular canals)
Efferent: CN III, IV, VI (via MLF)

Brainstem Stroke Localization 4 Midline (M) • 4 Lateral (S) • Rule of 4s

Brainstem Rule of 4s & Vertebrobasilar Stroke Localization

Complete anatomical localization matrix: 4 Midline "M" structures (Motor corticospinal, Medial lemniscus, MLF, Motor CN nuclei 3, 4, 6, 12), 4 Lateral "S" structures (Spinothalamic, Spinocerebellar, Sympathetics/Horner, Sensory CN V), PICA/Wallenberg vs AICA syndromes.

Board Pearl: PICA infarct affects nucleus ambiguus (hoarseness, dysphagia; "don't pick a horse that can't eat"). AICA infarct paralyzes facial nucleus (facial droop; "facial droop = AICA").

Cervicofacial Angiology & Autonomics

External Carotid Hierarchy & The 4 Parasympathetic Ganglia

"Some Anatomists" • Ciliary • Pterygopalatine • Otic

External Carotid Artery: 8 Named Branches Hierarchy

Mnemonic: "Some Anatomists Like Freaking Out Poor Medical Students"

1. Superior Thyroid a.

Accompanies external branch of superior laryngeal nerve; branches into superior laryngeal a. piercing thyrohyoid membrane with internal laryngeal n.

2. Ascending Pharyngeal a.

Smallest named branch; ascends vertically along pharyngeal wall to skull base, supplying pharynx, tonsils, and middle ear cavity.

3. Lingual a.

Arises at level of hyoid bone; passes deep to hyoglossus muscle to supply intrinsic and extrinsic tongue muscles and floor of mouth.

4. Facial a.

Hooks around inferior border of mandible anterior to masseter (palpable pulse); ascends tortuously across face. Tonsillar branch supplies palatine tonsil.

5. Occipital a.

Courses deep to posterior belly of digastric and SCM; grooves the occipital bone to supply posterior scalp.

6. Posterior Auricular a.

Ascends posterior to external acoustic meatus to supply auricle, mastoid air cells, and scalp behind ear.

7. Maxillary a. (Terminal)

Larger terminal branch. Enters infratemporal fossa → gives off Middle Meningeal Artery (passes through foramen spinosum; pterion trauma → epidural hematoma).

8. Superficial Temporal a.

Smaller terminal branch. Ascends anterior to ear with auriculotemporal nerve to vertex of skull. Biopsy site for Giant Cell (Temporal) Arteritis.

The 4 Cranial Parasympathetic Ganglia & Pathway Circuits

Ganglion	Cranial Nerve Origin	Preganglionic Pathway	Hitchhiking Nerve	Target Viscera & Physiological Action
Ciliary Ganglion	CN III (Oculomotor)	Edinger-Westphal nucleus → inferior division of CN III → nerve to inferior oblique	Short ciliary nerves (CN V1)	Sphincter pupillae (miosis) and ciliary muscle (lens accommodation for near vision).
Pterygopalatine Ganglion	CN VII (Facial)	Superior salivatory nucleus → Greater petrosal nerve → Nerve of pterygoid canal (Vidian nerve)	Zygomatic (V2) → Lacrimal (V1)	Lacrimal gland (crying/tearing), mucosal glands of nasal cavity, paranasal sinuses, and palate.
Submandibular Ganglion	CN VII (Facial)	Superior salivatory nucleus → Chorda tympani → exits petrotympanic fissure	Lingual nerve (CN V3)	Submandibular and Sublingual salivary glands (serous and mucous salivation).
Otic Ganglion	CN IX (Glossopharyngeal)	Inferior salivatory nucleus → Tympanic nerve (Jacobson) → Tympanic plexus → Lesser petrosal nerve (foramen ovale)	Auriculotemporal nerve (CN V3)	Parotid salivary gland (profuse watery saliva secretion).

The Brainstem "Rule of 4s" (Peter Gates)

A foolproof clinical algorithm to localize any brainstem stroke within 30 seconds.

4 Midline Structures Starting with "M"

Motor pathway (Corticospinal tract): Contralateral arm and leg weakness.
Medial Lemniscus: Contralateral loss of vibration and proprioception.
Medial Longitudinal Fasciculus (MLF): Internuclear ophthalmoplegia (INO).
Motor Cranial Nerve Nuclei: Divisors of 12 that divide equally: CN III, IV, VI, XII (except 1 and 2).

4 Lateral Structures Starting with "S"

Spinothalamic tract: Contralateral loss of pain and temperature in body.
Spinocerebellar tract & Peduncles: Ipsilateral limb ataxia.
Sympathetic descending tract: Ipsilateral Horner syndrome (ptosis, miosis, anhidrosis).
Sensory Cranial Nerve Nuclei: Do NOT divide into 12: CN V, VII, IX, X.

4 Cranial Nerves per Brainstem Level

4 Above Pons: CN I (telencephalon), CN II (diencephalon), CN III, CN IV (midbrain).
4 In Pons: CN V, CN VI, CN VII, CN VIII.
4 In Medulla: CN IX, CN X, CN XI, CN XII.

Cerebrovascular & Neuro-Ophthalmology

Brainstem Stroke Syndromes, Visual Field Defects & Pupillary Circuits

Vascular territories of the brainstem, visual pathway field defects, internuclear ophthalmoplegia, Horner sympathetic cascade, and intracranial hemorrhage types.

Cerebrovascular Localization

Brainstem Stroke Syndromes Master Matrix

Wallenberg • AICA • ASA • Weber • Locked-In

Syndrome	Artery Occluded	Brainstem Level	Ipsilateral Findings	Contralateral Findings	Pathognomonic Distinguishing Feature
Lateral Medullary (Wallenberg Syndrome)	PICA (or Vertebral artery)	Dorsolateral Medulla	Dysphagia & hoarseness (Nucleus ambiguus: CN IX, X), lost gag reflex; Ipsilateral Horner syndrome (descending sympathetics); Ipsilateral facial pain/temp loss (Spinal trigeminal nucleus); Ataxia, dysmetria (Inferior cerebellar peduncle); Vertigo, nystagmus, vomiting (Vestibular nuclei)	Loss of pain & temperature over trunk and extremities (Spinothalamic tract)	Nucleus ambiguus involvement (dysphagia + hoarseness + hiccups) with completely INTACT motor strength! ("Don't pick a PICA" = hoarseness/dysphagia).
Lateral Pontine Syndrome	AICA (Anterior Inferior Cerebellar)	Dorsolateral Pons	Paralysis of face / LMN facial droop (CN VII nucleus); Sensorineural deafness & vertigo (CN VIII nucleus / Labyrinthine a.); Ipsilateral Horner syndrome; Ipsilateral facial sensory loss (CN V); Ataxia (Middle cerebellar peduncle)	Loss of pain & temperature over body (Spinothalamic tract)	Facial paralysis + Deafness. Mnemonic: "Facial droop = AICA's pooped!" Distinguishes from Wallenberg (where CN VII is spared).
Medial Medullary Syndrome	Anterior Spinal Artery (ASA)	Paramedian Medulla	Ipsilateral flaccid tongue paralysis (CN XII hypoglossal nucleus; tongue deviates toward side of lesion on protrusion)	Contralateral spastic hemiparesis (Corticospinal tract in pyramid); Contralateral loss of vibration & proprioception (Medial lemniscus)	"Tongue licks the lesion" + contralateral hemiparesis. Spares pain and temperature (spinothalamic is lateral).
Parinaud Syndrome (Dorsal Midbrain Syndrome)	Pinealoma / Hydrocephalus (compressing tectum)	Dorsal Midbrain (Superior Colliculi & Pretectal Area)	Paralysis of upward conjugate gaze (superior colliculus compression); Pseudo-Argyll Robertson pupils: Light-near dissociation (loss of light constriction; near accommodation intact); Bilateral eyelid retraction (Collier sign)	Convergence-retraction nystagmus on attempted upward gaze (rectus muscle co-contraction)	Compressive syndrome from pineal gland germinoma / pinealoma. Spares motor strength! Downward gaze is characteristically preserved.
Weber Syndrome (Superior Alternating Hemiplegia)	PCA paramedian branches	Ventral Midbrain	CN III oculomotor palsy (ipsilateral blown pupil, ptosis, "down-and-out" eye)	Contralateral spastic hemiparesis (Cerebral peduncle / Corticospinal & Corticobulbar tracts)	Midbrain lesion combining ipsilateral CN III palsy with contralateral body hemiplegia. Claude syndrome adds ataxia (red nucleus).
Locked-In Syndrome	Basilar Artery (bilateral)	Bilateral Ventral Pons	Bilateral quadriplegia, aphonia, horizontal gaze paralysis	Fully awake, conscious, aware (Reticular Activating System and cortex preserved!)	Vertical eye movements & blinking are SPARED (controlled by midbrain tectum above pons). Patient communicates only via blinking.

Neuro-Ophthalmology Atlas

Visual Pathway Lesions & Clinical Field Defects (Anopias)

Meyer Loop • Baum Loop • PCA Macular Sparing

Visual Pathway Lesions and Field Defects

Visual Pathway Deficits (Anopia Matrix)

Deficit topography matching lesions from the retina to the calcarine cortex.

Monocular Anopia & Amaurosis Fugax

Optic Nerve / CRAO

Complete blindness in ipsilateral eye. Amaurosis fugax: Transient painless monocular vision loss ("curtain coming down") caused by retinal artery atheroembolism from ipsilateral carotid stenosis.

Bitemporal Hemianopia

Optic Chiasm

Compression of crossing nasal retinal fibers (representing temporal visual fields). Causes: Pituitary adenoma (compresses from below), Craniopharyngioma (Rathke pouch remnant, calcified in children, compresses from above), and ACom aneurysm.

Homonymous Quadrantanopias (Pie in Sky vs. Floor)

Meyer vs. Baum Loops

Meyer Loop (Temporal Lobe - MCA inferior): Contralateral Superior Quadrantanopia ("Pie in the sky"). Passes through temporal horn of lateral ventricle.

Baum Loop (Parietal Lobe - MCA superior): Contralateral Inferior Quadrantanopia ("Pie on the floor"). Passes directly through parietal lobe.

Homonymous Hemianopia with Macular Sparing

PCA Infarction

Infarction of primary visual (calcarine) cortex supplied by Posterior Cerebral Artery (PCA). The macula (central vision) is SPARED because the occipital pole has dual collateral blood supply from the Middle Cerebral Artery (MCA)!

Gaze Pathways & Autonomic Circuits

MLF interneuron communication, Marcus Gunn RAPD, and sympathetic oculomotor wiring.

Internuclear Ophthalmoplegia (INO)

MLF Lesion

Lesion of Medial Longitudinal Fasciculus (MLF): Conjugate horizontal gaze conjugate pair disconnect. On attempted lateral gaze, the ipsilateral eye FAILS TO ADDUCT, and the contralateral abducting eye develops horizontal nystagmus.

Convergence is INTACT (bypasses MLF via pretectal region!). Bilateral INO in a young adult is pathognomonic for Multiple Sclerosis (MS); unilateral INO in elderly is ischemic stroke.

Horner Syndrome 3-Neuron Pathway

Sympathetic Interruption

Triad: Ptosis (Müller superior tarsal muscle), Miosis (paralysis of pupillary dilator), and Anhidrosis (impaired facial sweat glands). Does NOT dilate in darkness!

Circuit: 1st Order: Hypothalamus to C8–T2 ciliospinal center of Budge (hypothalamic/brainstem stroke). 2nd Order: Sympathetic chain over lung apex (Pancoast tumor). 3rd Order: Superior cervical ganglion along internal carotid (carotid dissection / cavernous sinus).

Marcus Gunn Pupil (RAPD)

Afferent Pupillary Defect

Diagnosed with "Swinging Flashlight Test". When light is swung from normal eye to affected eye, both pupils paradoxically DILATE (because the affected optic nerve transmits less light sensation than the normal eye). Classical feature of Optic Neuritis in Multiple Sclerosis.

Neurotrauma & Vascular Emergencies

Intracranial Hemorrhages Master Comparison

Epidural • Subdural • Subarachnoid • Intraparenchymal

Epidural Hematoma Middle Meningeal A.

Biconvex (Lenticular) CT

Anatomy: Fracture of pterion (thin junction of frontal, parietal, temporal, sphenoid bones). Ruptures middle meningeal artery (branch of maxillary a.).

CT Image: Hyperdense biconvex lens that does NOT cross suture lines (dura firmly adherent at sutures).

Clinical: Classic lucid interval followed by rapid uncal herniation (blown pupil, hemiparesis).

Subdural Hematoma Bridging Veins

Crescent-Shaped CT

Anatomy: Rupture of fragile bridging cortical veins crossing subdural space to superior sagittal sinus. Seen in elderly (brain atrophy stretches veins) and chronic alcoholics, shaken baby.

CT Image: Crescent-shaped hematoma that CROSSES suture lines (limited only by dural reflections: falx/tentorium).

Clinical: Insidious progressive headache, confusion, fluctuating mental status over days/weeks.

Subarachnoid Hemorrhage Berry Aneurysm / AVM

Blood in Basal Cisterns

Anatomy: Rupture of saccular (berry) aneurysm at bifurcations in Circle of Willis (most commonly Anterior Communicating Artery). Associated with ADPKD, Marfan, Ehlers-Danlos.

CT Image: Hyperattenuating blood pooling in sulci, sylvian fissures, and basal cisterns.

Clinical: "Worst headache of my life" (thunderclap headache), meningismus, xanthochromia on LP. Nimodipine prevents vasospasm!

Intraparenchymal Bleed Charcot-Bouchard

Basal Ganglia Hyperdensity

Anatomy: Chronic systemic hypertension causes lipohyalinosis → Charcot-Bouchard microaneurysms of lenticulostriate branches of MCA. Most common in putamen of basal ganglia.

CT Image: Focal hyperdense hematoma within brain parenchyma with surrounding edema and mass effect.

Clinical: Sudden contralateral hemiplegia, sensory loss, conjugate gaze deviation toward lesion. Amyloid angiopathy in elderly causes lobar bleeds.

Cerebrovascular & Ventricular Hydrodynamics

Circle of Willis Berry Aneurysms & Ventricular CSF Pathway

ACom • PCom • MCA • Monroe to Magendie • NPH

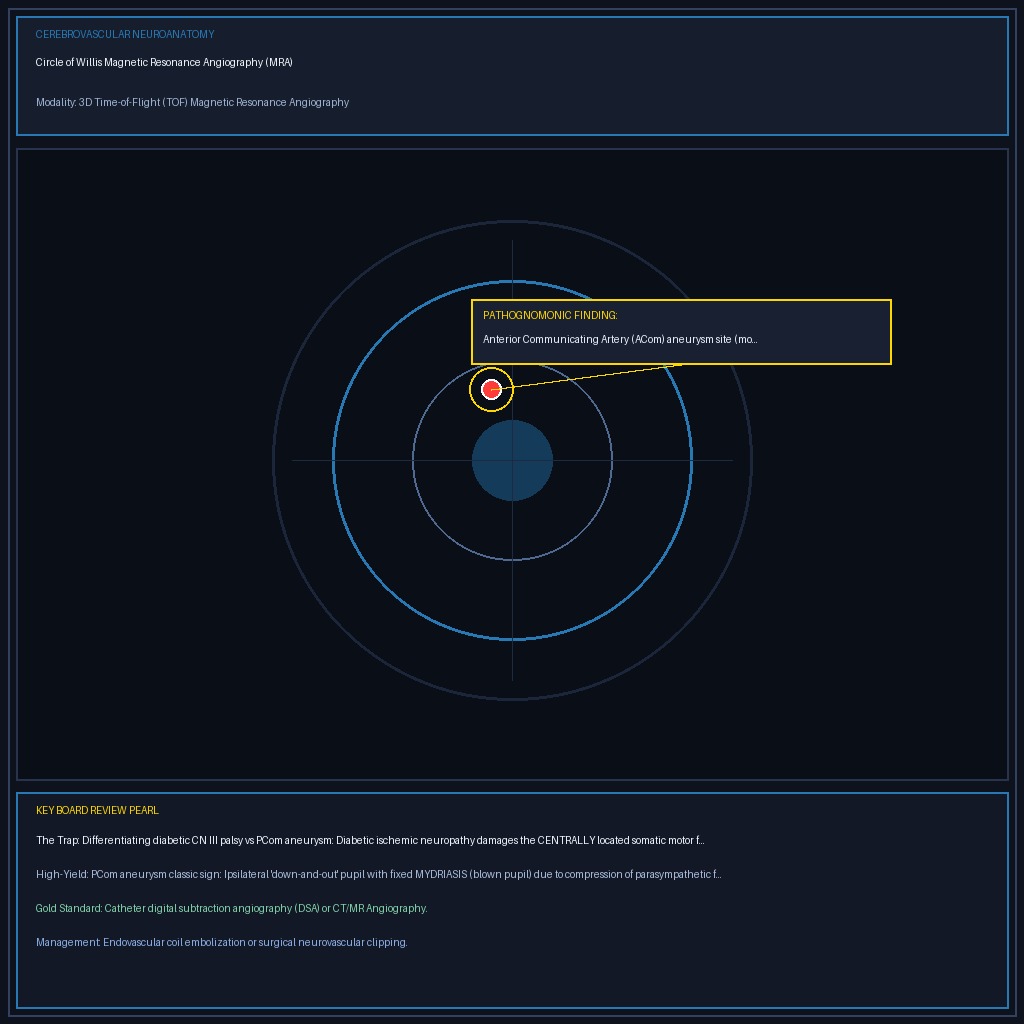

Circle of Willis Saccular (Berry) Aneurysms & Neurologic Deficits

Anterior Communicating (ACom) ~40% (Most Common)

Compression: Compresses the Optic Chiasm → Bitemporal Hemianopsia.

Ischemia / Rupture: Ruptures into subarachnoid space (thunderclap headache); anterior cerebral artery ischemia causes contralateral leg paresis and abulia / executive dysfunction.

Posterior Communicating (PCom) ~20%

Compression: Compresses adjacent CN III (Oculomotor nerve).

Hallmark: Ipsilateral blown pupil (mydriasis) with ptosis and "down-and-out" eye. Parasympathetic pupillomotor fibers run superficial on CN III and are compressed first!

Middle Cerebral Artery (MCA) ~30%

Bifurcation: Most commonly located at the first major bifurcation of the MCA in the sylvian fissure.

Deficits: Rupture causes contralateral face and upper extremity weakness, sensory loss, and aphasia (dominant left hemisphere) or hemineglect (right hemisphere).

Ventricular CSF Circulation Route & Hydrocephalus Subtypes

Step-by-Step CSF Pathway:

Lateral Ventricles (Choroid Plexus) → Foramina of Monro → Third Ventricle → Cerebral Aqueduct of Sylvius → Fourth Ventricle → Foramina of Luschka (lateral) & Magendie (medial) → Subarachnoid Space → Arachnoid Granulations → Superior Sagittal Sinus

Noncommunicating (Obstructive)

Physical blockage inside ventricular system. Aqueductal stenosis causes enlargement of lateral and 3rd ventricles with normal 4th ventricle. Colloid cyst blocks foramen of Monro.

Communicating (Nonobstructive)

Impaired resorption by arachnoid villi (scarring from bacterial meningitis or subarachnoid hemorrhage) → symmetric enlargement of all four ventricles.

Normal Pressure Hydrocephalus (NPH)

Triad of "Wet, Wacky, Wobbly": Magnetic gait ataxia (wobbly), urinary incontinence (wet), dementia (wacky). Normal LP opening pressure; gait improves after lumbar puncture tap test!

Developmental Biology

Embryology, Branchial Apparatus, Organogenesis & Teratogens

Master germ layer derivatives, pharyngeal arches/pouches, cardiovascular septation, gut rotation anomalies, and high-yield pharmacologic teratogenicity.

Early Embryology Timeline

Weeks 1–4 Developmental Milestones & Gastrulation

Rule of 2s • Rule of 3s • Primary Neurulation

Week 1 Day 0–6

Cleavage → Blastocyst Implantation

Fertilization in ampulla of fallopian tube → Zygote.

Rapid mitotic divisions form a 16-cell compact ball: Morula (day 3–4). Fluid enters to form the Blastocyst (day 5) containing:

Inner Cell Mass (Embryoblast): Gives rise to the embryo proper.
Trophoblast (Outer Mass): Gives rise to fetal placenta.

Day 6: Blastocyst implants into posterior uterine wall. Trophoblast begins producing β-hCG!

Week 2 "Rule of 2s"

Bilaminar Embryonic Disc

Embryoblast splits into 2 germ layers:

Epiblast: Dorsal columnar layer; gives rise to all 3 definitive embryonic germ layers!
Hypoblast: Ventral cuboidal layer; forms primary yolk sac lining.

Trophoblast splits into 2 functional layers:

Cytotrophoblast: Cellular inner layer (mononuclear, mitotic stem cells).
Syncytiotrophoblast: Outer multinucleated invasive syncytium; invades spiral arteries; secretes β-hCG.

2 Cavities: Amniotic cavity & Yolk sac. Syncytiotrophoblast lacks MHC-I to evade maternal rejection!

Week 3 "Rule of 3s"

Gastrulation & Trilaminar Disc

Gastrulation: Primitive streak forms in epiblast at caudal end. Epiblast cells invaginate:

1st wave displaces hypoblast → Endoderm.
2nd wave migrates between layers → Mesoderm.
Remaining dorsal epiblast → Ectoderm.

Notochord: Epiblast migrating through primitive node forms cellular notochord cord.

Signaling: Notochord secretes Sonic Hedgehog (Shh) → induces overlying ectoderm into Neural Plate. Adult remnant = nucleus pulposus!

Week 4 "Rule of 4s"

Neurulation & 3D Body Folding

Neurulation: Neural plate elevates and fuses into Neural Tube.

Cranial Neuropore: Closes Day 25 (failure → Anencephaly).
Caudal Neuropore: Closes Day 27–28 (failure → Spina Bifida / myelomeningocele; elevated MSAFP & AChE).

Embryonic Folding: Cephalocaudal and lateral folding transforms flat 2D disc into 3D cylindrical tube.

Milestones: 4 limb buds appear, 4 heart chambers begin developing, primitive gut tube forms!

Trilaminar Embryonic Disc

Primary Germ Layer Derivatives Master Compendium

Surface Ectoderm • Neural Crest • Mesoderm • Endoderm

Ectoderm (Surface & Tube)

Surface Ectoderm & Neuroectoderm

Surface Ectoderm: Epidermis, hair, nails, lens and cornea of eye, inner ear, enamel of teeth, anterior pituitary (Rathke pouch), anal canal below pectinate line, parotid gland.

Neuroectoderm (Neural Tube): Central Nervous System (brain, spinal cord), posterior pituitary (neurohypophysis), retina, optic nerve, pineal gland, astrocytes, oligodendrocytes, ependymal cells.

Board Clue: Craniopharyngioma arises from surface ectoderm remnants of Rathke pouch!

Neural Crest (MOTEL PASS)

Neural Crest Cell Migration

Multipotent migratory cells forming diverse peripheral tissues. Memorize via "MOTEL PASS":

M: Melanocytes
O: Odontoblasts (dentin)
T: Tracheal & thyroid cartilages
E: Enterochromaffin-like cells (Auerbach/Meissner)
L: Laryngeal cartilages
P: Parafollicular C cells (calcitonin)
A: Adrenal medulla (chromaffin cells)
S: Schwann cells & Spiral septum (heart)
S: Sympathetic chain & Sensory dorsal root ganglia

Defects: Hirschsprung disease, Treacher Collins, Tetralogy of Fallot, Neuroblastoma.

Mesoderm (3 Subdivisions)

Paraxial, Intermediate & Lateral Plate

Paraxial Mesoderm (Somites):
• Sclerotome: Vertebrae, ribs, and axial skeleton.
• Myotome: Skeletal muscles of trunk and limbs.
• Dermatome: Dermis of dorsal back.

Intermediate Mesoderm: Kidneys, ureters, gonads (testes/ovaries), genital ducts (Wolffian/SEED), and adrenal cortex.

Lateral Plate Mesoderm:
• Somatic (Parietal): Parietal peritoneum, pleura, pericardium, limb skeleton.
• Splanchnic (Visceral): Visceral serosa, heart, blood vessels, GI tract wall smooth muscle/connective tissue.

Immune & Spleen: Spleen (mesodermal, celiac blood supply!), microglia (monocyte/macrophage origin).

Endoderm

Epithelial Linings & Glands

GI Epithelial Lining: Gut lumen from pharynx down to pectinate line of anal canal, liver, gallbladder, pancreas (islets & acini).

Respiratory Epithelium: Trachea, bronchi, alveoli (Type I and Type II pneumocytes).

Endocrine & Lymphoid: Thyroid follicular cells, parathyroid glands, thymus.

Urinary Epithelium: Epithelial lining of urinary bladder and female urethra, lower 2/3 of vagina.

Fetal Membranes & Circulation

Twinning Dynamics, Fetal Shunt Remnants & Amniotic Fluid Homeostasis

Chorionicity • Shunt Obliteration • Oligo vs. Polyhydramnios

Monozygotic Twinning Cleavage Timeline & Placental Architecture

Days 0–4 (Morula Split) Dichorionic, Diamniotic (di/di)

2 separate placentas (or fused) and 2 separate amniotic sacs. Thick 4-layer dividing membrane (amnion-chorion-chorion-amnion). Lowest complication risk.

Days 4–8 (Blastocyst ICM Split) Monochorionic, Diamniotic (mono/di)

1 shared placenta, 2 separate amniotic sacs. Thin 2-layer membrane ("T-sign"). ~75% of monozygotic twins. High risk of Twin-Twin Transfusion Syndrome (TTTS) due to unbalanced AV placental shunts!

Days 8–12 (Bilaminar Disc Split) Monochorionic, Monoamniotic (mono/mono)

1 single placenta, 1 single shared amniotic sac with NO dividing membrane. High risk of cord entanglement, knotting, and fetal demise (>50% without intensive monitoring).

> Day 13 (Primitive Streak Failure) Conjoined Twins

Incomplete cleavage of the embryonic disc after gastrulation has commenced. Classified by site of attachment (thoracopagus, craniopagus, omphalopagus).

Fetal Vascular Shunts & Adult Anatomical Remnants

Fetal Structure	Fetal Function & Oxygenation	Adult Anatomical Remnant	High-Yield Board Malformation / Scenario
Umbilical Vein (1)	Carries oxygenated blood (SaO2 ~80%) from placenta to liver/IVC	Ligamentum Teres Hepatis (Round Ligament)	Courses within falciform ligament; recanalizes in portal hypertension → Cruveilhier-Baumgarten murmur, caput medusae.
Ductus Venosus	Shunts ~50% of oxygenated umbilical blood past hepatic sinusoids directly into IVC	Ligamentum Venosum	Fissure for ligamentum venosum separates left lobe from caudate lobe on visceral liver surface.
Foramen Ovale	Shunts oxygenated blood from Right Atrium directly into Left Atrium (bypassing lungs)	Fossa Ovalis	Patent Foramen Ovale (PFO): Failure of septum primum & secundum fusion. Permits paradoxical embolism (lower extremity DVT crosses to systemic arterial circulation → cryptogenic stroke!).
Ductus Arteriosus	Shunts high-resistance pulmonary artery blood into descending aorta	Ligamentum Arteriosum	Patent Ductus Arteriosus (PDA): Continuous "machine-like" murmur; differential cyanosis. Kept open by PGE2; closed by Indomethacin / NSAIDs.
Umbilical Arteries (2)	Carry deoxygenated blood from fetal internal iliac arteries back to placenta	Medial Umbilical Ligaments	Form medial umbilical peritoneal folds on anterior abdominal wall; proximal parts remain open as superior vesical arteries.
Urachus (Allantois)	Connects dome of fetal urinary bladder to allantois/umbilicus	Median Umbilical Ligament	Patent Urachus: Urine leaking from umbilicus. Urachal Cyst: Midline fluid collection; predisposes to urachal adenocarcinoma at dome of bladder! Urachal Sinus: Blind-ended pouch at umbilicus.
Vitelline Duct (Omphalomesenteric)	Connects yolk sac to primitive midgut lumen	Obliterated / Disappears	Meckel Diverticulum: Persistent vitelline duct remnant on antimesenteric border of ileum. Rule of 2s: 2% population, 2 inches, 2 feet from ileocecal valve, 2 ectopic tissues (gastric → ulceration/painless bleeding, pancreatic). Diagnosed with Tc-99m pertechnetate scan.

Oligohydramnios AFI < 5 cm

Mechanisms & Potter Sequence

Causes: Bilateral renal agenesis, Posterior Urethral Valves (males), ARPKD, placental insufficiency, maternal ACE inhibitors / ARBs.

Potter Sequence Cascade: Lack of amniotic fluid cushion causes fetal compression:

Pulmonary Hypoplasia: Primary cause of neonatal death!
Facial Dysmorphism (Potter Facies): Low-set ears, retrognathia, flattened nose.
Limb Deformities: Clubbed feet (talipes equinovarus).

Polyhydramnios AFI > 24 cm

Mechanisms & Maternal-Fetal Sequelae

Causes: Failure of fetal swallowing or high fetal urine output:

Impaired Swallowing: Anencephaly (absent neural control), Esophageal Atresia with TEF, Duodenal Atresia (Down syndrome).
High Output: Maternal Gestational Diabetes (fetal hyperglycemia → osmotic diuresis), Twin-Twin Transfusion (recipient twin), Fetal anemia / Hydrops fetalis.

Complications: Uterine overdistension → Preterm labor, placental abruption, and postpartum uterine atony / hemorrhage.

Craniofacial Organogenesis

Pharyngeal (Branchial) Arches, Pouches & Clefts

Clefts = Ectoderm • Arches = Mesoderm/Crest • Pouches = Endoderm

Apparatus Unit	Cranial Nerve	Skeletal & Cartilage Structures	Muscular Derivatives	Endodermal Pouches / Ectodermal Clefts
1st Pharyngeal Arch	CN V3 (Mandibular)	Maxilla, Mandible, Malleus, Incus, Sphenomandibular ligament, Meckel cartilage	Muscles of mastication (temporalis, masseter, medial/lateral pterygoids), Mylohyoid, Anterior digastric, Tensor tympani, Tensor veli palatini	Pouch 1: Middle ear cavity, Eustachian tube, Mastoid air cells. Cleft 1: External auditory meatus.
2nd Pharyngeal Arch	CN VII (Facial)	Stapes, Styloid process, Lesser horn of hyoid, Stylohyoid ligament (Reichert cartilage)	Muscles of facial expression, Stapedius, Stylohyoid, Posterior belly of digastric	Pouch 2: Epithelial lining of palatine tonsillar crypts. Cleft 2–4: Cervical sinus (obliterated; persistent = branchial cleft cyst).
3rd Pharyngeal Arch	CN IX (Glossopharyngeal)	Greater horn and body of hyoid bone	Stylopharyngeus muscle (elevates pharynx during swallowing)	Pouch 3: Inferior parathyroid glands & Thymus. (Defective in DiGeorge syndrome 22q11 deletion!).
4th & 6th Pharyngeal Arches	CN X (4th: Superior laryngeal; 6th: Recurrent laryngeal)	Laryngeal cartilages: Thyroid, Cricoid, Arytenoid, Corniculate, Cuneiform	4th: Pharyngeal constrictors, Cricothyroid, Levator veli palatini. 6th: All intrinsic muscles of larynx (except cricothyroid).	Pouch 4: Superior parathyroid glands & Ultimobranchial bodies (Parafollicular C cells of thyroid).

Pharyngeal Pouch Mnemonic: "Ear, Tonsil, Bottom-to-Top"

1st Pouch: Ear → Middle ear cavity, Eustachian tube, tympanic membrane interior.
2nd Pouch: Tonsil → Palatine tonsil epithelial lining & crypts.
3rd Pouch: Bottom → Inferior parathyroid glands + Thymus (descends into mediastinum).
4th Pouch: Top → Superior parathyroid glands + Parafollicular C cells.

Branchial Cleft Cyst vs. Thyroglossal Duct Cyst

Branchial Cleft Cyst (Lateral Neck): Failure of 2nd–4th pharyngeal clefts to obliterate → painless fluid-filled mass along the anterior border of the SCM. Does NOT move with swallowing or tongue protrusion!

Thyroglossal Duct Cyst (Midline): Persistent thyroglossal duct tract from foramen cecum. Classic midline anterior neck mass that MOVES UPWARD with swallowing and tongue protrusion.

Head & Neck Embryology Arches 1–6 • Pouches 1–4 • Clefts 1–4

Pharyngeal Apparatus Architecture (Arches, Pouches & Clefts)

Complete branchial arch nerves (V3, VII, IX, X), muscular and skeletal derivatives (malleus/incus, stapes, stylopharyngeus, cricothyroid vs recurrent laryngeal), pouch derivatives (tympanic cavity, palatine tonsils, inferior parathyroids + thymus, superior parathyroids), and DiGeorge vs Treacher Collins syndromes.

Board Pearl: Mnemonic: "3 goes low, 4 stays high". Pouch 3 forms the inferior parathyroids & thymus; Pouch 4 forms the superior parathyroids. DiGeorge syndrome deletes 22q11 → 3rd & 4th pouch failure.

Cardiovascular Embryology Arches 1–6 • Recurrent Laryngeal Nerve Loop

Aortic Arch Derivatives & RLN Asymmetry

Complete 1st–6th aortic arch fates (1st: maxillary; 2nd: stapedial; 3rd: common carotid; 4th: left aorta / right subclavian; 6th: pulmonary & ductus arteriosus) and the embryologic basis of left vs right recurrent laryngeal nerve looping.

Board Pearl: The Left RLN loops around the aortic arch (distal to ligamentum arteriosum / 6th arch) in the thorax; the Right RLN loops around the right subclavian artery (4th arch) in the neck!

Cardiovascular Embryology

Truncus & Bulbus Cordis: Truncus Arteriosus → Ascending aorta & pulmonary trunk.
Bulbus Cordis → Smooth outflow tracts (aortic vestibule & conus arteriosus).

Primitive Atrium / Ventricle / Sinus Venosus: Primitive atrium/ventricle → Trabeculated walls.
Sinus Venosus: Left horn → Coronary sinus; Right horn → Smooth right atrium (sinus venarum).

Aortic Arches 1–6: 1st = Maxillary a.; 3rd = Common Carotid a.; 4th = Aortic arch (left) / Subclavian (right); 6th = Pulmonary arteries & Ductus Arteriosus.

GI Rotation & Atresias

Midgut Rotation & Omphalocele: Midgut herniates at week 6, rotates 270° counterclockwise around SMA, returns at week 10.
Omphalocele: Midline, covered by peritoneum (trisomy 13/18).
Gastroschisis: Lateral right full-thickness defect, uncovered bowel.

Duodenal vs. Jejunal/Ileal Atresia: Duodenal: Failure of recanalization, "double bubble", Down syndrome.
Jejunal/Ileal: Mesenteric vascular accident / ischemic necrosis, "apple-peel" appearance.

Meckel Diverticulum & Hirschsprung: Meckel: Persistent vitelline duct, ectopic gastric/pancreatic tissue, painless GI bleed in toddler.
Hirschsprung: Neural crest failure → aganglionic colon, delayed meconium >48h.

Renal Organogenesis

Metanephros Dual Origin (Week 5): Ureteric Bud: Ureter, renal pelvis, calyces, collecting ducts.
Metanephric Mesenchyme (Blastema): Glomeruli, Bowman capsule, PCT, Henle loop, DCT. Reciprocal induction required!

Potter Sequence: Bilateral renal agenesis → Oligohydramnios → Pulmonary hypoplasia (cause of death), flattened facial features, clubbed feet.

Horseshoe Kidney: Inferior poles fuse anterior to aorta; ascent blocked by Inferior Mesenteric Artery (IMA) at L3. Associated with Turner syndrome.

Conotruncal Septation Heart Tube Segments • Cyanotic 5 Ts

Cardiovascular Embryology & Conotruncal Defects

Complete heart tube segment fates (truncus arteriosus, bulbus cordis, primitive ventricle/atrium, sinus venosus horns) and neural crest conotruncal septation defects: Tetralogy of Fallot (PROVe), Transposition of Great Arteries (TGA), and Persistent Truncus Arteriosus.

Board Pearl: Tetralogy of Fallot is caused by anteriorsuperior displacement of infundibular septum. Squatting during a tet spell increases SVR → reverses R-to-L shunt.

GI Embryology 270° CCW Rotation • Ladd Bands • Omphalocele vs Gastroschisis

Midgut 270° Rotation & Abdominal Wall Closure

Complete timeline: Week 6 herniation, 270° counterclockwise rotation around SMA, Week 10 return; Malrotation with Ladd bands and midgut volvulus; Omphalocele (midline, peritoneal sac) vs Gastroschisis (lateral right, exposed bowel); and Meckel diverticulum (vitelline duct persistence).

Board Pearl: Meckel diverticulum is the persistence of the vitelline duct on antimesenteric border of ileum. Omphalocele is covered by a SAC; Gastroschisis is NAKED and lateral!

Genitourinary Development Wolffian vs. Müllerian • Ureteric Bud • Horseshoe Kidney

Urogenital Duct Differentiation & Renal Migration

Complete internal duct fate under SRY/AMH/Testosterone (Wolffian SEED vs Müllerian tubes/uterus/upper vagina), reciprocal induction between Ureteric Bud and Metanephric Blastema, Horseshoe Kidney entrapment under IMA at L3, and Bicornuate vs Septate uterus.

Board Pearl: Horseshoe kidney ascends until trapped by Inferior Mesenteric Artery (IMA) at L3. Ureteric bud derives from mesonephric duct; metanephric blastema forms nephrons.

Teratology Timeline Weeks 3–8 Organogenesis • 6 Classic Board Syndromes

Teratogen Susceptibility & Toxic Syndromes

Complete timeline of vulnerability (Weeks 1–2 all-or-none vs Weeks 3–8 organogenesis structural malformations) and hallmark drug syndromes: ACE-I (Potter sequence), Isotretinoin (neural crest), Thalidomide (phocomelia), Valproate (NTDs), Lithium (Ebstein anomaly), Warfarin (stippled epiphyses), and DES.

Board Pearl: Maternal ACE-inhibitor use causes fetal renal dysgenesis → oligohydramnios → Potter sequence with pulmonary hypoplasia (cause of death).

Genitourinary Organogenesis

Renal Systems, Duct Regression & External Genitalia Homologies

Wolffian vs. Müllerian • SRY • Tubercle / Folds / Sinus

Week 4

1. Pronephros

Cervical segment nephrotomes. Completely non-functional in humans; regresses and degenerates completely by week 4.

Weeks 4–8

2. Mesonephros

Interim excretory kidney in 1st trimester. Tubules and duct persist in males to form parts of the male genital ductal system.

Week 5 → Permanent

3. Metanephros (Permanent)

Formed by reciprocal inductive signaling:
• Ureteric Bud: Ureter, renal pelvis, calyces, collecting ducts.
• Metanephric Blastema: Glomeruli, Bowman capsule, PCT, Henle loop, DCT.

Genetic Sex Determination & Internal Duct Differentiation

Male (46,XY) Internal Pathway

SRY gene on Y chromosome encodes Testis-Determining Factor (TDF) → primitive sex cords become testes:

Sertoli Cells: Secrete Anti-Müllerian Hormone (AMH / MIF) → regression of Paramesonephric (Müllerian) ducts.
Leydig Cells: Secrete Testosterone → stimulates Mesonephric (Wolffian) ducts to develop into "SEED" (Seminal vesicles, Epididymis, Ejaculatory duct, Ductus deferens).

Female (46,XX) Internal Pathway

Default pathway in absence of SRY, AMH, and Testosterone:

Wolffian Ducts: Degenerate automatically without testosterone stimulation.
Müllerian Ducts: Persist and fuse in midline → Fallopian tubes, Uterus, Cervix, and Upper 1/3 of Vagina.
Müllerian Fusion Anomalies: Septate uterus (failed resorption of central septum; recurrent miscarriages), Bicornuate uterus (incomplete fundal fusion).

External Genitalia Homologies & Congenital Malformations

Embryonic Structure	Male Homologue (driven by DHT)	Female Homologue (Estrogen / Default)	Clinical Pathology & Board Pearl
Genital Tubercle	Glans penis, Corpus cavernosum & spongiosum	Glans clitoridis, Corpus cavernosum clitoridis, Bulbs of vestibule	Epispadias: Abnormal dorsal urethral opening on top of penis from faulty tubercle positioning; strongly associated with bladder exstrophy.
Urogenital (Urethral) Folds	Ventral shaft of penis (spongy urethra)	Labia minora	Hypospadias: Failure of urethral folds to fuse on ventral aspect of penis → ventral urethral opening. Do NOT circumcise (prepuce needed for repair!).
Urogenital Sinus	Prostate gland, Bulbourethral (Cowper) glands	Greater vestibular (Bartholin) glands, Skene glands, Lower 2/3 of vagina	Dual vaginal origin: Upper 1/3 from paramesonephric ducts (mesoderm); lower 2/3 from urogenital sinus (endoderm). Imperforate hymen = persistent membrane at junction.
Labioscrotal Swellings	Scrotum	Labia majora	Virilization of labioscrotal swellings occurs in 46,XX Congenital Adrenal Hyperplasia (21-hydroxylase deficiency → androgen excess → ambiguous genitalia).

Clinical Pharmacology & Toxicology

High-Yield Board Teratogen Matrix

12 Classic Drug-Induced Congenital Malformations

Teratogenic Agent	Target Organ System	Specific Congenital Malformation Pattern	Board Exam Scenario & Mechanism
ACE inhibitors / ARBs	Renal & Craniofacial	Renal dysgenesis, oligohydramnios sequence, hypocalvaria (skull bone hypoplasia)	Angiotensin II essential for fetal renal development; blockade causes fetal anuria and pulmonary hypoplasia.
Isotretinoin (Retinoids)	Craniofacial, Cardiac & CNS	Microtia (external ear absence), thymic aplasia, cleft palate, hydrocephalus, conotruncal heart defects	Disrupts Hox gene expression and neural crest cell migration. Strict iPLEDGE program: 2 negative pregnancy tests + 2 birth control methods.
Lithium	Cardiovascular	Ebstein Anomaly: Apical displacement of tricuspid leaflets → severe tricuspid regurgitation, "atrialization" of right ventricle	Used for bipolar disorder; maternal lithium exposure causes massive right atrial enlargement and cyanosis in neonate.
Valproate & Carbamazepine	Central Nervous System	Neural tube defects (Myelomeningocele / Spina bifida), fingernail hypoplasia, developmental delay	Inhibits folate absorption; maternal supplementation requires 4 mg/day of folic acid in women taking antiepileptic drugs.
Phenytoin	Fetal Hydantoin Syndrome	Microcephaly, dysmorphic craniofacial features, cleft lip/palate, hypoplastic nails & distal phalanges, cardiac defects	Anticonvulsant causing oxidative stress and folate disruption during organogenesis.
Warfarin	Skeletal & CNS	Nasal bone hypoplasia, stippled epiphyses (chondrodysplasia punctata), optic atrophy, microcephaly	Inhibits vitamin K gamma-carboxylation of osteocalcin. Heparin does NOT cross the placenta and is anticoagulant of choice in pregnancy!
Thalidomide	Musculoskeletal	Phocomelia (flipper limbs), amelia, micromelia of long bones	Historically prescribed for morning sickness; binds cereblon to degrade angiogenic transcription factors in limb buds.
Tetracyclines (Doxycycline)	Teeth & Bones	Permanent tooth discoloration (yellow-brown staining), enamel hypoplasia, inhibition of long bone growth	Chelates divalent calcium ions in developing teeth and bones; contraindicated in pregnancy and children <8 years.
Aminoglycosides (Gentamicin)	Auditory / Vestibular	Congenital sensorineural deafness and vestibular toxicity (CN VIII damage)	Accumulates in endolymph and destroys hair cells of the cochlea.
Fetal Alcohol Syndrome (FAS)	Neurodevelopmental & Facies	Smooth philtrum, thin upper vermilion border, short palpebral fissures, microcephaly, intellectual disability, VSD/ASD	Most common preventable cause of intellectual disability in the United States. Impairs cell migration and neuronal apoptosis.

Body Cavities & Surgical Planes

Thoracoabdominal Cavities, Portocaval Shunts & Pelvic Anatomy

Mediastinal compartments, diaphragm apertures, portocaval anastomoses, groin hernias, retroperitoneal boundaries, and pudendal pelvic nerve blocks.

Diaphragm Apertures & Hiatal Hernias

"I 8 10 Eggs At 12"

T8: Caval Opening (Vena Cava Hiatus)

Central Tendon

Contents: Inferior Vena Cava (IVC) and terminal branches of the Right Phrenic Nerve. Pierces the central tendon (dilates during inspiration to facilitate venous return!).

T10: Esophageal Hiatus

Right Crus

Contents: Esophagus, Anterior and Posterior Vagal Trunks, esophageal branches of left gastric vessels. Formed by muscular fibers of the right crus of diaphragm.

Hiatal Hernias: Sliding (Type 1, 95%): Gastroesophageal junction slides upward into posterior mediastinum; causes GERD. Paraesophageal (Type 2): GE junction stays in normal position, but gastric fundus herniates beside esophagus; high risk of strangulation!

T12: Aortic Hiatus

Median Arcuate Ligament

Contents: Abdominal Aorta, Thoracic Duct, and Azygos Vein. Passes behind the median arcuate ligament; does not pierce diaphragmatic muscle (blood flow unaffected by breathing!).

Congenital Diaphragmatic Hernias

Bochdalek vs. Morgagni

Bochdalek Hernia (85–90%): Posterolateral pleuroperitoneal membrane defect; Bochdalek = Back and Left. Abdominal viscera compress fetal lung → severe pulmonary hypoplasia (cause of death). Morgagni Hernia: Rare anteromedial retrosternal defect.

Mediastinal Compartments & Masses

The 4 "T"s

Anterior Mediastinum (The 4 "T"s)

Thymoma • Thyroid • Teratoma • Terrible Lymphoma

Bounded anteriorly by sternum, posteriorly by pericardium and great vessels. Classic anterior mediastinal masses:

Thymoma: Strongly associated with Myasthenia Gravis (anti-AChR antibodies) and Pure Red Cell Aplasia.
Thyroid: Substernal ectopic thyroid or multinodular goiter plunging into thoracic inlet.
Teratoma / Germ Cell: Mature teratoma, seminoma, choriocarcinoma, endodermal sinus tumor.
Terrible Lymphoma: Hodgkin lymphoma (nodular sclerosis subtype in young females) with Reed-Sternberg cells.

Middle Mediastinum

Heart & Cysts

Contains pericardium, heart, ascending aorta, pulmonary trunk, phrenic nerves, tracheobronchial lymph nodes. Masses: Bronchogenic cysts, pericardial cysts, lymphoma, aortic arch aneurysms.

Posterior Mediastinum

Neurogenic Tumors

Contains thoracic aorta, esophagus, thoracic duct, azygos/hemiazygos veins, vagus nerves, sympathetic trunk. Masses: Neurogenic tumors (Schwannoma, neurofibroma, neuroblastoma in pediatrics), esophageal tumors.

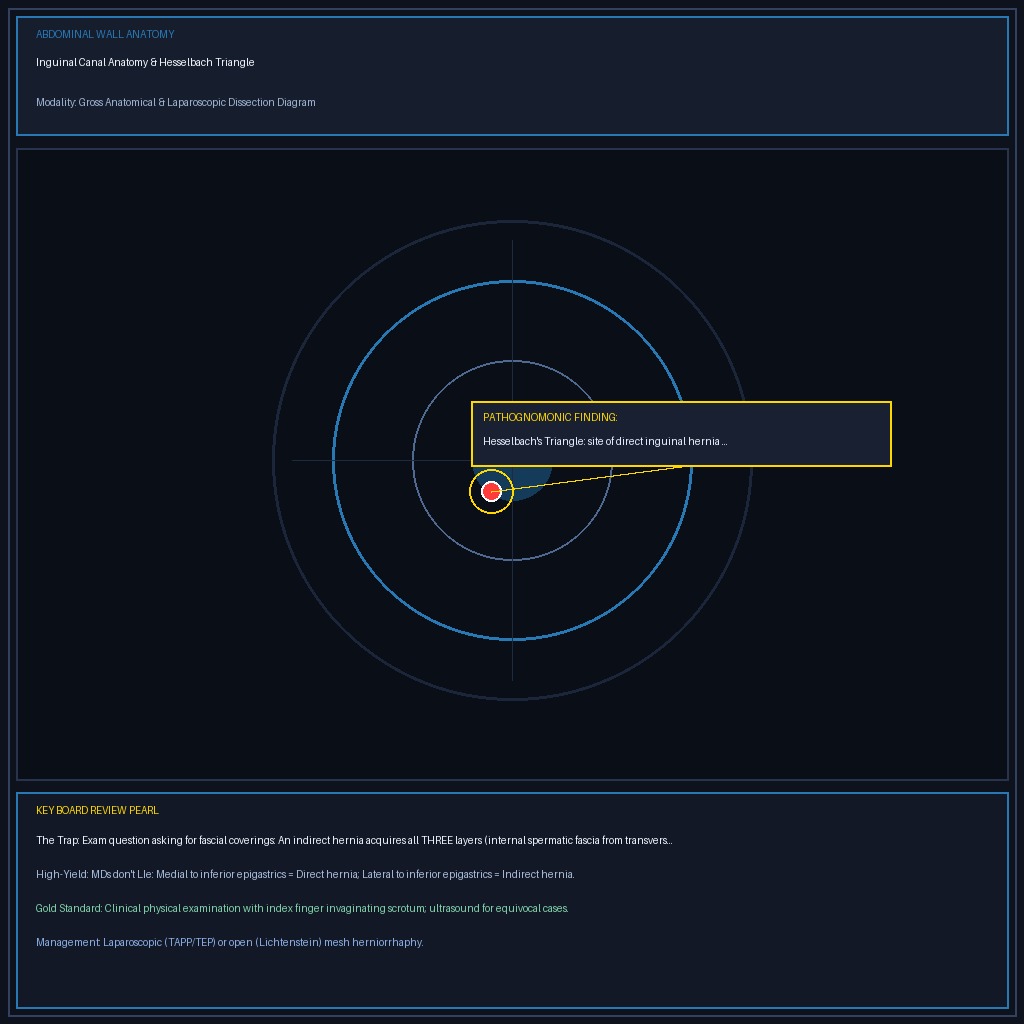

Thoracoabdominal Topography Apertures T8/T10/T12 • Inguinal Canal & Hernias • Nutcracker

Diaphragmatic Apertures, Inguinal Canal & Retroperitoneal Traps

Complete diaphragm levels (T8 IVC, T10 Esophagus/Vagus, T12 Aorta/Thoracic duct/Azygos "I 8 10 Eggs At 12"), Inguinal canal & Hesselbach triangle (Direct medial vs Indirect lateral to inferior epigastrics), Femoral hernia canal, and Left Renal Vein nutcracker compression under SMA.

Board Pearl: Mnemonic: "MDs don't lie" → Medial to epigastrics = Direct hernia; Lateral = Indirect hernia. Left renal vein compression under SMA causes left varicocele.

Thoracic Topography & Electrophysiology

Pulmonary Hilum (RALS), Dependent Aspiration & Triangle of Koch Conduction

RALS • Supine vs. Upright • AV Nodal Koch • Coronary Dominance

Hilar Vascular Architecture

Pulmonary Hilum: "RALS" Rule

Relationship of the Pulmonary Artery to the Mainstem Bronchus at the lung hilum:

Right pulmonary artery is Anterior to right bronchus (RA).
Left pulmonary artery is Superior to left bronchus (LS).

Bronchus Geometry: The Right Mainstem Bronchus is wider, shorter, and runs more vertically (25° from vertical vs 45° left) → foreign bodies and aspirates preferentially lodge in right lung!

Aspiration Pneumonia Topography

Dependent Bronchopulmonary Segments

Aspiration pneumonia and lung abscess localize according to patient posture at the time of aspiration:

Supine Position (e.g. Alcoholic / Seizure / Coma): Aspirate flows into the Superior (Apical) segment of the Right Lower Lobe (RLL) or the Posterior segment of the Right Upper Lobe (RUL).
Upright / Standing Position: Aspirate gravitates into the Posterior Basal segment of the Right Lower Lobe (RLL).

Cardiac Nodes, Triangle of Koch Boundaries & Coronary Dominance

Sinoatrial (SA) Node

Located subepicardially in the crista terminalis at the junction of the SVC and Right Atrium.

Arterial supply: SA Nodal Artery (branch of RCA in ~60%; LCx in ~40%).

Atrioventricular (AV) Node & Koch

Located in the posteroinferior interatrial septum within the Triangle of Koch:

Tendon of Todaro (superior)
Septal tricuspid leaflet (inferior)
Coronary sinus ostium (base)

Supplied by AV nodal artery from PDA.

Coronary Dominance & Papillary Muscle

Dominance determined by origin of Posterior Descending Artery (PDA):

• Right Dominant (85–90%): PDA from RCA.
• Left Dominant (10%): PDA from LCx.

Posteromedial Papillary Muscle has single supply (PDA); ruptures in inferior MI → acute severe MR!

Mediastinal Topography

Transverse Thoracic Plane (Sternal Angle of Louis / T4–T5)

RAT PLANT Mnemonic • Mediastinal Demarcation

The transverse thoracic plane is an imaginary horizontal line passing from the sternal angle of Louis (junction of manubrium and sternal body) anteriorly to the intervertebral disc between T4 and T5 posteriorly. It serves as the primary anatomical boundary dividing the superior mediastinum from the inferior mediastinum (which is further subdivided into anterior, middle, and posterior compartments by the pericardial sac).

Rib 2

Articulates at sternal angle; starting point for counting ribs

Aortic Arch

Ascending aorta ends; arch begins & arches posteriorly to become descending aorta

Tracheal Carina

Trachea bifurcates into right and left mainstem bronchi

Pulmonary Trunk

Bifurcates into right and left pulmonary arteries beneath aortic arch

Left Recurrent Laryngeal

Loops under aortic arch and ligamentum arteriosum to ascend tracheoesophageal groove

Azygos Vein

Arches over root of right lung to empty into the Superior Vena Cava

Nerves

Deep cardiac plexus located on anterior tracheal bifurcation

Thoracic Duct

Crosses from right side to left side behind esophagus at T4–T5

Hepatic Hemodynamics

Portocaval (Portosystemic) Anastomoses & Clinical Sequelae

Cirrhosis • Portal HTN • TIPS Shunting

Clinical Site	Portal Venous System	Systemic (Caval) Venous System	Pathophysiology in Portal Hypertension	Clinical Presentation & Treatment
Gastroesophageal Junction	Left Gastric Vein (Coronary)	Azygos Vein → Superior Vena Cava	Retrograde portal flow through left gastric vein dilates submucosal esophageal veins into tortuous collaterals.	Esophageal Varices: Massive, life-threatening upper GI bleeding (hematemesis). Treat with Octreotide, endoscopic band ligation, non-selective beta-blockers (propranolol, nadolol).
Umbilicus (Anterior Abdominal Wall)	Paraumbilical Veins (Ligamentum teres)	Superficial & Inferior Epigastric Veins	Recanalization of the umbilical vein in the falciform ligament shuttles portal blood outward into abdominal subcutaneous veins.	Caput Medusae: Radiating engorged periumbilical subcutaneous veins. Blood flows radiating outward away from umbilicus (differentiates from IVC obstruction where flow is entirely cephalad!).
Anorectal Junction	Superior Rectal Vein (from IMV)	Middle & Inferior Rectal Veins (Internal Iliac)	Backpressure from inferior mesenteric vein drains laterally and inferiorly into systemic pelvic circulation.	Anorectal Varices: Tortuous submucosal collaterals at pectinate line. Cause painless hematochezia. Note: Internal hemorrhoids are non-cirrhotic venous plexus prolapses, distinct from true varices.
TIPS Procedure (Interventional Radiology)	Portal Vein Branch (Right)	Hepatic Vein (Right) → IVC	Transjugular intrahepatic portosystemic shunt creates an artificial channel directly connecting the portal vein to the hepatic vein.	Decompresses Portal HTN: Controls refractory variceal bleeding and ascites. Major Board Complication: Can precipitate or worsen Hepatic Encephalopathy (unmetabolized neurotoxins like ammonia bypass hepatic processing).

Surgical Peritoneal Anatomy

Peritoneal Ligaments, The Pringle Maneuver & Omental Bursa

Trauma Surgery • Splenectomy Landmarks

Hepatoduodenal Ligament

Pringle Maneuver

Connects liver to 1st part of duodenum; constitutes free edge of lesser omentum. Contains the Portal Triad:

Hepatic Artery Proper
Hepatic Portal Vein
Common Bile Duct

Pringle Maneuver: Clamping this ligament halts hepatic inflow in liver trauma. If bleeding persists, source is the IVC or hepatic veins!

Epiploic Foramen (Winslow)

Lesser Sac Entry

Only natural communication between greater and lesser peritoneal sacs (omental bursa). Strict surgical boundaries:

Anterior: Hepatoduodenal ligament (portal triad)
Posterior: Inferior Vena Cava (IVC)
Superior: Caudate lobe of liver
Inferior: 1st part of duodenum

Splenorenal Ligament

Splenectomy Hazard

Connects spleen to left kidney posterior body wall. Transmits the Splenic Artery and Vein and the Tail of the Pancreas.

Board Trap: During splenectomy, the tail of the pancreas is at high risk of inadvertent transection/ligation → postoperative pancreatitis, pseudocyst, or pancreatic fistula!

Gastrosplenic & Falciform

Vascular Collaterals

Gastrosplenic: Connects greater curvature to spleen; contains Short Gastric Vessels (vulnerable to gastric infarction in splenic a. embolization due to poor collaterals!).

Falciform Ligament: Connects liver to anterior wall; carries Ligamentum Teres Hepatis (remnant of left umbilical vein → recanalizes in caput medusae).

Inguinal & Femoral Hernias Comparison

Definitive surgical differentiation of groin hernia types based on vascular landmarks.

Direct Inguinal Hernia

Medial to Epigastrics

Anatomy: Protrudes through Hesselbach's Triangle (Borders: Rectus abdominis medially, Inferior epigastric vessels laterally, Inguinal ligament inferiorly). Caused by acquired weakness of the transversalis fascia in older men.

Spermatic Coverings: Covered ONLY by external spermatic fascia. Does NOT enter the scrotum; felt on pulp of finger on exam.

Indirect Inguinal Hernia

Lateral to Epigastrics

Anatomy: Enters the deep inguinal ring LATERAL to the inferior epigastric vessels. Caused by failure of the processus vaginalis to close (congenital patent canal). Most common hernia overall (male infants and young adults).

Spermatic Coverings: Covered by all 3 layers of spermatic fascia (internal spermatic, cremasteric, external spermatic). Enters scrotum; touches fingertip on invagination.

Femoral Hernia

Inferior to Inguinal Ligament

Anatomy: Protrudes through the femoral ring into the femoral canal, INFERIOR to the inguinal ligament and MEDIAL to the femoral vein (NAVEL: Nerve, Artery, Vein, Empty space, Lymphatics).

High-Yield Concept: More common in females due to wider pelvis. Has the highest rate of bowel incarceration and strangulation due to narrow, rigid femoral ring!

Inguinal Canal Precise Boundaries & Spermatic Cord Fascial Hierarchy

Canal Boundaries ("MALT: 2M, 2A, 2L, 2T")

Anterior Wall: External Oblique Aponeurosis (plus internal oblique laterally).
Posterior Wall: Transversalis Fascia (reinforced medially by Conjoint Tendon).
Roof (Superior): Arching musculoaponeurotic fibers of Internal Oblique & Transversus Abdominis.
Floor (Inferior): Inguinal Ligament of Poupart and Lacunar Ligament medially.

Spermatic Cord 3 Coverings & Origin

External Spermatic Fascia: Derived from External Oblique Aponeurosis.
Cremasteric Muscle & Fascia: Derived from Internal Oblique Muscle (L1–L2 genital branch of genitofemoral n.).
Internal Spermatic Fascia: Derived from Transversalis Fascia.

Board Pearl: The Transversus Abdominis Muscle contributes NO layer to the spermatic cord! Its arching fibers pass superior to the deep ring.

Parietal Architecture

Abdominal Wall Fascia, Arcuate Line & Specialized Hernias

Camper • Scarpa • Arcuate Shift • Richter • Obturator

Superficial Fascial Layers & Extravasation

Camper's Fascia: Superficial, fatty layer containing subcutaneous fat and cutaneous nerves/vessels. Thickens in obesity.
Scarpa's Fascia: Deeper, thin, membranous layer with minimal fat. Fuses inferiorly with the fascia lata of the thigh just below the inguinal ligament.
Perineal Continuations: Scarpa's fascia continues into the perineum as Colles' fascia and into the scrotum/penis as Dartos fascia.
Clinical Significance: In straddle trauma with anterior urethral rupture (spongiosum), extravasated urine and blood can fill the scrotum, penis, and lower anterior abdominal wall deep to Scarpa's fascia, but cannot spread into the thigh due to Scarpa's attachment to the fascia lata.

Rectus Sheath Shift at Arcuate Line

Superior to Arcuate Line (Upper 3/4):
• Anterior Sheath: External oblique aponeurosis + anterior leaf of internal oblique aponeurosis.
• Posterior Sheath: Posterior leaf of internal oblique aponeurosis + transversus abdominis aponeurosis + transversalis fascia.
Inferior to Arcuate Line (Lower 1/4):
• All 3 aponeuroses (external oblique, internal oblique, transversus abdominis) transition to pass ANTERIOR to the rectus abdominis muscle.
• Posteriorly: Rectus abdominis rests directly on only the transversalis fascia and parietal peritoneum.
Rectus Sheath Hematoma: Inferior epigastric vessels enter the sheath by crossing over the arcuate line; vulnerable to shear rupture during severe coughing (paroxysms) or anticoagulation. Below the arcuate line, hematomas can cross the midline or dissect into the pelvis!

Hernia Eponym	Anatomic Location & Defect	Classic Board Presentation & Traps
Spigelian Hernia	Along the linea semilunaris (lateral edge of rectus abdominis), typically at or near the level of the arcuate line.	Interparietal hernia lying deep to an intact external oblique aponeurosis. Often non-palpable or mistaken for abdominal wall mass; high strangulation rate.
Richter's Hernia	Incarceration of only a portion of the antimesenteric circumference of bowel wall within the hernia ring.	Lethal Trap: Bowel lumen remains patent, allowing flatus/stool passage! Can progress to localized strangulation, necrosis, and perforation WITHOUT signs of mechanical obstruction.
Obturator Hernia	Protrusion through the obturator canal alongside the obturator nerve and vessels into the medial compartment of the thigh.	Elderly, emaciated, multiparous females. Howship-Romberg sign: Inner thigh pain exacerbated by hip extension, adduction, and internal rotation, relieved by hip flexion.
Littre's Hernia	Hernia sac containing a Meckel diverticulum (persistent vitelline duct).	Most commonly found in inguinal (50%), femoral (20%), or umbilical hernias. Prone to painless rectal bleeding or perforation.
Pantaloon Hernia	Simultaneous direct AND indirect hernia sacs straddling the inferior epigastric vessels.	Saddlebag hernia presentation; both the deep inguinal ring and Hesselbach's triangle floors are defective.

Gastrointestinal Organogenesis & Perfusion

Pancreatic Buds, Annular Pancreas & Intestinal Watershed Zones

Ventral vs. Dorsal Buds • Griffith Point • Sudeck Point

Pancreatic Buds Annular Pancreas

Ventral vs. Dorsal Bud Fates

Ventral Pancreatic Bud: Arises from hepatic diverticulum; forms the uncinate process, inferior head, and main pancreatic duct (of Wirsung).

Dorsal Pancreatic Bud: Forms superior head, neck, body, tail, and accessory pancreatic duct (of Santorini).

Annular Pancreas: Abnormal bifurcation and circumferential migration of the ventral pancreatic bud forms a ring encircling the 2nd part of the duodenum → neonatal duodenal obstruction with bilious or nonbilious vomiting and classic "double bubble" sign on abdominal X-ray!

Ischemic Colitis Watershed Territories

Griffith Point & Sudeck Point

Watershed zones are borderland areas located at the extreme periphery of adjacent arterial supply territories. Highly susceptible to hypoperfusion and nonocclusive ischemic colitis during systemic shock or hypotension:

Griffith Point (Splenic Flexure): Watershed boundary between the Superior Mesenteric Artery (SMA) (middle colic a.) and Inferior Mesenteric Artery (IMA) (left colic a.).
Sudeck Point (Rectosigmoid Junction): Watershed boundary between the lowest sigmoidal branch of the IMA and the Superior Rectal Artery (with internal iliac collateral supply).

Clinical Vignette: Elderly patient after severe sepsis or CABG develops sudden cramping lower abdominal pain followed by hematochezia. Endoscopy reveals cyanotic, ulcerated mucosa at splenic flexure.

Anorectal Watershed Division

Pectinate (Dentate) Line Neurovascular & Pathologic Master Matrix

Endoderm vs Ectoderm • Portal vs Caval • Visceral vs Somatic

Anatomic Feature	Above Pectinate Line (Hindgut / Endoderm)	Below Pectinate Line (Proctodeum / Ectoderm)
Embryologic Origin	Hindgut (Endoderm)	Proctodeum (Surface Ectoderm)
Epithelial Lining	Columnar epithelium (glandular mucosa)	Stratified squamous non-keratinized → keratinized skin
Arterial Supply	Superior rectal artery (terminal branch of Inferior Mesenteric Artery, IMA)	Inferior rectal artery (branch of internal pudendal artery ← internal iliac artery)
Venous Drainage	Superior rectal vein → IMV → Splenic vein → Portal Vein (Portal circulation)	Inferior rectal vein → Internal pudendal vein → Internal iliac vein → IVC (Systemic circulation)
Lymphatic Drainage	Internal iliac lymph nodes & Inferior mesenteric nodes	Superficial inguinal lymph nodes (palpable groin adenopathy)
Nerve Innervation	Visceral Autonomic Innervation: Inferior hypogastric plexus. Insensitive to somatic pain, temperature, or touch; sensitive ONLY to stretch/distension.	Somatic Sensory Innervation: Inferior rectal nerve (branch of Pudendal nerve S2–S4). Exquisitely sensitive to pain, cutting, touch, and temperature!
Hemorrhoid Pathology	Internal Hemorrhoids: Dilation of superior rectal venous plexus. Manifest as painless bright red bleeding and mucosal prolapse (can be banded without anesthesia).	External Hemorrhoids: Dilation of inferior rectal venous plexus. Thrombosis causes exquisite, agonizing, sharp somatic pain (covered by somatic skin).
Malignancy Type	Adenocarcinoma (colorectal lineage)	Squamous Cell Carcinoma (HPV-associated, HPV 16/18)
Anal Fissure Location	N/A	Tear in anoderm distal to pectinate line, classically in posterior midline due to poor vascular perfusion. Extremely painful with bowel movements; leads to sentinel skin tag and hypertrophied anal papilla.

Pelvic Neuroanatomy & Retroperitoneal Boundaries

Obstetric nerve blocks, autonomic sexual reflexes, and retroperitoneal organ topography.

Pudendal Nerve Block (S2–S4)

Obstetric Anesthesia

Landmark: Palpated transvaginally at the Ischial Spine through the sacrospinous ligament. Pudendal nerve exits greater sciatic foramen, crosses ischial spine, enters lesser sciatic foramen through pudendal (Alcock) canal.

Innervation: Sensation to perineum, vulva, lower vagina, and external anal sphincter; motor to levator ani and external urethral/anal sphincters. Anesthetizes perineum during episiotomy.

Autonomics: "Point and Shoot"

Erection & Ejaculation

Point = Parasympathetic (S2–S4 Pelvic Splanchnic Nerves): Nitric oxide → cGMP → cavernous helicine artery relaxation → engorgement & erection. Sildenafil inhibits PDE-5 to preserve cGMP.

Shoot = Sympathetic (T11–L2 Hypogastric Nerves): Alpha-1 adrenergic stimulation contracts vas deferens and seminal vesicles → emission and ejaculation.

Retroperitoneal Organs ("SAD PUCKER")

Peritoneal Reflection

Surgical Landmark: "Water under the bridge": Ureter passes UNDER the uterine artery in females and under vas deferens in males!

Thoracic Surgical Anatomy

Thoracic Wall Layer Hierarchy & Intercostal Neurovascular Topography

Thoracentesis & Tube Thoracostomy Safe Zones

Complete 9-Layer Cross-Section (Superficial to Deep)

Skin: Epidermis and dermis; provides cutaneous sensation via intercostal lateral and anterior cutaneous nerve branches.

Superficial Fascia: Subcutaneous areolar tissue containing superficial vessels and mammary gland tissue in females.

External Intercostal Muscle: Fibers run inferomedially ("hands in pockets"); active during inspiration. Replaced anteriorly by the thin external intercostal membrane from costochondral junctions to sternum.

Internal Intercostal Muscle: Fibers run inferolaterally (perpendicular to external); active during forced expiration. Replaced posteriorly by the internal intercostal membrane medial to the rib angles.

Innermost Intercostal Muscle: Deepest muscle layer; includes lateral innermost intercostals, posterior subcostalis (spanning 2–3 ribs), and anterior transversus thoracis.

Intercostal Neurovascular Plane (VAN): Located between the internal intercostal and innermost intercostal muscle layers in the subcostal groove along the inferior edge of the rib. Superior-to-inferior order: V – A – N (Intercostal Vein, Artery, Nerve).

Endothoracic Fascia: Thin fibroareolar cleavage plane separating chest wall musculature and ribs from the parietal pleura (essential surgical plane for extrapleural mobilization).

Parietal Pleura (Costal): Somatosensory pain-sensitive serous layer innervated by intercostal nerves (sharp, localized pleuritic pain).

Pleural Space & Visceral Pleura: Potential space containing 5–15 mL of serous lubricant; visceral pleura adheres tightly to lung parenchyma (autonomic innervation only; insensitive to sharp pain).

Thoracentesis Landmark Protocol

Safe Needle Entry

Needle Placement Rule: The needle is ALWAYS inserted directly OVER the superior border of the rib below to avoid the primary intercostal neurovascular bundle (VAN) sheltered in the subcostal groove of the rib above.

Midclavicular Line: Ribs 6–8 (costodiaphragmatic recess fluid collection).

Midaxillary Line: Ribs 8–10 (standard lateral diagnostic tap level).

Paravertebral / Midscapular Line: Ribs 10–12 (posterior fluid pooling).

Critical Board Danger: Needle insertion below the 9th intercostal space during expiration carries a high risk of traversing the diaphragm and lacerating abdominal viscera (liver on right, spleen on left).

Tube Thoracostomy: "Safe Triangle"

Chest Tube Insertion

Indicated for hemothorax, large pneumothorax, or empyema. Insertion is restricted to the "Safe Triangle" to avoid long thoracic nerve, internal thoracic vessels, and diaphragm injury:

Anterior Border: Lateral edge of Pectoralis Major muscle.
Posterior Border: Anterior edge of Latissimus Dorsi muscle.
Inferior Border: Horizontal line at the 5th intercostal space (nipple line / inframammary crease).
Apex: Base of axilla.

Vascular Collateral Dynamics

Internal Thoracic Artery Bifurcation & Caval-Caval Venous Bypasses

CABG Conduit & Coarctation Bypass

Internal Thoracic Artery (ITA / LIMA)

1st Part Subclavian

Originates from the 1st part of the subclavian artery, descends 1–2 cm lateral to the sternum behind the upper 6 costal cartilages.

Bifurcation at 6th Intercostal Space into:

Superior Epigastric Artery: Pierces diaphragm between sternal and costal slips, enters rectus sheath behind rectus abdominis.
Musculophrenic Artery: Traverses along costal margin, supplies diaphragm and 7th–9th intercostal spaces.

Coronary Bypass (CABG): The Left Internal Mammary Artery (LIMA) is the gold-standard conduit for grafting the Left Anterior Descending (LAD) coronary artery due to superior 10-year patency (>90%).

Systemic Arterial Collateral Bypasses

Epigastric Shunt

Superior vs. Inferior Epigastric Anastomosis: Inside the rectus sheath, the Superior Epigastric Artery (from ITA → subclavian) forms an extensive end-to-end anastomosis with the Inferior Epigastric Artery (from External Iliac Artery).

Coarctation of the Aorta: In post-ductal coarctation, high subclavian pressure drives blood through ITA → anterior intercostals and superior epigastric → inferior epigastric → external iliac → lower extremities. Dilated, tortuous intercostal arteries erode inferior rib margins producing notching of ribs 3–8 ("Roesler sign").

Leriche Syndrome (Aortoiliac Occlusion): Blood flows retrograde from ITA → superior epigastric → inferior epigastric → distal iliofemoral beds.

Azygos & Hemiazygos Venous System

Caval-Caval Shunt

Forms a posterior thoracic venous conduit connecting the Inferior Vena Cava (IVC) and Superior Vena Cava (SVC):

Azygos Vein: Ascends on the right side of thoracic vertebral bodies, arches over the right lung root at T4 to drain directly into the SVC.
Hemiazygos Vein: Ascends on left lower thorax (T9–T12), crosses right behind aorta/esophagus at T9 to join azygos.
Accessory Hemiazygos: Drains left mid-thorax (T5–T8), crosses right at T8.

IVC / SVC Obstruction: If IVC is compressed (Budd-Chiari, retroperitoneal mass) or SVC is obstructed (mediastinal lymphoma, bronchogenic carcinoma), blood flows through the azygos venous system to bypass the occlusion and reach the right atrium.

Thoracoabdominal Junction

Diaphragmatic Crura, Arcuate Ligaments & Arterial Supply

Median Arcuate Compression Syndrome

Right vs. Left Crural Topography & Arcuate Ligaments

Right Crus (L1–L3): Larger and longer than left; arises from anterolateral bodies of L1–L3 vertebrae and IV discs. Its muscular fibers split to surround the esophagus at the T10 hiatus, acting as a physiological sphincter augmenting the lower esophageal sphincter (LES) to prevent acid reflux.

Left Crus (L1–L2): Smaller and shorter; arises from anterolateral bodies of L1–L2 vertebrae only.

Arcuate Ligaments:

Median Arcuate Ligament: Fibrous arch bridging the right and left crura anterior to the abdominal aorta at T12. Compression of the celiac axis = Median Arcuate Ligament Syndrome (MALS): postprandial abdominal angina and epigastric bruit.
Medial Arcuate Ligament: Thickening of fascia over the Psoas Major muscle (anchors to L1/L2 body and transverse process).
Lateral Arcuate Ligament: Thickening of fascia over the Quadratus Lumborum muscle (anchors to L1 transverse process and 12th rib).

Tri-Source Arterial Supply of the Diaphragm

Because of its complex embryological origin from 4 embryonic precursors, the diaphragm receives blood from three distinct arterial pathways:

Primary Supply

Inferior Phrenic Arteries (Direct from Abdominal Aorta)

Pair of vessels arising directly from the anterior surface of the abdominal aorta immediately above the celiac trunk. Supplies the vast majority of the abdominal (inferior) surface of the diaphragm, also giving off the superior suprarenal arteries to adrenal glands.

Internal Thoracic Branches

Pericardiacophrenic & Musculophrenic Arteries

Pericardiacophrenic: Accompanies the phrenic nerve between fibrous pericardium and mediastinal pleura, supplying central diaphragm and pericardium. Musculophrenic: Terminal branch of ITA supplying costal periphery of diaphragm.

Thoracic Aorta Branches

Superior Phrenic Arteries

Small paired branches from the lowermost thoracic aorta supplying the posterior superior dome of the diaphragm.

Pulmonary Architecture & Oncology Topography

Bronchopulmonary Segment Hierarchy & Contralateral Lymphatic Crossover

Left Lower Lobe Metastasis Trap

Segmental Autonomy & Surgical Segmentectomy

10 Right vs. 8–10 Left

A bronchopulmonary segment is the functional and anatomical sub-unit of the lung, surrounded by connective tissue septa.

Central Structures (Intrasegmental): Each segment has its own dedicated tertiary segmental bronchus and segmental branch of the pulmonary artery running centrally together into the segment apex.

Peripheral Structures (Intersegmental): The pulmonary veins and lymphatic drainage run in the connective tissue septa BETWEEN adjacent segments.

Surgical Cleavage Plane: Because veins run between segments, a thoracic surgeon can resect a diseased bronchopulmonary segment (segmentectomy) without compromising the arterial supply or ventilation of adjacent healthy segments!

Aspiration Predilection: Supine aspiration travels preferentially to the superior segment of the right lower lobe or posterior segment of upper lobe. Upright aspiration travels to the posterior basal segment of the right lower lobe (due to more vertical, wider right main bronchus).

Contralateral Lymphatic Drainage Pattern (Board Trap!)

Metastatic Crossover

Pulmonary lymph flows from deep intrapulmonary nodes → bronchopulmonary (hilar) nodes → tracheobronchial (carinal) nodes → paratracheal nodes → broncho-mediastinal lymph trunks:

Right Lung (All 3 Lobes): Drains entirely into right tracheobronchial nodes → right paratracheal nodes → right broncho-mediastinal trunk → Right Lymphatic Duct (enters right venous angle).

Left Superior Lobe (Upper Lobe + Lingula): Drains to left tracheobronchial nodes → left paratracheal nodes → left broncho-mediastinal trunk → Thoracic Duct (enters left venous angle).

HIGH-YIELD BOARD TRAP: Left Inferior Lobe Crossover Lymph from the Left Lower Lobe crosses the midline at the carina into the RIGHT tracheobronchial and RIGHT paratracheal nodes, ultimately draining via the RIGHT Lymphatic Duct!

A primary bronchogenic carcinoma in the left lower lobe frequently presents with contralateral right-sided mediastinal lymphadenopathy and right supraclavicular adenopathy.

Spinal Neuroanatomy & Myelopathy

Spinal Cord Tracts, Cross-Sectional Lesions & Radiculopathy Matrix

Ascending and descending tract cross-sections, classic myelopathy syndromes (Brown-Séquard, Syrinx, SCD, ASA occlusion), and C5–S4 radicular localization.

Myelopathy Topography

Spinal Cord Lesion Syndromes Master Matrix

Brown-Séquard • Syringomyelia • SCD • ASA Infarction • ALS

Syndrome	Anatomic Structures Damaged	Motor Clinical Manifestations	Sensory Clinical Manifestations	High-Yield Board Concept
Brown-Séquard Syndrome (Hemisection)	Unilateral hemisection of cord (stab wound, bullet, asymmetric tumor/disc)	Ipsilateral UMN paralysis below lesion (lateral corticospinal tract). Ipsilateral LMN flaccid paralysis at the exact level of the lesion (anterior horn).	Ipsilateral loss of vibration & proprioception below lesion (dorsal columns). Contralateral loss of pain & temperature beginning 1–2 dermatomal segments BELOW lesion (spinothalamic).	Classic exam trap: Spinothalamic tract fibers cross 1–2 segments above entry, so contralateral pain/temp loss starts 2 levels below physical lesion!
Syringomyelia (Syrinx)	Fluid-filled cavity expanding within central canal, compressing Anterior White Commissure first	Late extension into anterior horns causes hand muscle atrophy and LMN weakness.	Bilateral "cape-like" loss of pain & temperature across shoulders and upper arms. Fine touch, vibration, and proprioception are SPARED (dorsal columns preserved!).	Strongly associated with Chiari I malformation (downward herniation of cerebellar tonsils >5mm through foramen magnum). Patient burns hands without feeling pain.
Subacute Combined Degeneration (SCD)	Vitamin B12 (Cobalamin) deficiency, Vitamin E deficiency, or Copper deficiency	Bilateral spastic paresis, hyperreflexia, extensor plantar responses (lateral corticospinal tracts).	Bilateral loss of vibration & proprioception with severe sensory ataxia and positive Romberg sign (dorsal columns).	Defective myelin synthesis due to methylmalonyl-CoA accumulation. Differentiated from folate deficiency by elevated methylmalonic acid (MMA) and neurologic deficits!
Anterior Spinal Artery (ASA) Occlusion	Infarction of anterior 2/3 of spinal cord (spares posterior 1/3 supplied by paired posterior spinal arteries)	Sudden bilateral flaccid paraplegia transitioning to spastic paraplegia below lesion level (bilateral corticospinal tracts).	Bilateral loss of pain and temperature below lesion level (spinothalamic tracts). Vibration & Proprioception are COMPLETELY INTACT!	Often occurs during thoracic aortic aneurysm repair disrupting the Artery of Adamkiewicz (great anterior radiculomedullary artery, usually T9–T12).
Amyotrophic Lateral Sclerosis (ALS)	Progressive degeneration of both Upper Motor Neurons (corticospinal) and Lower Motor Neurons (anterior horns / brainstem)	Asymmetric limb weakness, fasciculations, muscle atrophy (LMN) combined with hyperreflexia, spasticity, and Babinski sign (UMN).	NO sensory deficits! (Sensory pathways, bowel/bladder sphincters, and cognitive function completely spared).	Pathology shows TDP-43 cytoplasmic aggregates; 10% familial with SOD1 (superoxide dismutase) mutation. Treat with Riluzole (glutamate antagonist) or Edaravone.
Tabes Dorsalis (Tertiary Syphilis)	Slow progressive demyelination and degeneration of Dorsal Columns and Dorsal Nerve Roots	Motor pathways spared, but severe sensory ataxia causes high-stepping "slapping" gait.	Impaired vibration and joint position sense, sensory ataxia, positive Romberg sign, severe sudden "lightning pains" in legs.	Associated with Argyll Robertson pupils (accommodate but do not react to light: "prostitute's pupil"). Absent deep tendon reflexes (hyporeflexia).

Cross-Sectional Myelopathies DCML • Corticospinal • Spinothalamic • Brown-Séquard • Syrinx • ASA

Spinal Cord Tracts, Cross-Sectional Lesions & Radiculopathy

Complete tract decussations (DCML in caudal medulla, Corticospinal in pyramids, Spinothalamic via anterior white commissure in spinal cord) and classic myelopathies: Brown-Séquard hemisection, Anterior Spinal Artery infarct (dorsal column sparing), Syringomyelia cape-like loss, and posterolateral lumbar disc herniation transiting root impingement.

Board Pearl: Anterior Spinal Artery infarction SPARES the dorsal columns (vibration and proprioception preserved) because the posterior 1/3 of the cord is fed by paired posterior spinal arteries.

Nerve Root Localization

Cervical & Lumbosacral Radiculopathy Matrix

C5 to S4 • Motor, Sensory & Reflexes

Nerve Root	Disc Herniation Level	Key Motor Weakness	Sensory Dermatome Loss	Deep Tendon Reflex Tested
C5	C4–C5 disc (C5 nerve root exits ABOVE C5 vertebra)	Deltoid (shoulder abduction) and Biceps	Lateral upper arm / shoulder (sergeant's badge area)	Biceps Reflex (C5, C6)
C6	C5–C6 disc	Biceps and Wrist Extensors (extensor carpi radialis)	Lateral forearm, thumb, and index finger	Brachioradialis Reflex (C5, C6)
C7	C6–C7 disc (most common cervical radiculopathy!)	Triceps (elbow extension), Wrist flexors, Finger extension	Middle finger (palmar and dorsal)	Triceps Reflex (C7, C8)
C8	C7–T1 disc (C8 exits between C7 and T1)	Finger flexors (grip strength: flexor digitorum profundus)	Medial forearm, ring finger, and little finger (5th digit)	None
T1	T1–T2 disc	Intrinsic hand muscles (interossei: abduction/adduction of fingers)	Medial upper arm	None
L4	L3–L4 disc (paracentral herniation compresses transiting L4 root)	Tibialis Anterior (ankle dorsiflexion and foot inversion), Quadriceps	Medial lower leg, anterior knee, and medial malleolus	Patellar (Knee-Jerk) Reflex (L2, L3, L4)
L5	L4–L5 disc (most common lumbar radiculopathy!)	Extensor Hallucis Longus (great toe dorsiflexion), Gluteus medius	Dorsum of foot, 1st webspace, and lateral calf	None (or medial hamstring)
S1	L5–S1 disc	Gastrocnemius & Soleus (plantarflexion: inability to walk on toes), Gluteus max	Lateral malleolus, lateral foot, and sole (plantar surface)	Achilles (Ankle-Jerk) Reflex (S1, S2)
S2–S4	Massive central disc herniation / tumor (Cauda Equina)	Anal sphincter tone loss, urinary retention / overflow incontinence	Saddle anesthesia (perianal, perineum, buttocks, posterior thigh)	Bulbocavernosus & Anal Wink Reflex (S3, S4)

Neurologic Physical Exam Landmarks

High-Yield Clinical Dermatome Landmarks (C2 to S4)

Essential Board Mnemonics

Occiput

Posterior skull and occipital protuberance.

Turtleneck

High turtleneck shirt collar area.

Low Collar

Low collar shirt line; acromioclavicular joint.

Thumb ("Six-Shooter")

Thumb & radial forearm (make gun with hand = 6).

Middle Finger

Middle finger (palmar and dorsal surfaces).

Pinky Finger

Ring and little fingers (4th and 5th digits).

Nipple Line

"Teat-4" = at the horizontal nipple line.

Xiphoid

Inferior margin of sternal xiphoid process.

T10

Umbilicus

"Belly but-ten" = early appendicitis pain.

Inguinal Ligament

"L1 = 1nguinal" groove / pelvic crease.

Kneecaps

"Down on all 4s" = anterior patella & medial malleolus.

Pinky Toe & Heel

Lateral malleolus, small toe, and Achilles reflex.

S2–S4 Saddle & Perineum: "S2, 3, 4 keep the poop off the floor" • Perianal sensation, bulbocavernosus reflex, and parasympathetic penile erection.

Vertebral Kinematics & Morphology

Developmental Curvatures, Uncovertebral Joints & Scottie Dog Radiography

Primary vs. Secondary Curves • Luschka Spurring • Oblique Lumbar X-ray

Embryology & Biomechanics

Primary Kyphoses vs. Secondary Lordoses

Primary Curvatures (Kyphosis, concave anteriorly): Thoracic and Sacral curvatures. Present at birth, reflecting original fetal flexed posture ("C-shape"). Maintained by anterior wedging of thoracic vertebral bodies.

Secondary Curvatures (Lordosis, concave posteriorly):
• Cervical Lordosis: Develops at 3–4 months when infant begins holding head erect.
• Lumbar Lordosis: Develops at 12–18 months when toddler begins upright standing and weight-bearing ambulation.

Cervical Spine Degeneration

Uncovertebral Joints of Luschka (C3–C7)

Formed during childhood (around age 7–10) between the uncinate processes projecting superiorly from lateral margins of cervical vertebral bodies and the beveled inferolateral margins of the adjacent vertebra above.

Cervical Radiculopathy: Hypertrophic osteophyte spurring of uncinate processes encroaches into the intervertebral foramen, compressing the exiting cervical spinal nerve root (e.g., C6 spur compressing C6 nerve root → brachioradialis reflex loss and thumb numbness).

Oblique Lumbar Radiograph

The "Scottie Dog" Anatomic Correlation

• Nose: Transverse process

• Eye: Pedicle

• Ear: Superior articular process

• Neck: Pars interarticularis (isthmus)

• Front Leg: Inferior articular process

• Body: Lamina and spinous process

Spondylolysis: Stress fracture of the pars interarticularis appears as a radiolucent "collar" around the Scottie dog's neck. Bilateral fracture leads to spondylolisthesis ("decapitated Scottie dog").

Vertebral Architecture & Spinal Biomechanics

Atypical Vertebrae, Craniocervical Ligaments & High-Vulnerability Transition Zones

C1–C2 Subluxation & Spondylolisthesis

Atypical Cervical Vertebrae (C1, C2, C7)

C1: Atlas (Ring-Like Structure) No Body • No Spinous Process

Composed of paired lateral masses connected by short anterior and longer posterior arches. Superior articular facets are concave and kidney-shaped, articulating with occipital condyles (atlanto-occipital joint: permits "yes" nodding flexion/extension). Transverse foramen transmits the vertebral artery and venous plexus.

Jefferson (Burst) Fracture: Axial load on vertex of skull (e.g., diving into shallow pool) forces lateral masses outward, rupturing the anterior and posterior arches of C1.

C2: Axis (Epistropheus) Dens (Odontoid Process)

Strongest cervical vertebra. The dens (odontoid process) projects superiorly from the body to serve as the pivot axis around which C1 rotates (atlantoaxial joint: permits "no" shaking rotation).

Transverse Ligament of Atlas: Spans between lateral masses behind the dens, holding the dens securely against the anterior arch of C1. Laxity/rupture in Rheumatoid Arthritis or Down Syndrome (Trisomy 21) causes atlantoaxial subluxation → compression of upper cervical spinal cord/medulla → quadriparesis or fatal respiratory arrest!

C7: Vertebra Prominens Longest Spinous Process

Characterized by a prominent, long, non-bifid spinous process that is easily palpable at the base of the neck. Universal surface landmark used by clinicians to count vertebral levels.

Clay-Shoveler's Fracture: Avulsion fracture of the C6/C7 or T1 spinous process due to forceful traction of the trapezius and rhomboids during sudden heavy lifting.

High-Vulnerability Spinal Transition Zones

Spinal transition junctions represent abrupt biomechanical boundaries between mobile, lordotic segments and rigid, kyphotic segments, concentrating rotational shear and axial load:

Cervicothoracic Junction (C7–T1) Cervical Lordosis → Thoracic Kyphosis

Transition from hypermobile cervical lordosis (coronal oblique facets allowing multidirectional movement) to the rigid, rib-cage-anchored thoracic kyphosis. Prone to missed fracture-dislocations on plain radiographs unless visualized via "Swimmer's view" or CT.

Thoracolumbar Junction (T12–L1) Rotational → Sagittal Facet Shift

Abrupt Facet Orientation Shift: Thoracic facets lie in the coronal plane (permitting axial rotation while limiting flexion/extension). At T12–L1, facets abruptly shift to the sagittal plane (permitting flexion/extension while blocking rotation).

Clinical Consequence: Over 50% of all spinal compression fractures and Chance fractures (seatbelt hyperflexion-distraction injury) occur at T12–L1 due to stress concentration where a rigid rotatory column meets a mobile sagittal hinge.

Lumbosacral Junction (L5–S1) Shear Stress & Spondylolisthesis

The lordotic wedge-shaped L5 vertebral body rests on the downward-sloping sacral promontory, subjecting L5 to enormous continuous anterior gravitational shear stress.

Spondylolysis vs. Spondylolisthesis: Repetitive hyperextension (gymnasts, football linemen) fractures the pars interarticularis ("collar on the Scottie dog") → bilaterally leads to isthmic spondylolisthesis (anterior subluxation of L5 on S1), compressing the exiting L5 or traversing S1 nerve root.

Radicular Mechanics

Intervertebral Disc Herniation: Exiting vs. Traversing Root Localization

Cervical Exit Above • Lumbar Exit Below • Posterolateral vs Far Lateral

Cervical Spine: Exit ABOVE Rule

C1–C8 Roots

The Rule: There are 7 cervical vertebrae and 8 cervical spinal nerves. C1 through C7 nerve roots exit ABOVE their correspondingly numbered vertebra (C1 exits above C1, C5 exits above C5, C7 exits above C7). The C8 nerve root exits BELOW C7 (between C7 and T1).

C5–C6 Disc Herniation: Impinges the C6 nerve root → Weakness of biceps and brachioradialis (elbow flexion/pronation), diminished brachioradialis reflex, numbness over the lateral forearm and thumb.

C6–C7 Disc Herniation: Impinges the C7 nerve root → Weakness of triceps (elbow extension) and wrist flexors, diminished triceps reflex, numbness over middle finger.

Lumbar Spine: Exit BELOW & Herniation Vectors

Posterolateral vs Far Lateral

The Rule: Thoracic, lumbar, and sacral nerve roots exit BELOW their correspondingly numbered pedicle/vertebra (L4 exits below L4 pedicle through the L4–L5 neural foramen).

Posterolateral Herniation (95% of cases): Impinges the TRAVERSING nerve root (the nerve passing down to exit at the foramen below).
• L4–L5 Posterolateral Herniation: Impinges L5 → Foot drop, weakness of ankle dorsiflexion (tibialis anterior) and great toe extension (EHL), sensory loss over dorsal foot and web space between digits 1 and 2. Reflexes remain normal!
• L5–S1 Posterolateral Herniation: Impinges S1 → Weakness of gastrocnemius/soleus (cannot walk on tiptoes, impaired plantarflexion), diminished or absent Achilles reflex, sensory loss over lateral foot and sole.

Far Lateral / Foraminal Herniation (5% of cases): Protrudes directly into the neural foramen and impinges the EXITING nerve root.
• Far lateral L4–L5 Herniation: Impinges L4 → Quadriceps weakness (difficulty rising from chair), diminished or absent patellar tendon reflex, numbness over medial lower leg and medial malleolus.

Vertebral Ligamentology & Procedural Anatomy

Spinal Ligament Architecture & Lumbar Puncture Trajectory

ALL • PLL • Flavum • Interspinous • Supraspinous • L3–L5 Entry

Longitudinal & Segmental Ligaments

Anterior Longitudinal Ligament (ALL): Broad, thick, fibrous band covering the anterior surfaces of vertebral bodies from occiput to sacrum. Resists hyperextension of the vertebral column. Only spinal ligament torn in severe whiplash hyperextension injuries!
Posterior Longitudinal Ligament (PLL): Runs along the anterior wall of the vertebral canal (posterior surfaces of vertebral bodies). Resists hyperflexion. Narrower and weaker in the lumbar spine, leaving the posterolateral annulus fibrosus unsupported → primary mechanical reason why >95% of disc herniations occur posterolaterally!
Ligamentum Flavum: Dense, yellow elastic tissue connecting the laminae of adjacent vertebrae. Preserves upright posture and assists spinal extension. Traversed during epidural anesthesia and LP; provides the tactile 'pop' or sudden loss of resistance.
Interspinous Ligaments: Connect adjacent spinous processes from root to apex.
Supraspinous Ligament: Strong fibrous cord connecting the tips of spinous processes from C7 to sacrum; merges cranially into the ligamentum nuchae.

Lumbar Puncture 7-Layer Needle Path (L3–L4 / L4–L5)

To harvest CSF safely without injuring the spinal cord, the needle is introduced at the L3–L4 or L4–L5 interspace (guided by the intercristal / Tuffier's line connecting the iliac crests). The conus medullaris ends at L1–L2 in adults (L3 in infants).

1. Skin

2. Subcutaneous fat / superficial fascia

3. Supraspinous ligament

4. Interspinous ligament

5. Ligamentum flavum ← First tactile "pop" / loss of resistance

6. Epidural space (site of epidural block; contains internal vertebral plexus)

7. Dura mater + Arachnoid mater ← Second subtle "pop" into CSF

8. Subarachnoid space (CSF reservoir; cauda equina nerve roots float away)

*Note: The pia mater is intimately adherent to the neural tissue and is NEVER penetrated in a standard lumbar puncture.

Osteopathic Neuromusculoskeletal Correlates

COMLEX DO MSK Biomechanics, Sacral Axes & Viscerosomatics

High-yield functional biomechanics essential for COMLEX Level 1 & 2: rib motion mechanics, sacral torsion diagnostics, fibular head entrapment, and autonomic viscerosomatic reflexes.

Thoracic Cage Kinematics

Rib Mechanics, Motion Planes & Somatic Dysfunction

COMLEX Level 1 & 2 Core Track

Ribs 1–5 Sagittal Plane

Pump-Handle Motion

Primary Axis: Coronal (costovertebral-costosternal line). Motion occurs primarily in the sagittal plane, increasing the anteroposterior (AP) diameter of the chest during inhalation.

Palpation: Evaluated at the mid-clavicular line on the anterior rib cage.

Ribs 6–10 Coronal Plane

Bucket-Handle Motion

Primary Axis: Sagittal (AP line). Motion occurs primarily in the coronal plane, increasing the transverse diameter of the thoracic cage during inhalation.

Palpation: Evaluated at the mid-axillary line laterally.

Ribs 11–12 Transverse Plane

Caliper Motion

Primary Axis: Vertical. Floating ribs move outward and posterior during inhalation, and inward and anterior during exhalation.

Palpation: Evaluated posteriorly along the lower rib cage margins.

Key Rib Identification Rules

Inhalation Dysfunction (Stuck UP): Ribs move freely into inhalation but are restricted in exhalation. The KEY RIB is the LOWEST rib in the dysfunctional group (it prevents the ribs above it from descending).

Exhalation Dysfunction (Stuck DOWN): Ribs move freely into exhalation but are restricted in inhalation. The KEY RIB is the HIGHEST rib in the dysfunctional group (it blocks the ribs below it from ascending).

Muscle Energy Target Activation Muscles

Rib 1: Anterior and Middle Scalenes
Rib 2: Posterior Scalene
Ribs 3–5: Pectoralis Minor
Ribs 6–9: Serratus Anterior
Ribs 10–11: Latissimus Dorsi
Rib 12: Quadratus Lumborum

COMLEX Kinematics

Rib Motion Mechanics (Pump, Bucket, Caliper) & Sacral Torsions

Inhalation/Exhalation Key Rib • Forward vs Backward Torsions

Rib Motion Kinematics and Sacral Torsions

Pelvic Kinematics

Sacral Axes, Torsions & L5 Relationship

Spring Test • Sphinx Test • L5 Rules

Sacral Diagnosis	Type	Lumbosacral Spring Test	Sphinx (Hyperextension) Test	L5 Rotation & Sidebending Rules
Left-on-Left (L on L) Forward Torsion	Forward (Physiologic)	Negative (Good spring)	Negative (Asymmetry improves in extension)	L5 rotates OPPOSITE to sacral rotation (L5 rotated Right, Sidebent Left). Sacral base anterior on Right.
Right-on-Right (R on R) Forward Torsion	Forward (Physiologic)	Negative (Good spring)	Negative (Asymmetry improves in extension)	L5 rotates OPPOSITE to sacral rotation (L5 rotated Left, Sidebent Right). Sacral base anterior on Left.
Right-on-Left (R on L) Backward Torsion	Backward (Non-Physiologic)	Positive (Poor / No spring)	Positive (Asymmetry worsens in extension)	L5 rotates in the SAME DIRECTION as sacral rotation (L5 rotated Right, Sidebent Left). Sacral base posterior on Right.
Left-on-Right (L on R) Backward Torsion	Backward (Non-Physiologic)	Positive (Poor / No spring)	Positive (Asymmetry worsens in extension)	L5 rotates in the SAME DIRECTION as sacral rotation (L5 rotated Left, Sidebent Right). Sacral base posterior on Left.

Fibular Head Biomechanics & Peroneal Entrapment

Direct relationship between fibular head somatic dysfunction and common peroneal nerve compression.

Posterior Fibular Head Dysfunction

High Risk for Foot Drop

Mechanics: Proximal fibular head moves posterior; distal fibula (lateral malleolus) moves anterior. The ankle and foot prefer plantarflexion and inversion (supination injury / inverted ankle sprain).

Nerve Vulnerability: The Common Peroneal (Fibular) Nerve wraps around the neck of the fibula; posterior displacement puts traction or compression on the nerve → foot drop, loss of dorsiflexion, and numbness of foot dorsum.

Anterior Fibular Head Dysfunction

Eversion Preference

Mechanics: Proximal fibular head moves anterior; distal lateral malleolus moves posterior. The ankle and foot prefer dorsiflexion and eversion (pronation injury).

Viscerosomatic Autonomic Reflex Map (T1–L2)

Essential sympathetic spinal levels tested on every COMLEX exam.

Heart: T1–T5 (Left side MI = T1–T5 tissue texture changes)

Lungs & Bronchi: T2–T7 (Asthma, COPD, Pneumonia)

Upper GI (Stomach, Liver, Gallbladder, Spleen): T5–T9 (Celiac Ganglion; Cholecystitis = Right T5–T9)

Middle GI (Small Bowel, Ascending Colon, Kidneys): T10–T11 (Superior Mesenteric Ganglion; Appendicitis = T10)

Lower GI, Bladder, Uterus & Prostate: T12–L2 (Inferior Mesenteric Ganglion & Pelvis)
